EtherWAN EX41941 Hardened Unmanaged 4-Port Gigabit PoE & 1-Port Gigabit RJ45 Ethernet Switch

EtherWAN EX41941 Hardened Unmanaged 4-Port Gigabit PoE & 1-Port Gigabit RJ45 Ethernet Switch moves traffic inside cabinets, roadside enclosures and plant rooms where a commercial switch would not last a season. Port count and media are listed as 5 x 10/100/1000BASE-T(X). Operating temperature is rated at -40 to 167 deg F (-40 to 75 deg C). The housing is aluminum, rated IP30.

One orderable part number, EX41941, listed at the current dealer price. Installation is din-rail or wall/panel mounting. Power input: 48-56VDC Redundant (Terminal block)+ 48-56VDC Power DIN Connector. Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet5 x 10/100/1000BASE-T(X)
Power Consumption2.24W max @ 48VDC, without PoE
PoE Power OutputPer Port: Up to 30W/port | Power Budget: 120W
Casing MaterialAluminum
IP RatingIP30

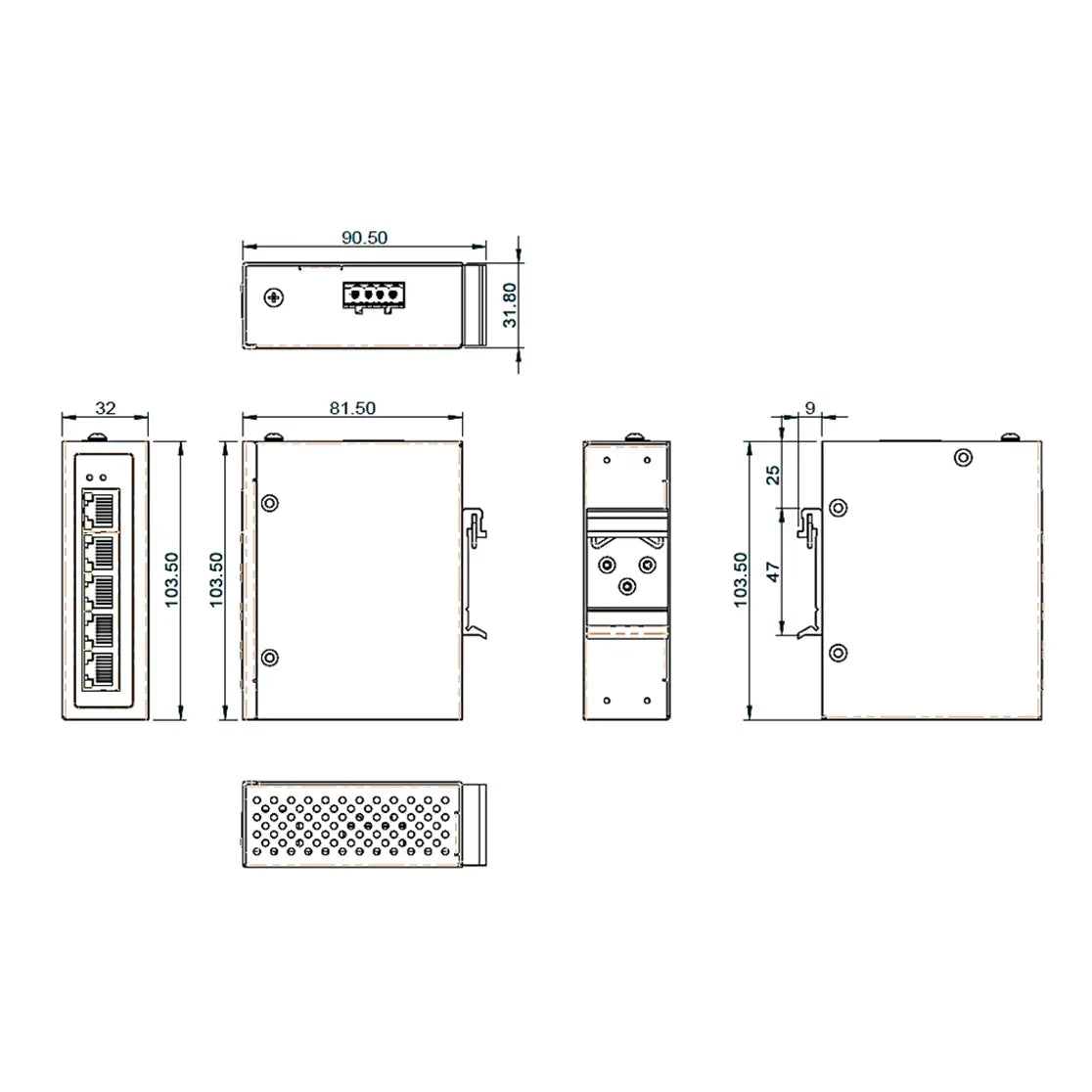

Dimensions1.26" x 3.21" x 4.07" (W x D x H) | 32 x 81.5 x 103.5mm
Weight1.0lbs (0.45kg)
Installation TypeDIN-rail or wall/panel mounting
