EtherWAN EX42395BT Hardened Unmanaged 4-Port Gigabit 90W PoE & 2-Port SFP Combo Ethernet Switch
EtherWAN EX42395BT is a compact, hardened, unmanaged DIN-rail PoE switch built for cabinets and enclosures where a commercial switch would not survive a season. Its 4 gigabit ports deliver up to 90W each on the latest IEEE 802.3bt standard, backward compatible with 802.3af/at devices, for a 240W total power budget.
Two dual-rate gigabit SFP ports add fiber or extra copper reach, with DIP switches controlling SFP speed and the combo port. It is fanless, rated -40 to 75 deg C, and mounts DIN-rail or wall. Specifications above are taken from the EtherWAN/etherwanshop.com listing for this product.
| Ethernet | 4 x 10/100/1000BASE-T(X) PoE, 2 x dual-rate Gigabit SFP combo |
|---|---|
| PoE Power Output | Up to 90W/port (802.3bt) | Power Budget: 240W |
| Casing Material | Aluminum |
| IP Rating | IP30 |

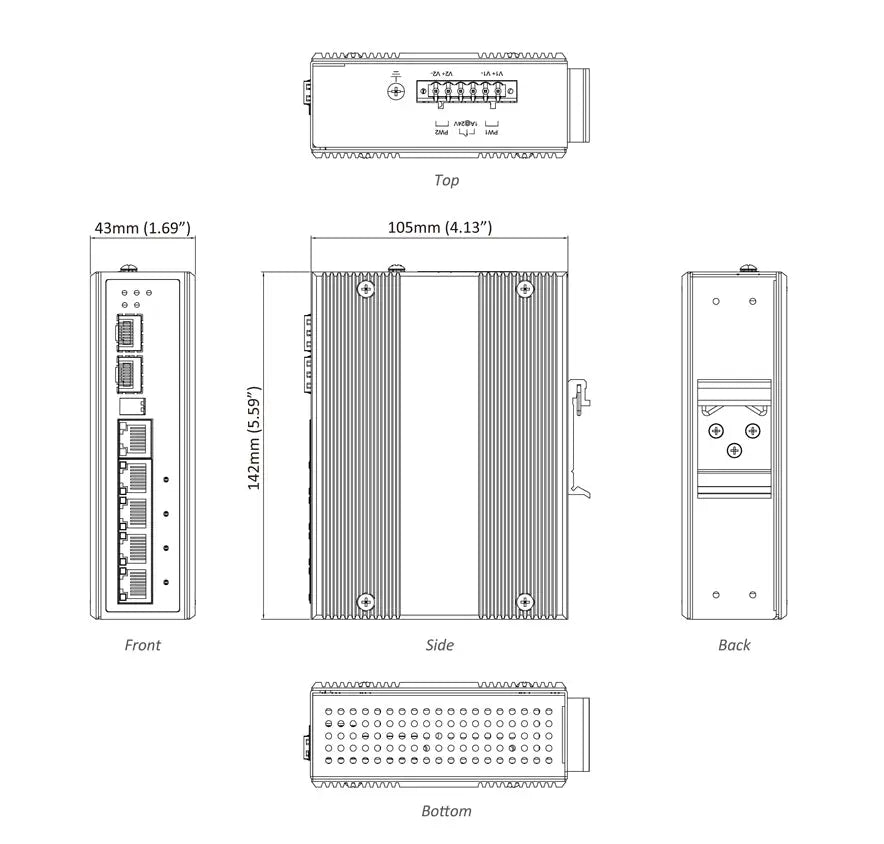

| Dimensions | 43mm x 105mm x 142mm (W x D x H) | 1.69" x 4.13" x 5.59" |
| Weight | 1.5lbs (0.68kg) |
| Installation Type | DIN-rail or wall mounting |
| Operating Temp. | -40 to 75 deg C (-40 to 167 deg F) |
