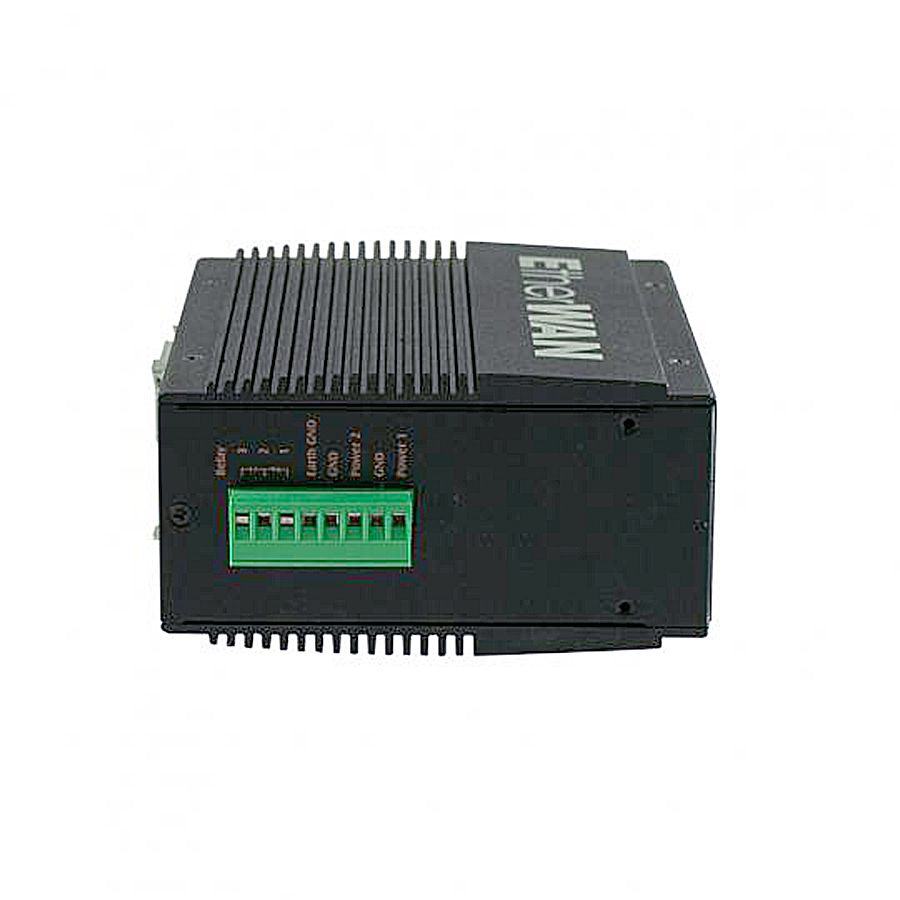

EtherWAN EX46908A-0-J Hardened Unmanaged 8-Port Gigabit PoE & 2-Port SFP Ethernet Switch

EtherWAN EX46908A-0-J is a hardened, unmanaged Gigabit PoE switch for cabinets and enclosures, with 8 copper PoE ports delivering up to 30W per port on a 120W total budget, plus 2 SFP ports for a 1000BASE-X fiber uplink.

It ships in a metal, IP30-rated case, rated -40 to 75 deg C, and mounts DIN-rail, rack or panel with a DIN-rail kit included. Specifications above are taken from the EtherWAN/prodj.com listing for this product.

Ethernet8 x 10/100/1000BASE-T PoE, 2 x 1000BASE-X SFP
PoE Power OutputUp to 30W/port | Power Budget: 120W
Casing MaterialMetal, IP30
Dimensions66.8mm x 125mm x 145mm (W x D x H) | 2.63" x 4.92" x 5.71"
Weight1.3kg (2.86lbs)
Power Input18-57VDC
Installation TypeDIN-rail, rack or panel mounting (DIN-rail kit included)
Operating Temp.-40 to 75 deg C (-40 to 167 deg F)
