EtherWAN EX42395AT Hardened Unmanaged 4-Port Gigabit PoE & 2-Port Gigabit SFP/RJ45 Combo Ethernet Switch

EtherWAN EX42395AT Hardened Unmanaged 4-Port Gigabit PoE & 2-Port Gigabit SFP/RJ45 Combo Ethernet Switch moves traffic inside cabinets, roadside enclosures and plant rooms where a commercial switch would not last a season. Port count and media are listed as 4 x 10/100/1000BASE-T(X); 2 x 100/1000BASE SFP/RJ45. Operating temperature is rated at -40 to 167 deg F (-40 to 75 deg C). The housing is aluminum, rated IP30.

One orderable part number, EX42395AT, listed at the current dealer price. Installation is din-rail or wall/panel mounting. Power input: 48-56VDC Redundant (Terminal block)+ 48-56VDC Power DIN Connector. Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet4 x 10/100/1000BASE-T(X) | 2 x 100/1000BASE SFP/RJ45
Power Consumption5.76W max@48VDC, without PoE
PoE Power OutputPer Port: Up to 30W/port | Power Budget: 120W
Casing MaterialAluminum
IP RatingIP30

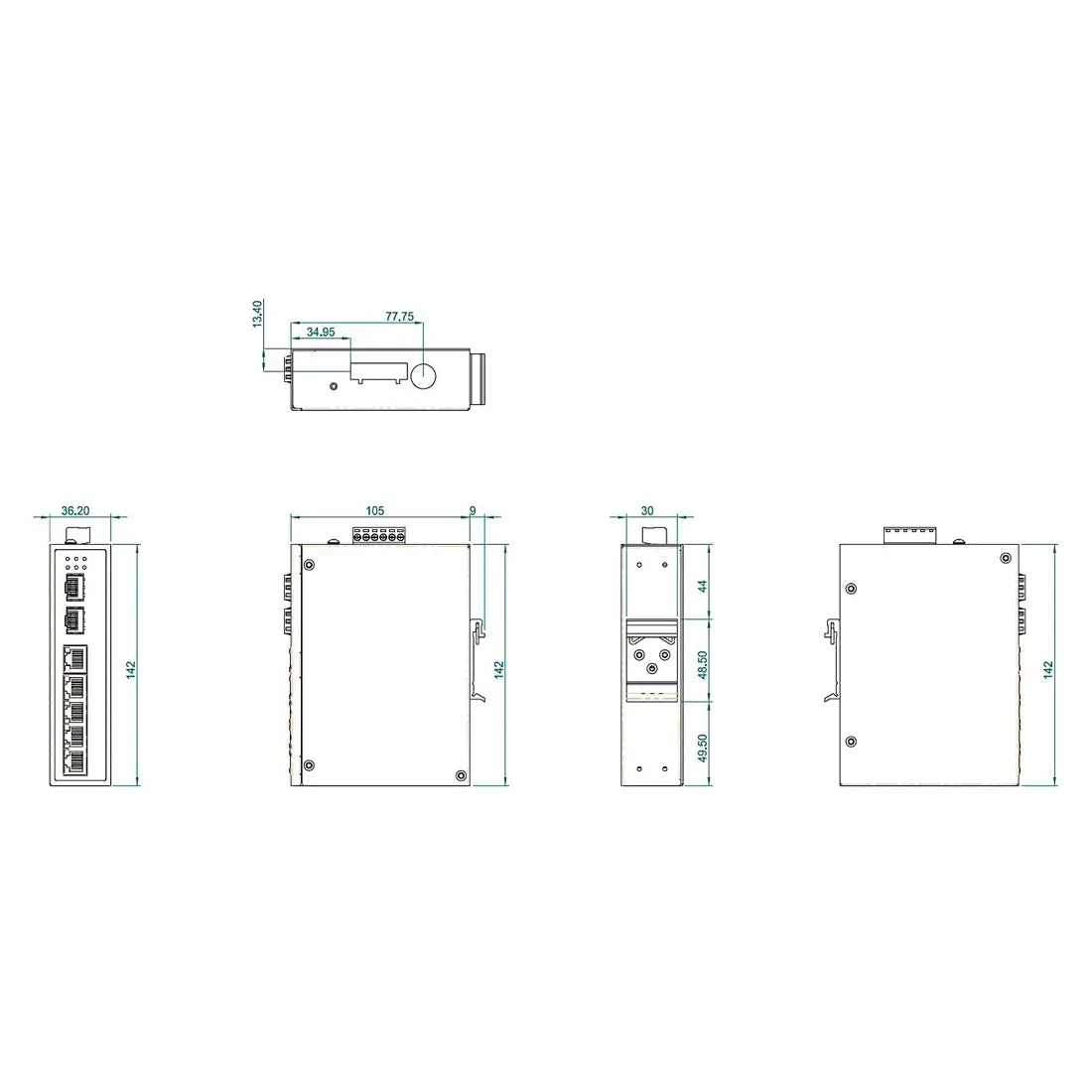

Dimensions1.43" x 4.13" x 5.6" (W x D x H) | 36.2 x 105 x 142mm
Weight1.0lbs (0.45kg)
Installation TypeDIN-rail or wall/panel mounting
