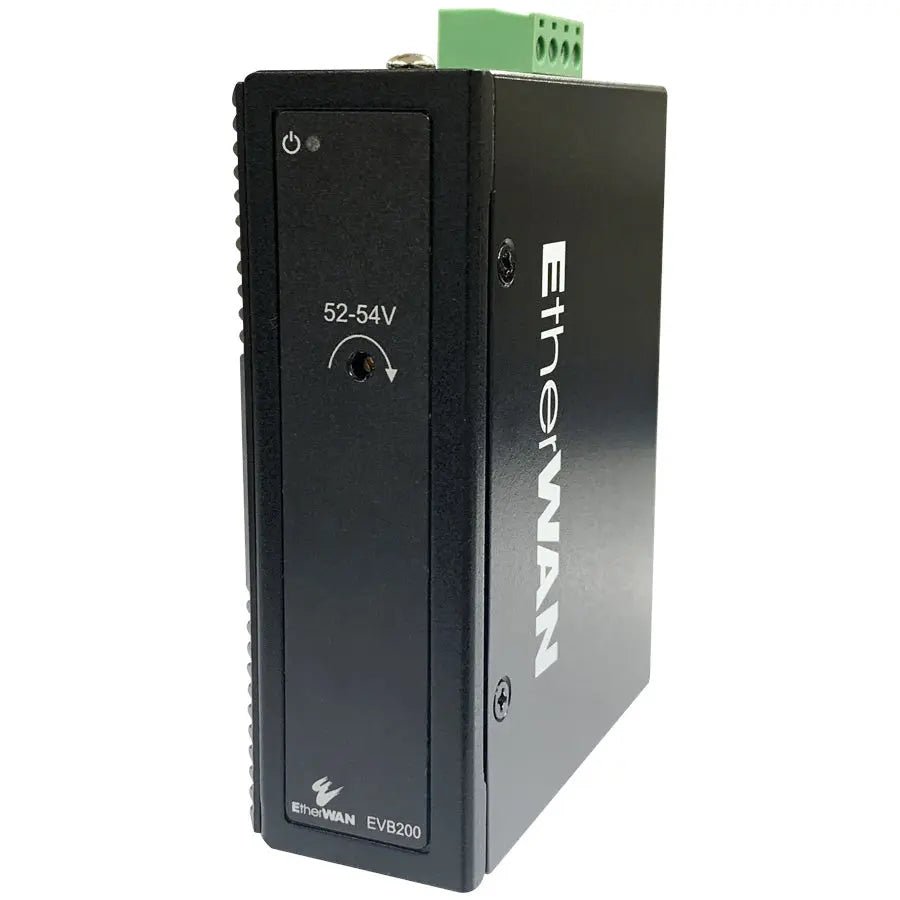

EtherWAN EVB200 Hardened Voltage Booster for PoE Applications

EtherWAN EVB200 Hardened Voltage Booster for PoE Applications is built for installations where connectivity is crucial. Operating temperature is rated at -40 to 167 deg F (-40 to 75 deg C). The housing is rugged metal, rated IP30.

One orderable part number, EVB200, listed at the current dealer price. Installation is din-rail or wall mount. Specifications above are taken from the EtherWAN datasheet for this family.

Casing Material	Rugged Metal
IP Rating	IP30
Dimensions	32 x 81.5 x 103.5mm (W x D x H) \| 1.26" x 3.21" x 4.07"
Weight	0.75lbs (0.34kg)
Installation Type	DIN-rail or wall mount
Operating Temp.	-40 to 167 deg F (-40 to 75 deg C)
Storage Temp.	-49 to 185 deg F (-40 to 85 deg C)
Relative Humidity	5% to 95% (non-condensing)
