EtherWAN EX26484 V2 Series Managed 48-port Gigabit PoE and 4-port 1G/10G SFP+ Ethernet Switch
EtherWAN EX26484 V2 Series Managed 48-port Gigabit PoE and 4-port 1G/10G SFP+ Ethernet Switch moves traffic inside cabinets, roadside enclosures and plant rooms where a commercial switch would not last a season. Port count and media are listed as 10/100/1000BASE-T(X): 48 ports; 1G/10G SFP+: 4 ports. Operating temperature is rated at 0 to 50 deg C (32 to 122 deg F). The housing is aluminum.
This page carries the 2 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Installation is rack mounting. Power input: 100-240VAC. Specifications above are taken from the EtherWAN datasheet for this family.
| Ethernet | 10/100/1000BASE-T(X): 48 ports | 1G/10G SFP+: 4 ports |
|---|---|
| Console | 1 x RJ45 |
| Power Consumption | 37W Max (without PoE) w/ PoE power budget of 450/860W | up to 30W/port Poe power output |
| Casing Material | Aluminum |

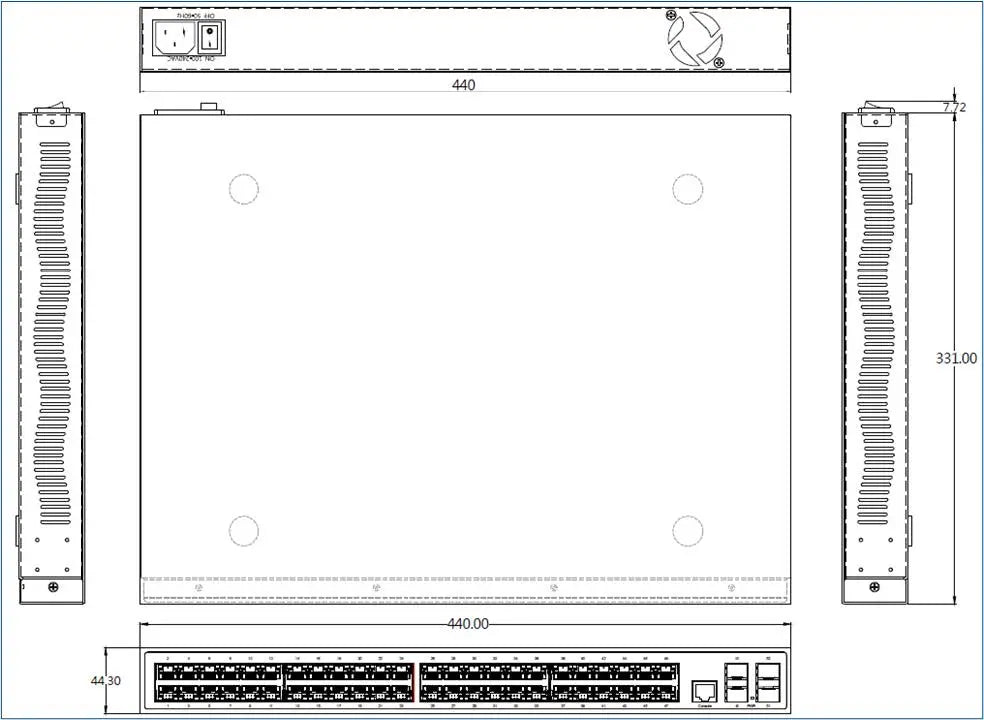

| Dimensions | EX26484: 440 x 330 x 44mm (W x D x H) | | (17.3" x 12.99" x 1.73") | EX26484-920: 440 x 380 x 44mm | | (17.3" x 14.96" x 1.73") |
| Weight | 5.5kg (12.1lbs) |
| Installation Type | Rack Mounting |
| Operating Temp. | 0 to 50 deg C (32 to 122 deg F) |
