EtherWAN EX19244 Smart Managed 24-Port Gigabit PoE Ethernet Switch
EtherWAN EX19244 Smart Managed 24-Port Gigabit PoE Ethernet Switch moves traffic inside cabinets, roadside enclosures and plant rooms where a commercial switch would not last a season. Port count and media are listed as 10/100/1000BASE-T(X): 24 ports; 100/1000BASE SFP: 4 ports (combo with ports 21-24. Operating temperature is rated at 0 to 50 deg C (32 to 122 deg F). The housing is metal.
One orderable part number, EX19244, listed at the current dealer price. Installation is rack mounting. Power input: 100-240VAC, 50/60Hz. Specifications above are taken from the EtherWAN datasheet for this family.
| Ethernet | 10/100/1000BASE-T(X): 24 ports | 100/1000BASE SFP: 4 ports (combo with ports 21-24 |
|---|---|
| Power Consumption | Device: 30W (without PoE)PoE | Power Budget: 460W |
| Casing Material | Metal |

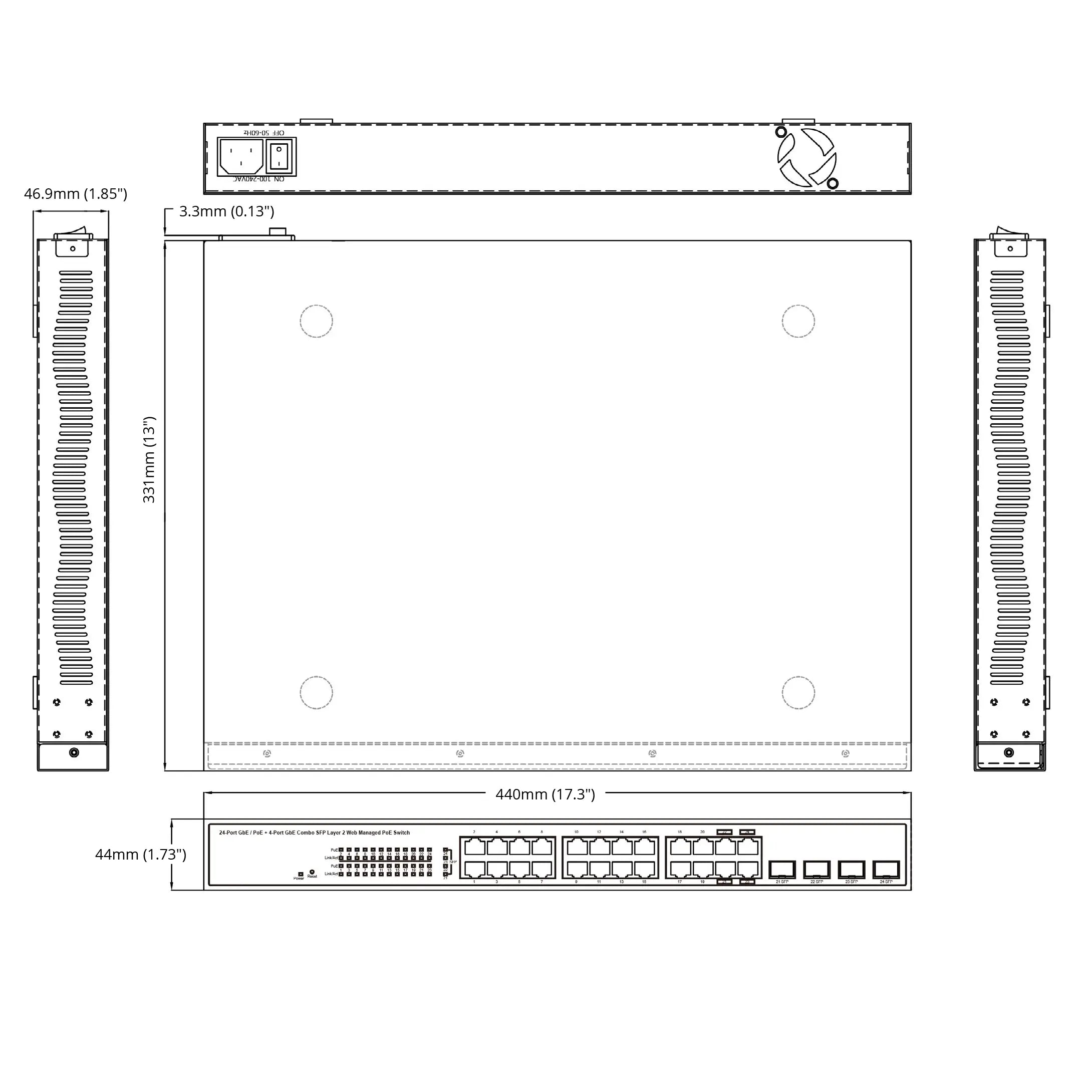

| Dimensions | 440 x 331 x 44mm (W x D x H) | 17.3" x 13" x 1.73" |
| Weight | 9.75lbs (4.4kg) |
| Installation Type | Rack mounting |
| Operating Temp. | 0 to 50 deg C (32 to 122 deg F) |
| Storage Temp. | -10 to 80 deg C (14 to 158 deg F) |
