EtherWAN EG97244 Series 24-port Gigabit and 4-port 1G/10G SFP+ Hardened Managed Layer 3 Switch

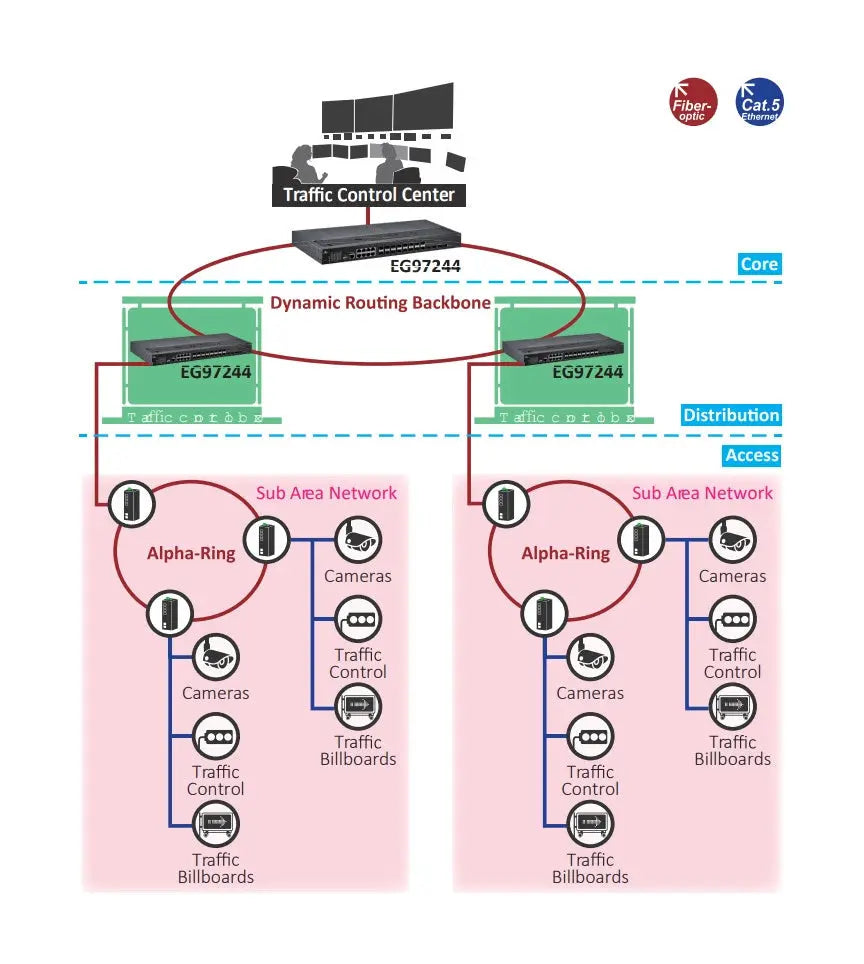

EtherWAN EG97244 Series 24-port Gigabit and 4-port 1G/10G SFP+ Hardened Managed Layer 3 Switch moves traffic inside cabinets, roadside enclosures and plant rooms where a commercial switch would not last a season. Port count and media are listed as 8 x 10/100/1000BASE-T; 16 x 100/1000BASE SFP; 4 x 1G/10G SFP+. Operating temperature is rated at -40 to 75 deg C (-40 to 167 deg F). The housing is aluminum, rated IP30.

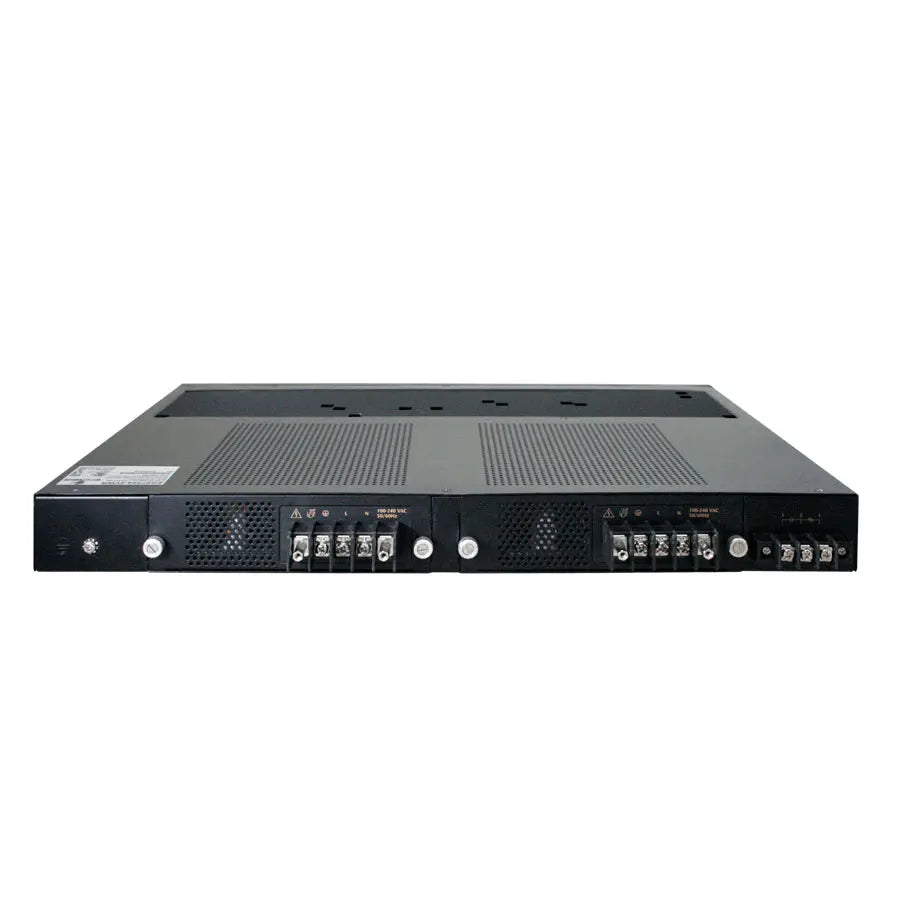

This page carries the 3 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by power connector: 4VCR uses an AC inlet, 4VTR and 4VWR a terminal block, all redundant. Installation is rack mounting. Specifications above are taken from the EtherWAN datasheet for this family.
