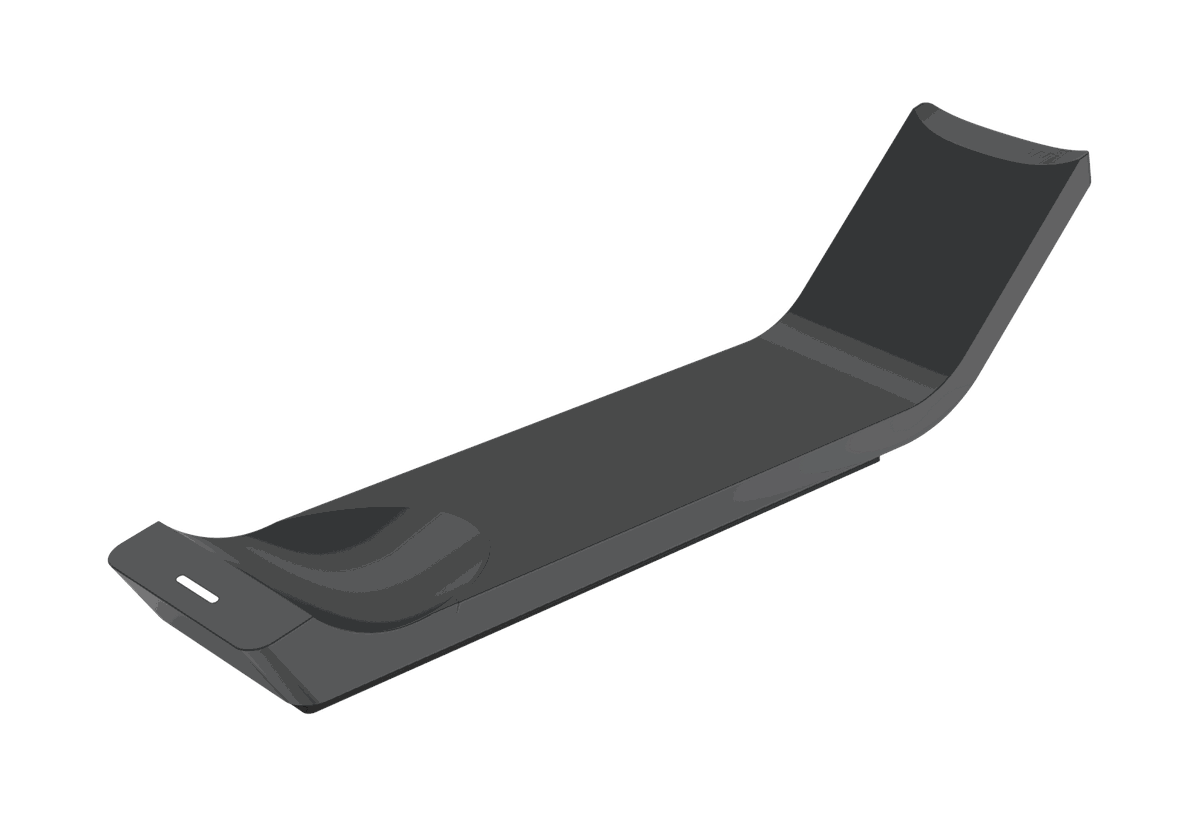

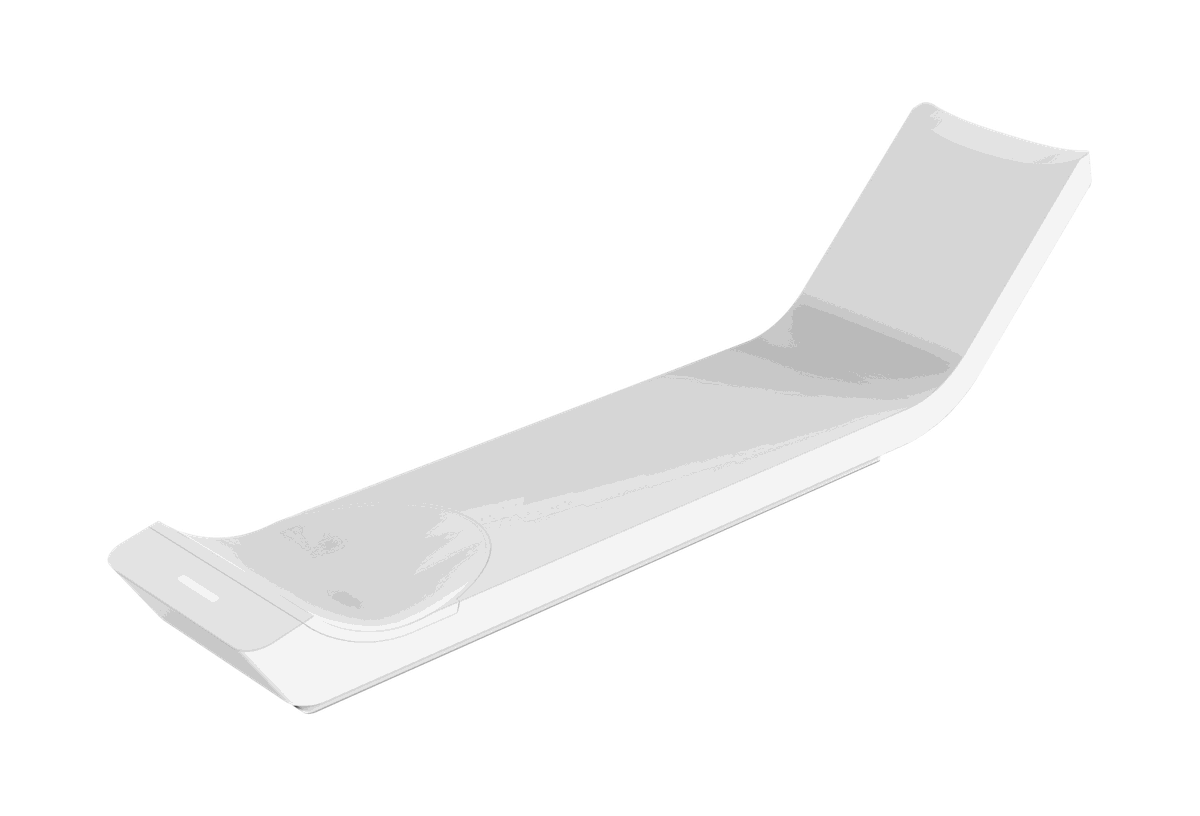

Crestron TSR-310-DS-H Horizontal Table Dock for TSR-310
The TSR-310-DS-H holds a TSR-310 lying flat rather than standing up, which keeps sight lines clear across a conference table and stops the remote being knocked over. Docked, the whole assembly is 2.71 in. tall and 8.97 in. long. A white LED shows the dock has power.
Power arrives over USB-C rather than a barrel connector, and Crestron includes a 59 in. black USB-C cable but not a supply: the dock needs a source meeting USB Type-C 1.2 (7.5 W maximum, 1.5 A at 5VDC) or USB BC 1.2. That makes it easy to feed from a table box that already has USB power. Charging is rated between 50 and 104 degrees F, and the dock comes in black or white.
| Function | Horizontal charging dock for one TSR-310 handheld remote |
|---|---|
| Power Input | (1) USB-C connector; 59 in. (1500 mm) USB-C cable included |
| Power Requirement | USB Type-C 1.2 (7.5 W, 1.5A at 5VDC) or USB BC 1.2 source, not included |
| Indicator | (1) White LED, indicates dock is powered on |
| Temperature | 32 to 104 F (0 to 40 C); 50 to 104 F while charging |
| Dimensions | 1.81 in. H x 1.57 in. W x 7.28 in. D (46 x 40 x 185 mm) |
| Dimensions Docked | 2.71 in. H x 2.24 in. W x 8.97 in. D (69 x 57 x 228 mm) |
