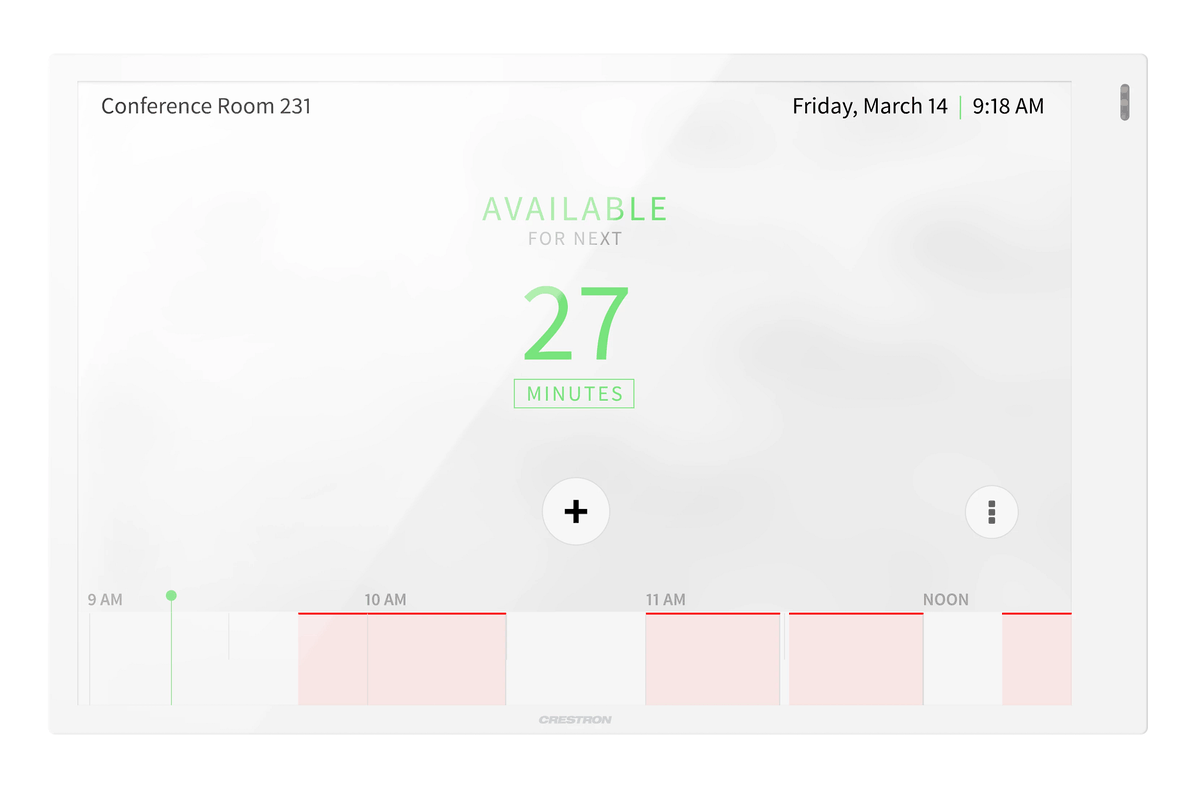

Crestron TSW-1070-GV 10.1 in. Wall Mount Touch Screen, Government Version
The TSW-1070-GV is the government build of the 10.1 in. wall mount touch screen, the largest panel in the TSW-70 family. Crestron removes the microphone, the Bluetooth communications beacon, and Wi-Fi, which is what makes it deployable in secure rooms where an open radio or microphone is not allowed. The 1920 x 1200 WUXGA capacitive display and the graphics engine are otherwise the standard TSW-1070.
Installation is one Ethernet run: PoE+ carries power, control, and H.265 or H.264 streaming video from an IP camera or a DigitalMedia switcher onto the panel. Built-in speakers handle touch feedback and program audio. The panel surface mounts over a 2 or 3 gang US box, a 2 gang European DIN 49073 box, or a 2 gang UK BS 4662 box, in black smooth or white smooth.
| Display | 10.1 in. (257 mm) TFT active matrix color LCD |
|---|---|
| Resolution | 1920 x 1200 pixels, 16:10 WUXGA |
| Brightness | 400 nits (cd/m2) |
| Touch Screen | Projected capacitive, 5-point multitouch capable |
| Omitted for Security | No microphone, no Bluetooth beacon, no Wi-Fi |
| Video | H.265, H.264 (MPEG-4 part 10 AVC), MJPEG |
| Audio | Built-in speakers |
| Network | 100 Mbps Ethernet with PoE+ PD |
| Dimensions | 5.87 in. H x 9.46 in. W x 2.01 in. D (149 x 240 x 51 mm) |
