Crestron TST-1080-DSW Wall Dock for TST-1080

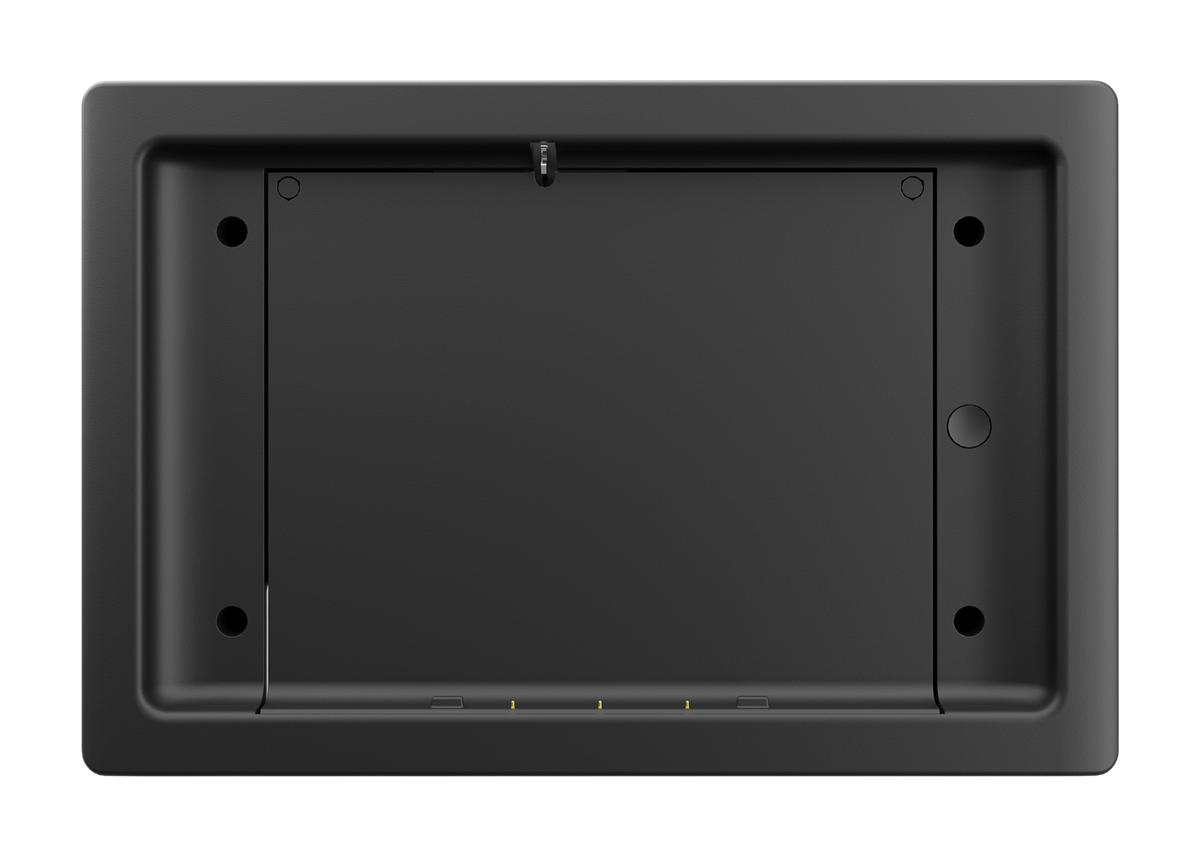

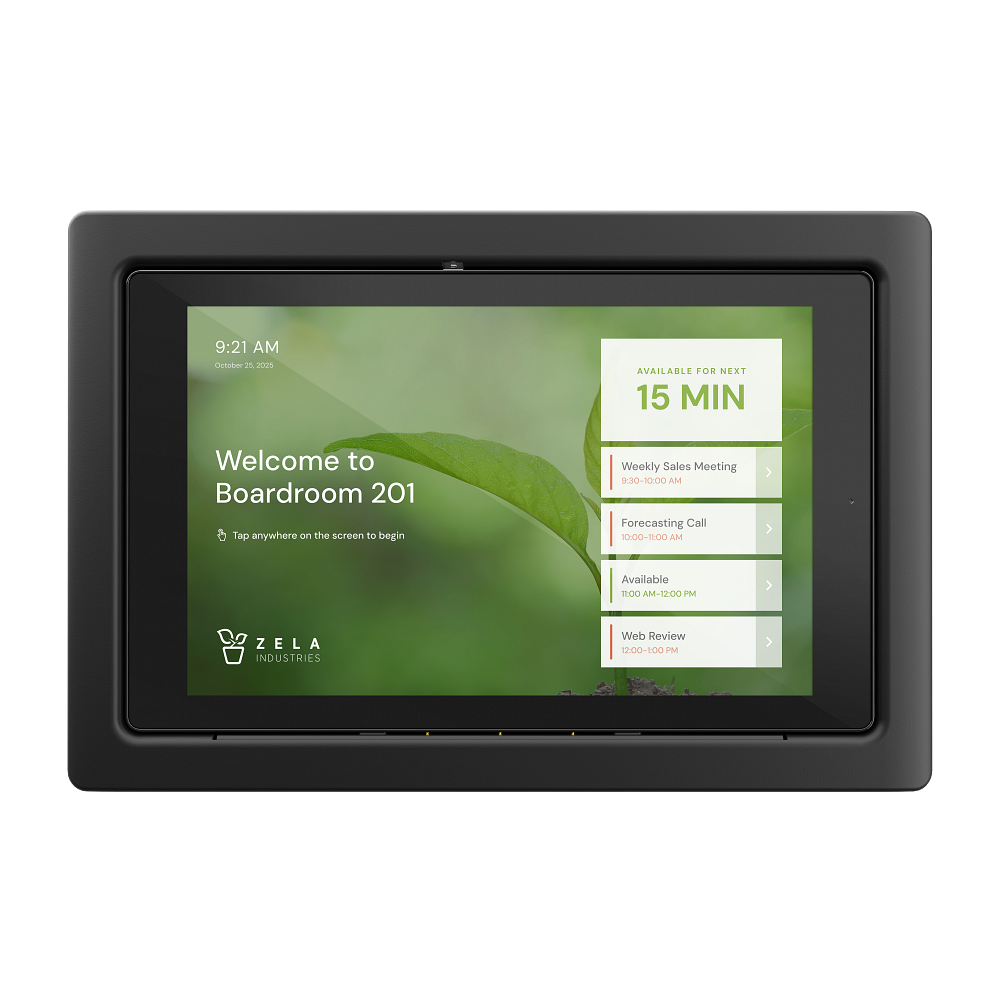

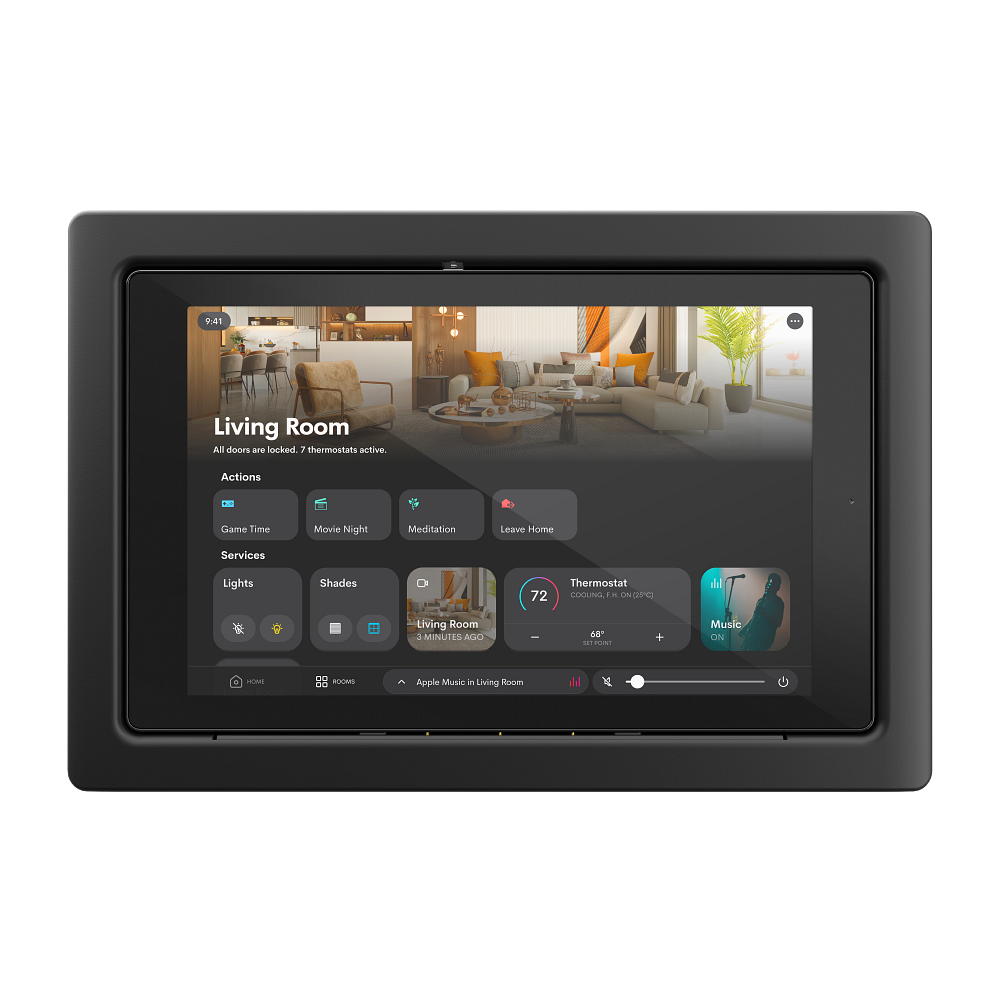

The TST-1080-DSW gives a TST-1080 a home in the wall. The metal chassis flush mounts into a vertical wall structure using the separately sold back box or mounting kit, and the panel docks into it, so the same screen that gets carried around a house also serves as the fixed panel by the door. An OPEN push button, reachable when the panel is out, releases the docking mechanism.
Power is 24 volts DC on a 2-pin 3.5 mm detachable terminal block taking up to 18 AWG, and the dock draws 30 W (1.25 A at 24VDC) with the touch screen docked, which is what to budget on a Cresnet run. The faceplate is black plastic over the metal chassis. Mounting accessories, including the TST-902-DSW-BB back box and the preconstruction and postconstruction kits, are ordered separately.
| Function | Flush wall dock and charger for the TST-1080 wireless touch screen |
|---|---|

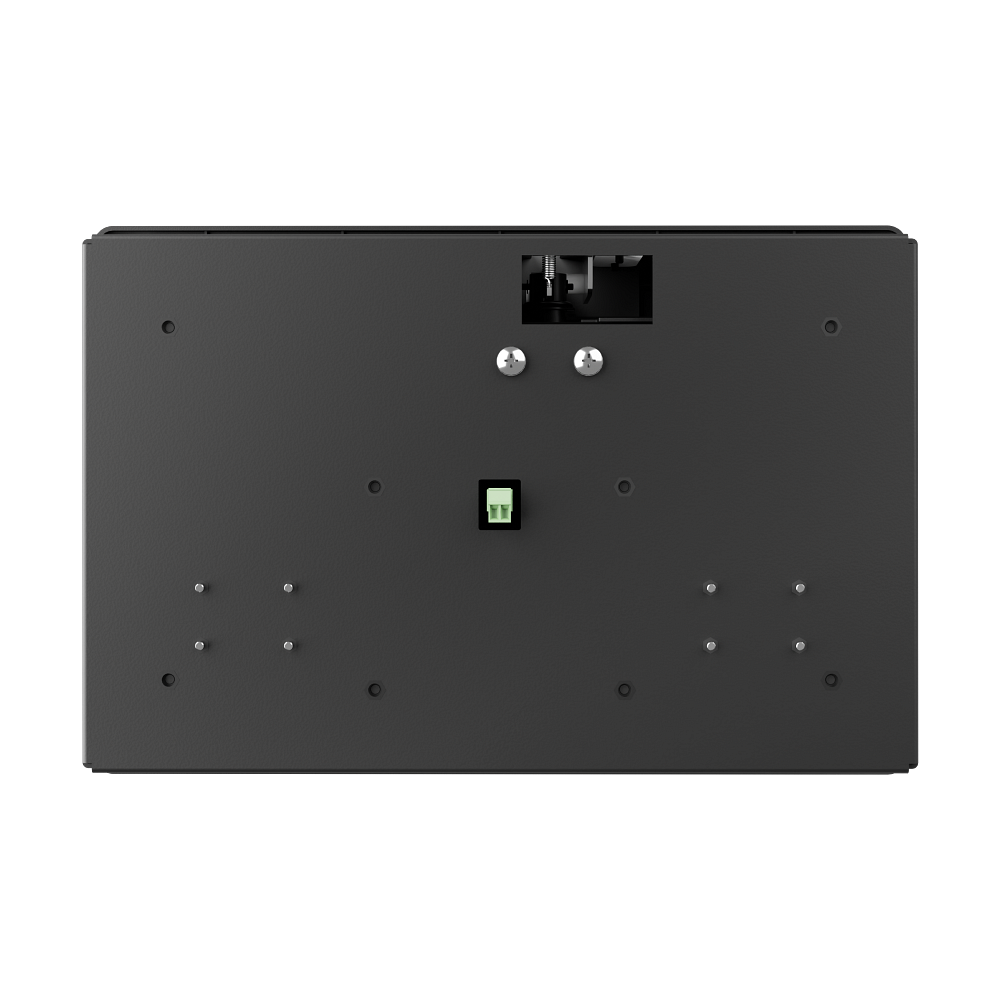

| Power Input | (1) 2-pin 3.5 mm detachable terminal block, 24VDC, 18 AWG maximum |
| Power Usage | 30 W (1.25A at 24VDC) with touch screen docked |
| Controls | (1) OPEN push button, accessible undocked, releases the docking mechanism |
| Chassis | Metal, flush mountable in a vertical wall structure with optional accessories |
| Faceplate | Plastic, black |
| Temperature | 41 to 112 F (5 to 45 C); 50 to 104 F while charging |
| Dimensions | 8.01 in. H x 11.86 in. W x 4.37 in. D undocked, 3.16 in. D docked (204 x 301 mm) |
