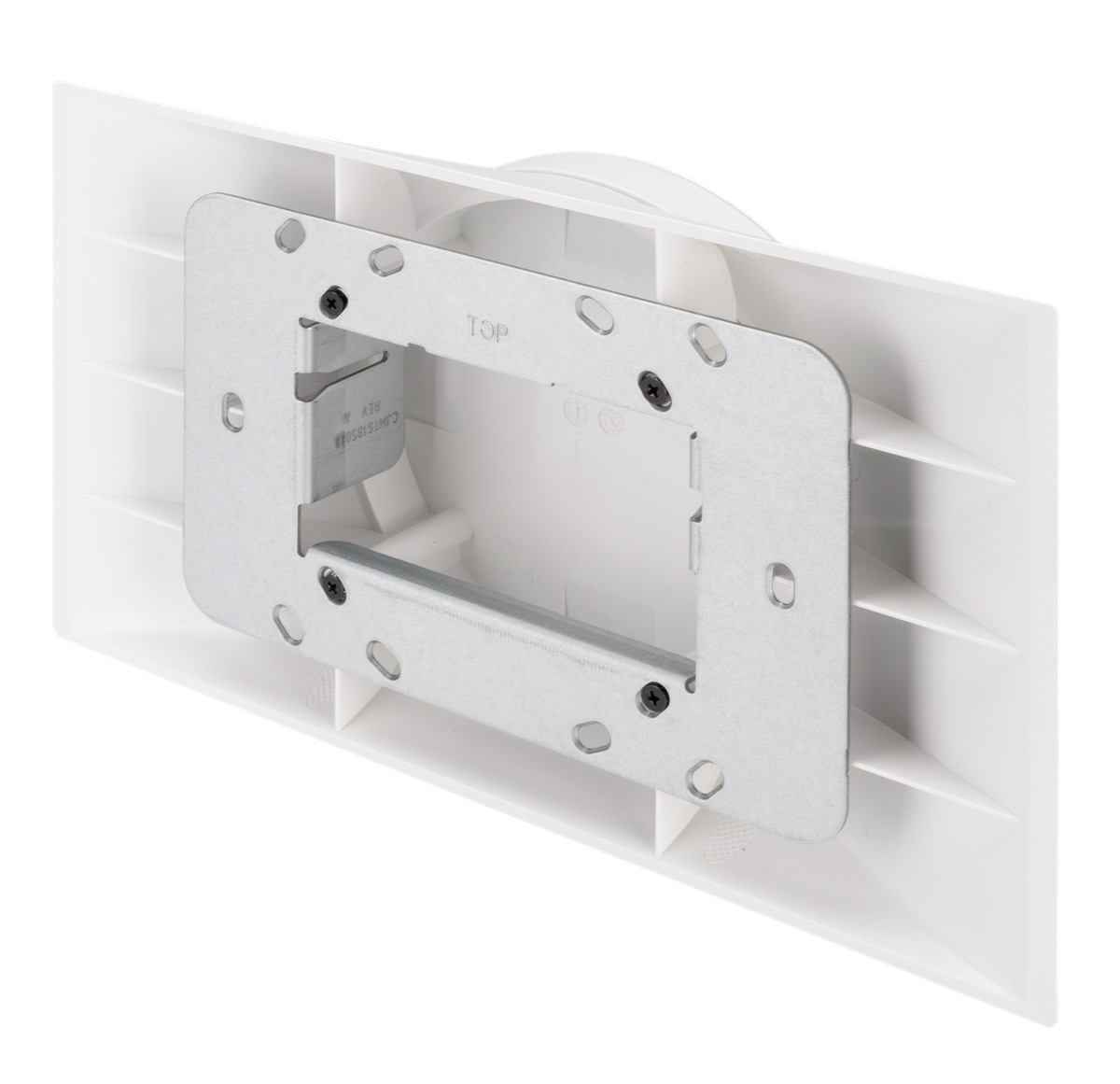

Crestron TSW-1070-MSMK Multisurface Mount Kit for TSW-1070 Series

The TSW-1070-MSMK mounts a TSW-1070 or TSS-1070 series touch screen flush to a glass wall or any other smooth flat surface with peel-and-stick adhesive, which is the usual requirement at the entrance to a glass-walled meeting room where nothing can be drilled.

The kit includes the plastic mount and a matching adhesive raceway for the cable: three 3 ft straight sections in white paintable plastic with a 0.77 by 0.46 in. profile, plus couplers and 90 degree elbows. Installed with the touch screen the assembly is 5.87 by 9.46 in. and 2.28 in. deep, or 6.59 by 10.95 in. if a light bar is fitted as well. Finish is black or white to match the panel.

FunctionMultisurface mount kit for TSW-1070 and TSS-1070 series touch screens
HousingPlastic, black or white finish
Surface MountingPeel-and-stick adhesive to glass or other flat, smooth surface
RacewayAdhesive plastic, white paintable, 0.77 in. W x 0.46 in. D; (3) 3 ft sections, (2) couplers, (2) 90 degree elbows
Dimensions5.04 in. H x 8.63 in. W x 1.69 in. D without touch screen
Dimensions Installed5.87 in. H x 9.46 in. W x 2.28 in. D with touch screen
Weight5.3 oz (102 g) without touch screen, light bar, or raceway
