Crestron TST-1080-DS Table Dock for TST-1080

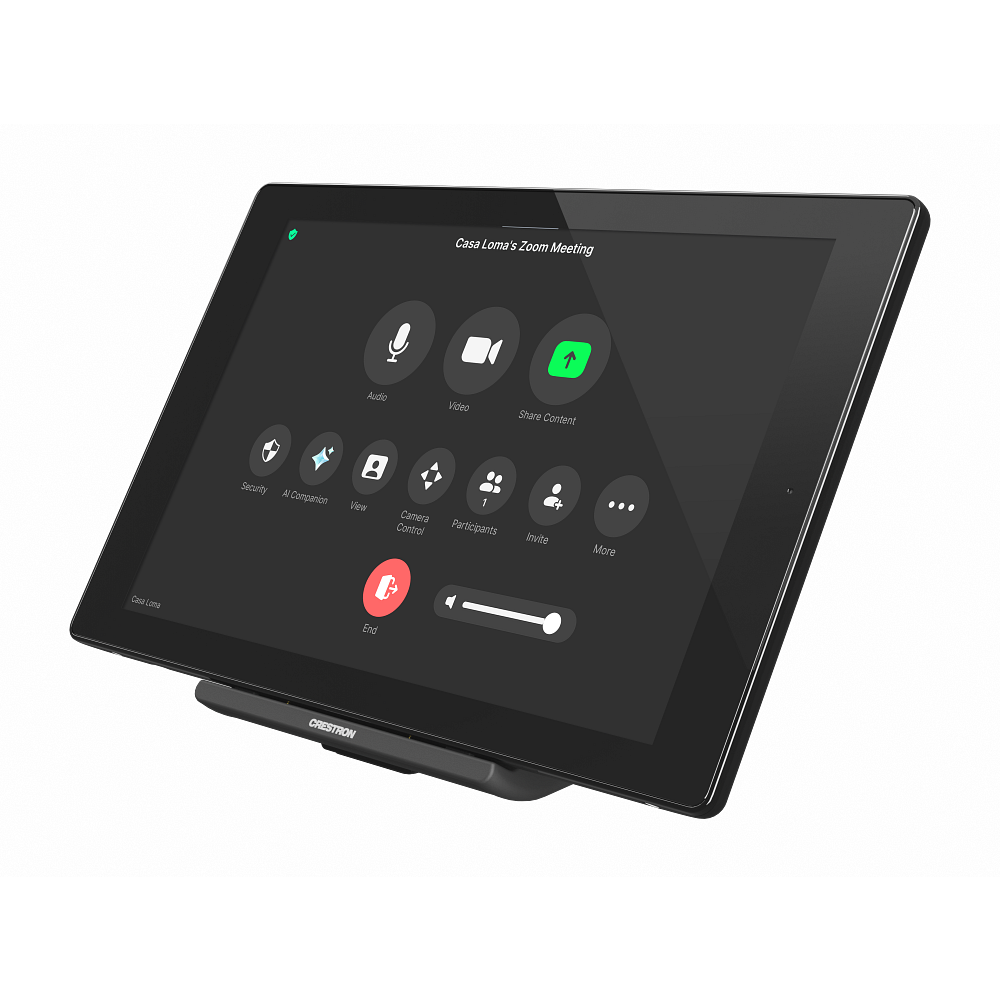

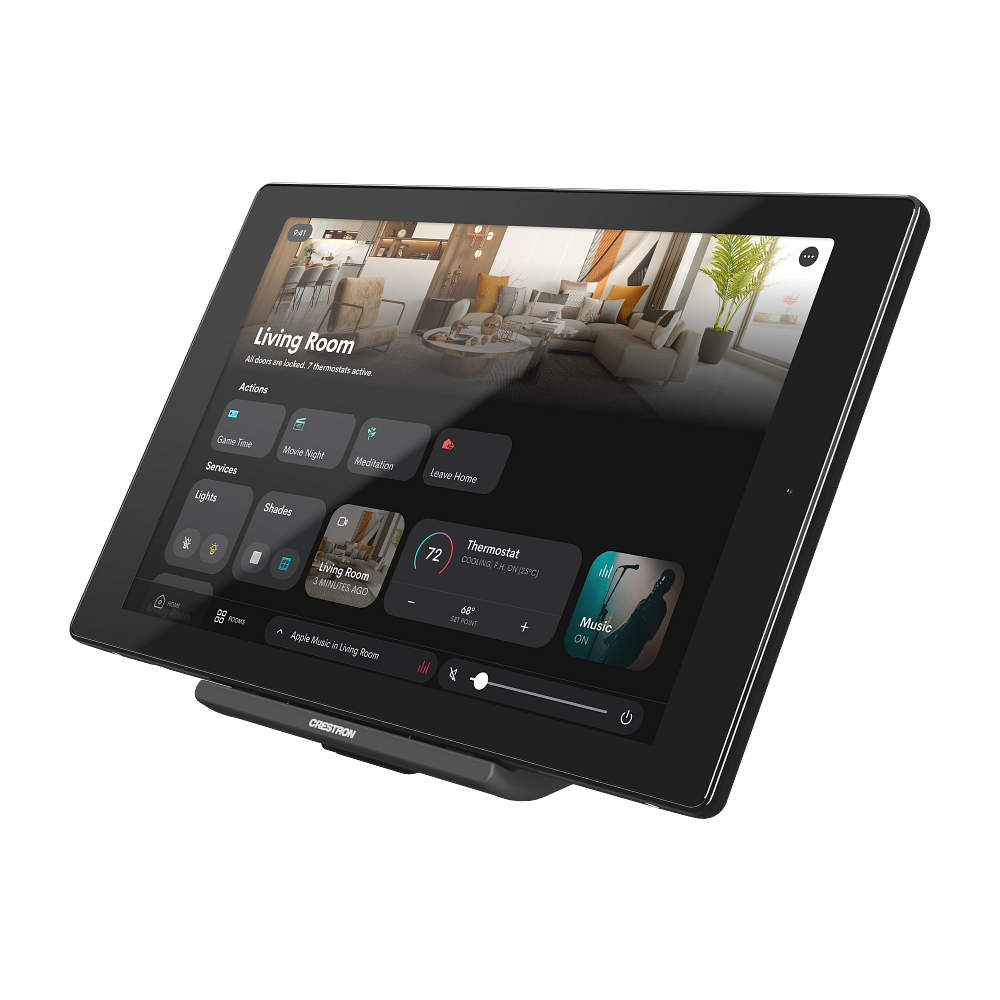

The TST-1080-DS is the table dock for the TST-1080 wireless touch screen. Three contacts mate with the docking port on the back of the panel, so setting the screen into the cradle both stands it up for tabletop use and starts charging it. Undocked the cradle is 3.64 in. tall; with the panel in place the assembly stands 6.17 in. high and 10.31 in. wide.
Power comes from the included pack: 100 to 240 volts AC in, 1.25 A at 24 volts DC out, on a 6 ft attached cable with an inline 2.1 x 5.5 mm DC connector. Consumption is 6 W. Crestron rates the dock for charging between 50 and 104 degrees F. A TST-1080 ships with one of these; this is the spare or the second-room dock.
| Function | Charging and tabletop dock for the TST-1080 wireless touch screen |
|---|---|
| Docking | (3) contacts mating with the TST-1080 docking port |
| Power Input | (1) attached 6 ft (1.83 m) cable, inline 2.1 x 5.5 mm DC connector, 24VDC |
| Power Pack | Included; input 100-240VAC 50/60 Hz, output 1.25A at 24VDC |
| Power Consumption | 6 W |
| Temperature | 32 to 112 F (0 to 45 C); 50 to 104 F while charging |
| Dimensions | 3.64 in. H x 4.87 in. W x 4.31 in. D (93 x 125 x 110 mm) |
| Dimensions Docked | 6.17 in. H x 10.31 in. W (157 x 262 mm) |
