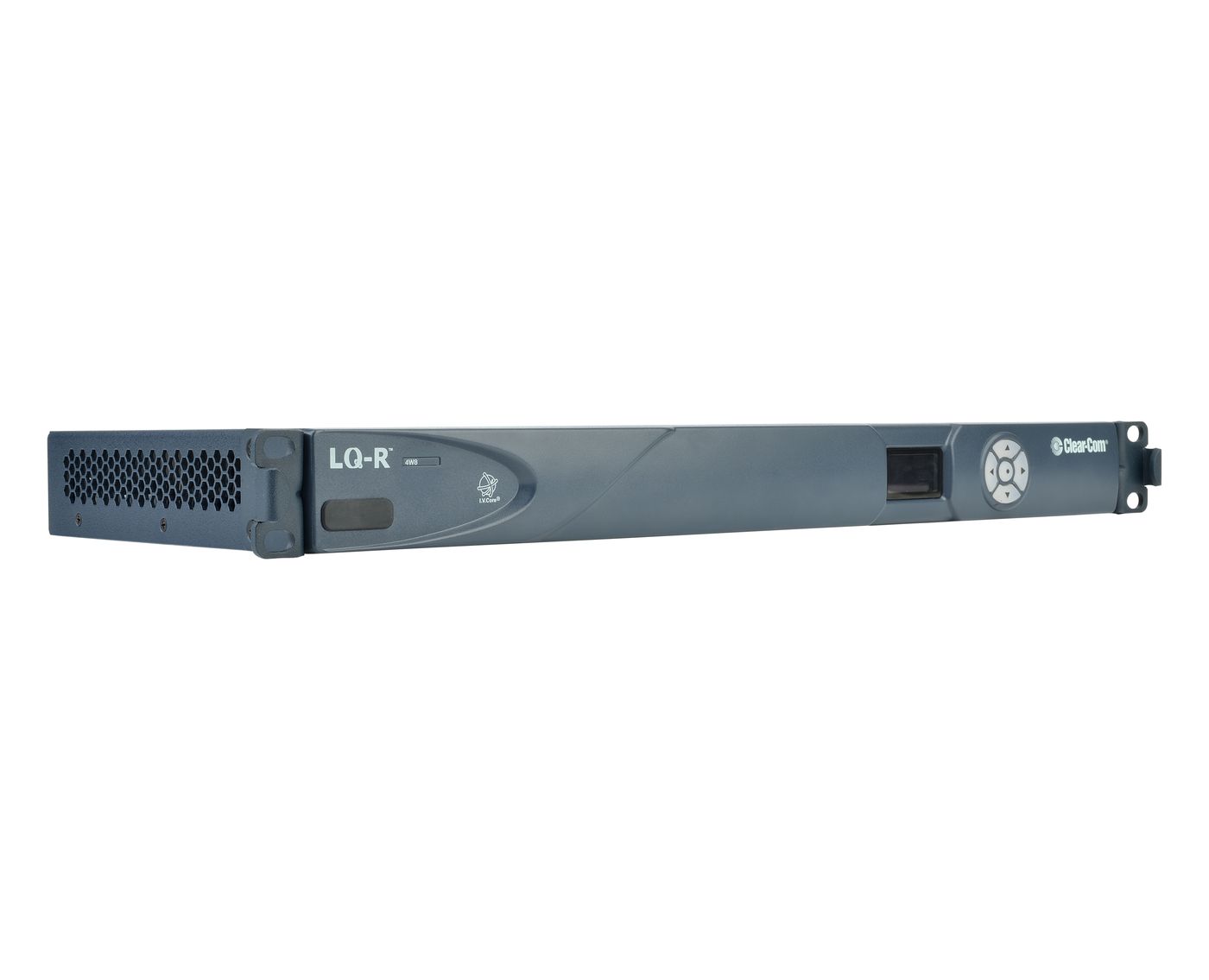

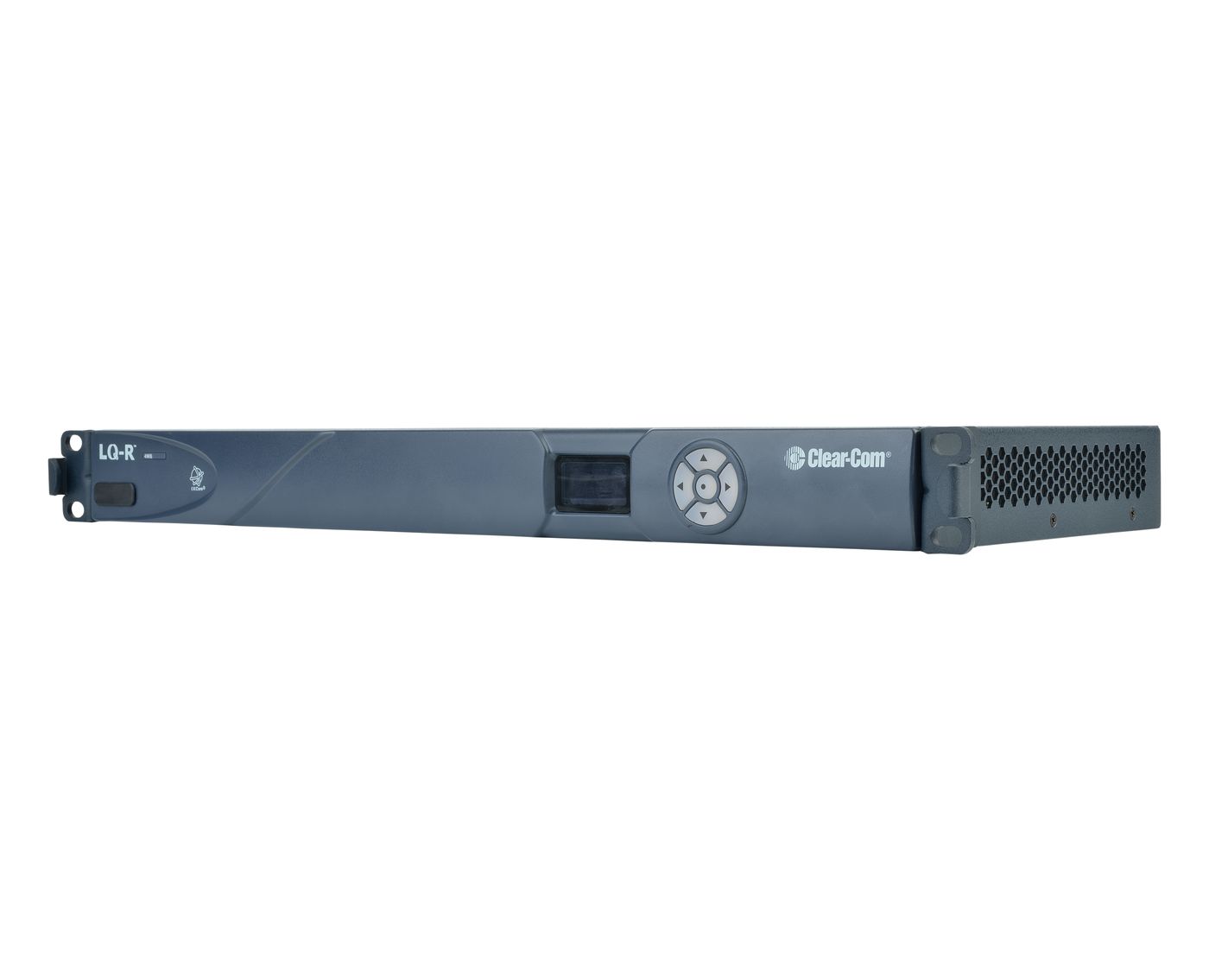

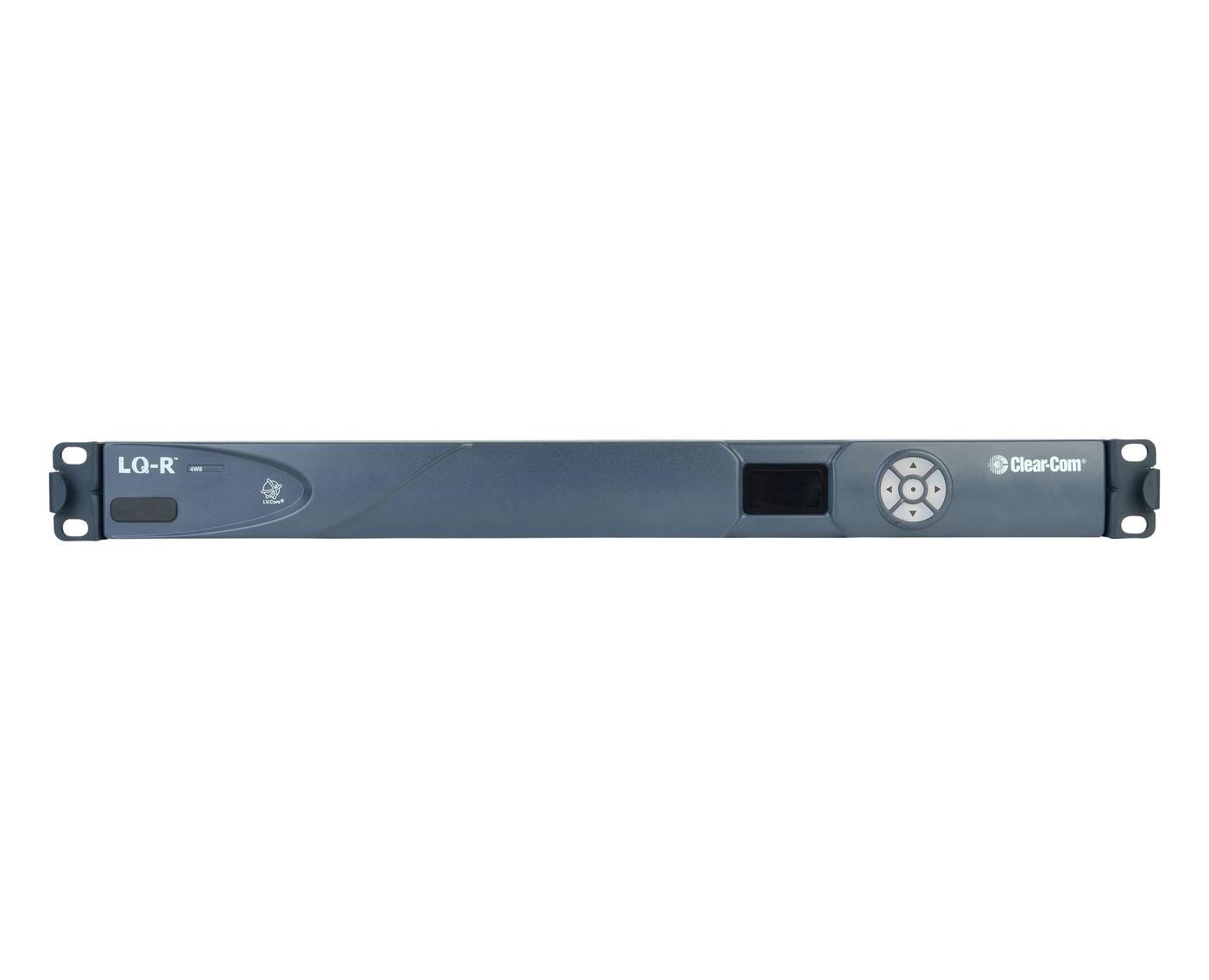

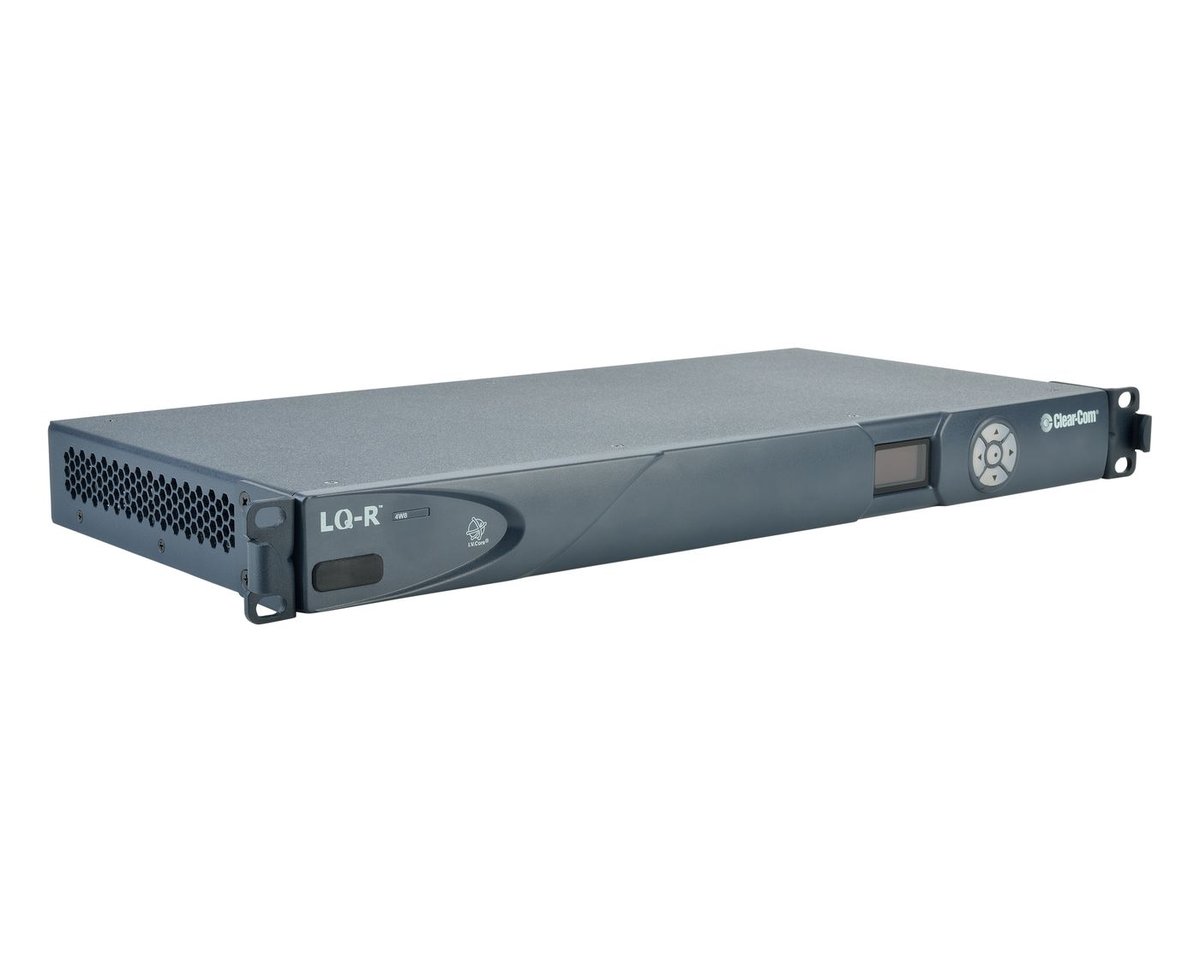

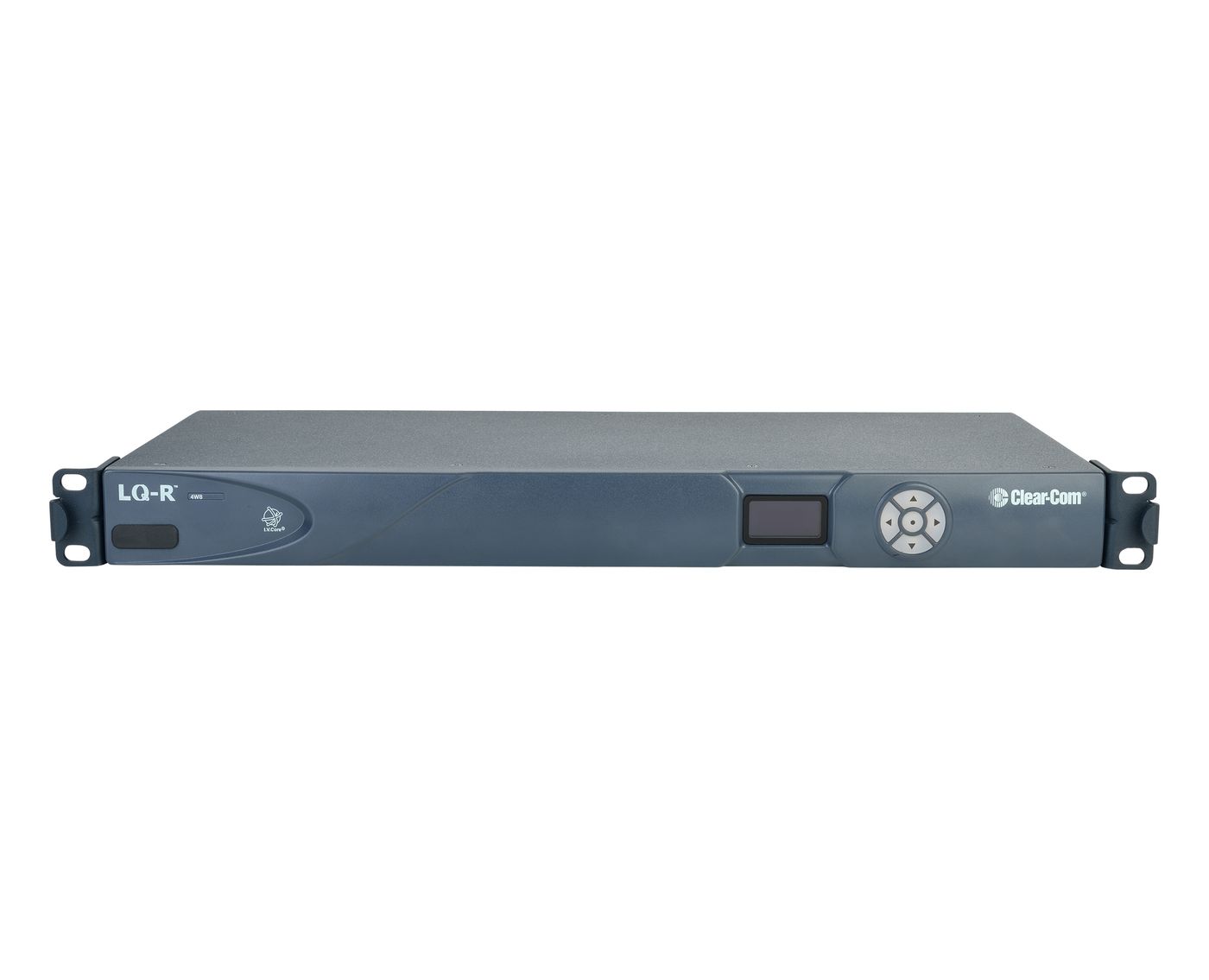

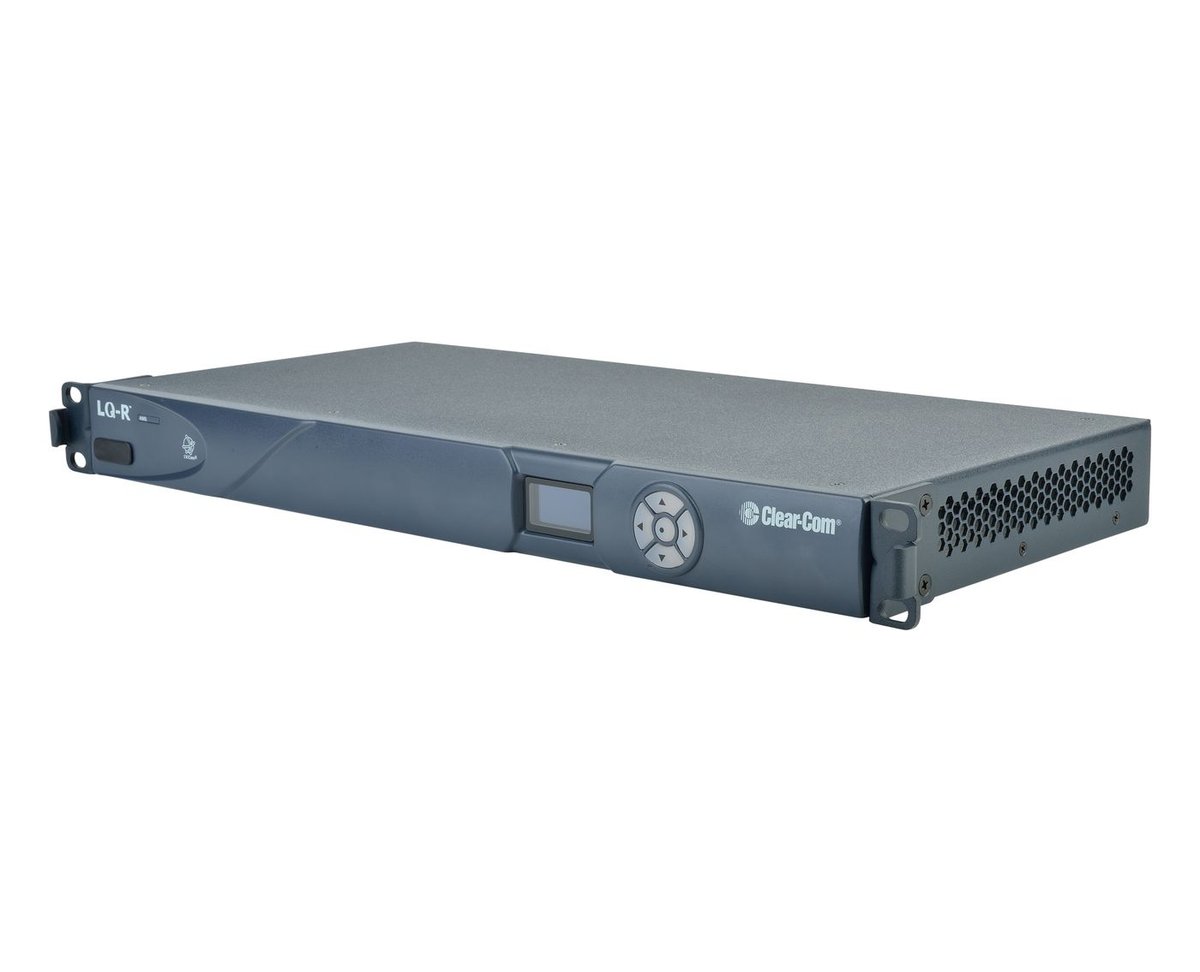

Clear-Com LQ-R4W8 LQ Series 8-Port 4-Wire 1RU IP Interface

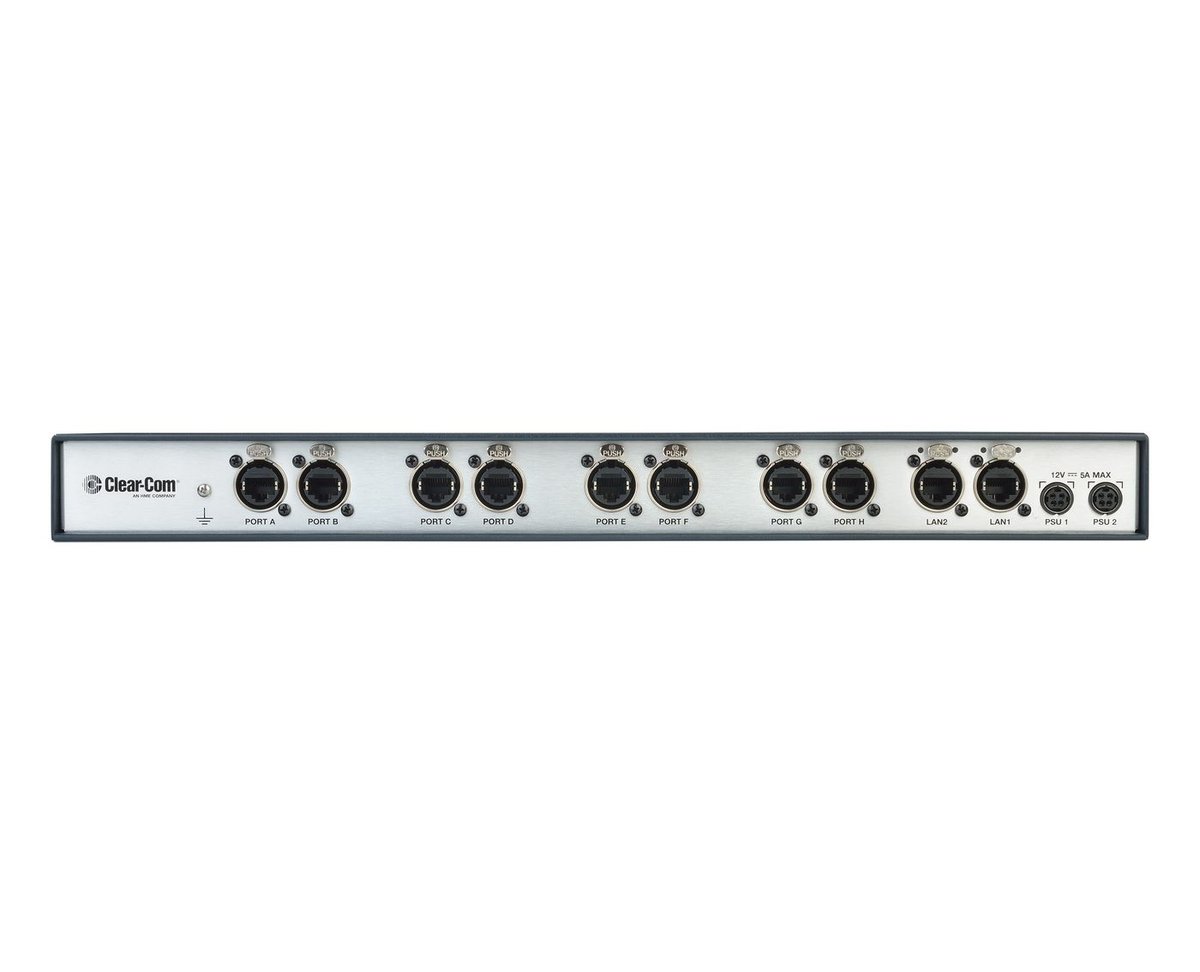

The LQ-R4W8 is the densest 4-wire interface in the range, eight ports in one rack unit, all on RJ45 etherCON. It is the unit for a facility linking a matrix to remote sites at scale, where port count per RU is the constraint rather than portability.

Every LQ unit joins a link group of up to six LQ, Gen-IC or HMS-4X members carrying 24 channels and 24 directs, and each one hosts eight virtual interface ports and eight virtual clients for Agent-IC and Station-IC users. Two bridged RJ45 etherCON LAN ports allow a daisy chain, a yellow OLED display with five backlit buttons handles local configuration, and licences such as SIP8-LQ and VIRTUAL-IC-LQ are applied per unit through CCM.
