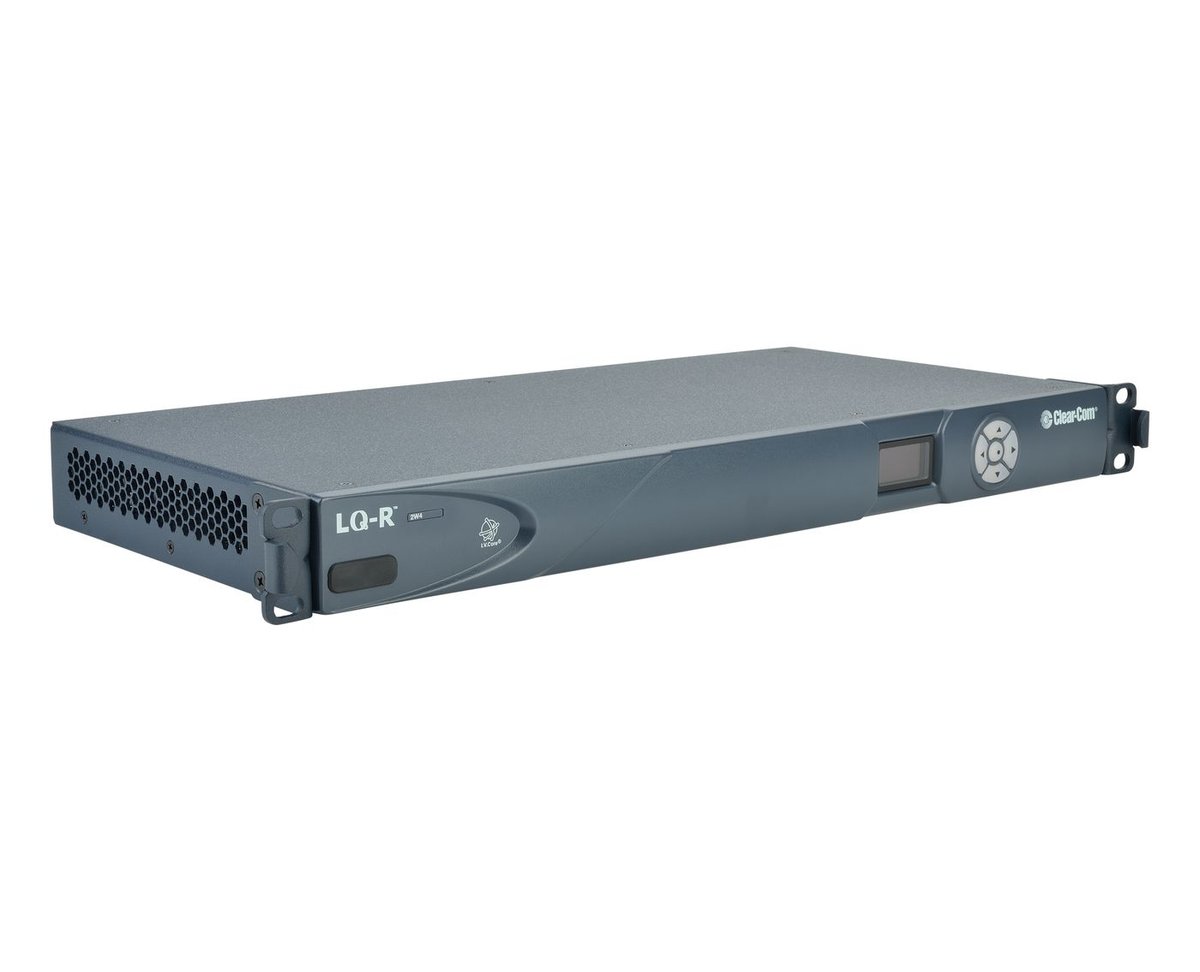

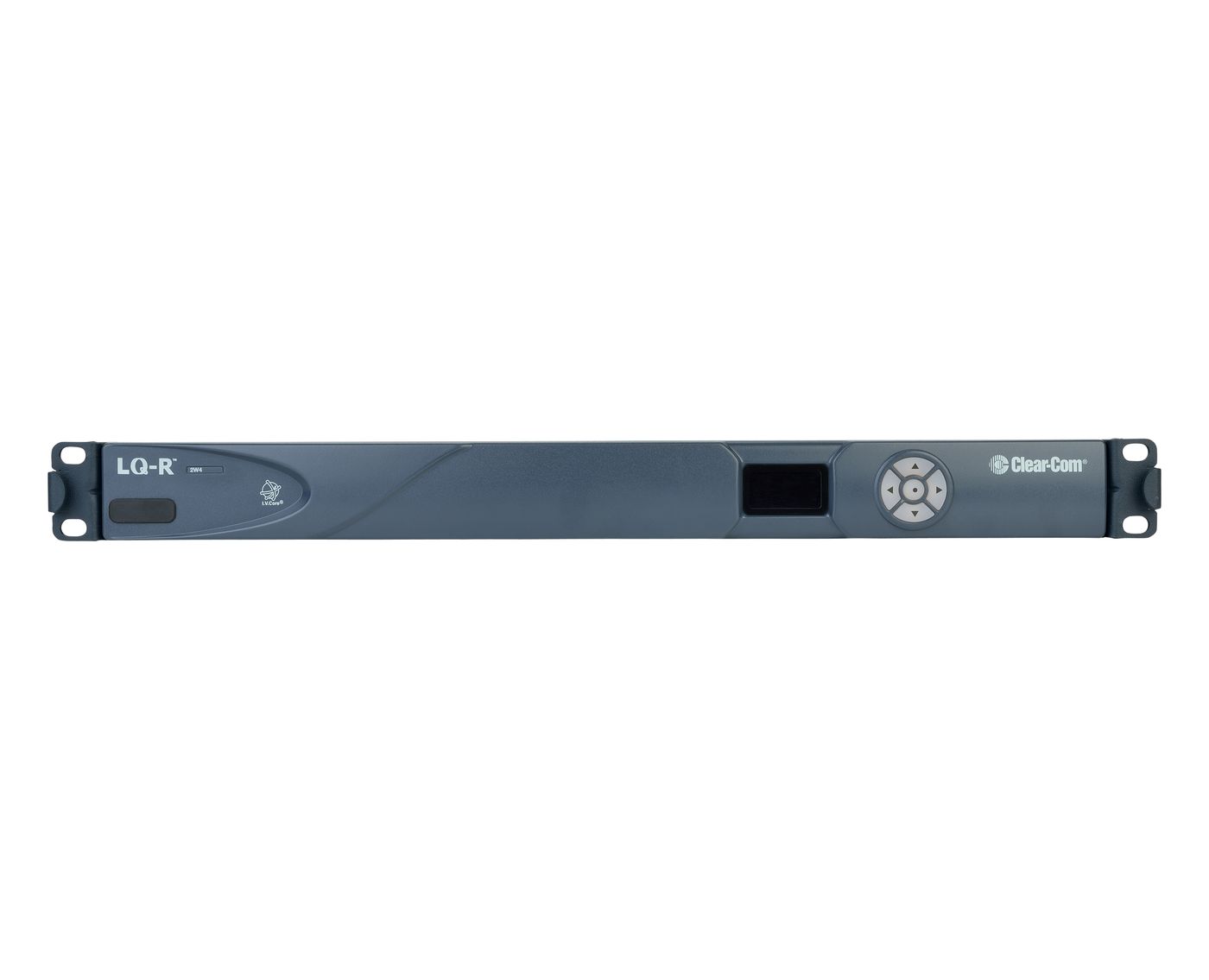

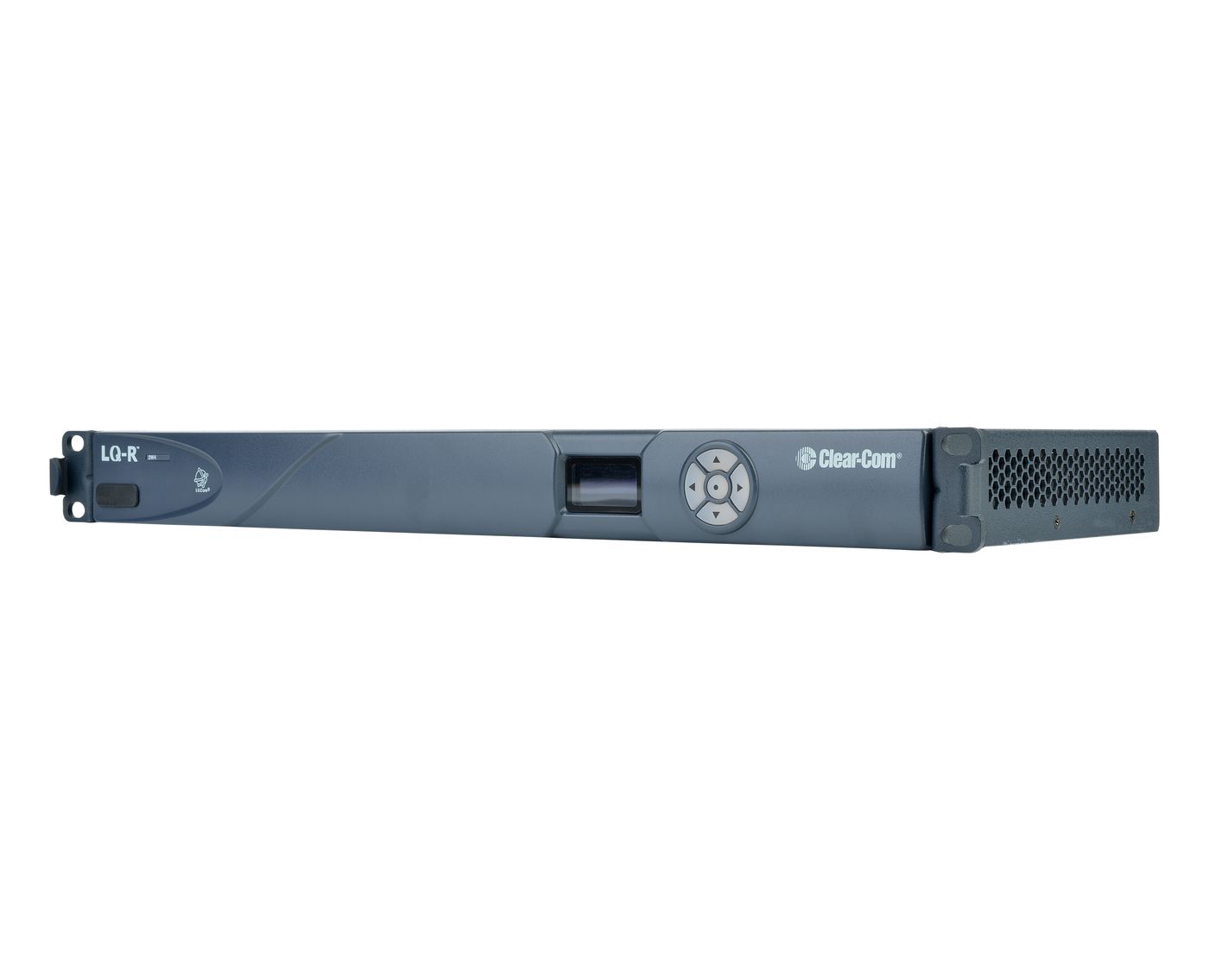

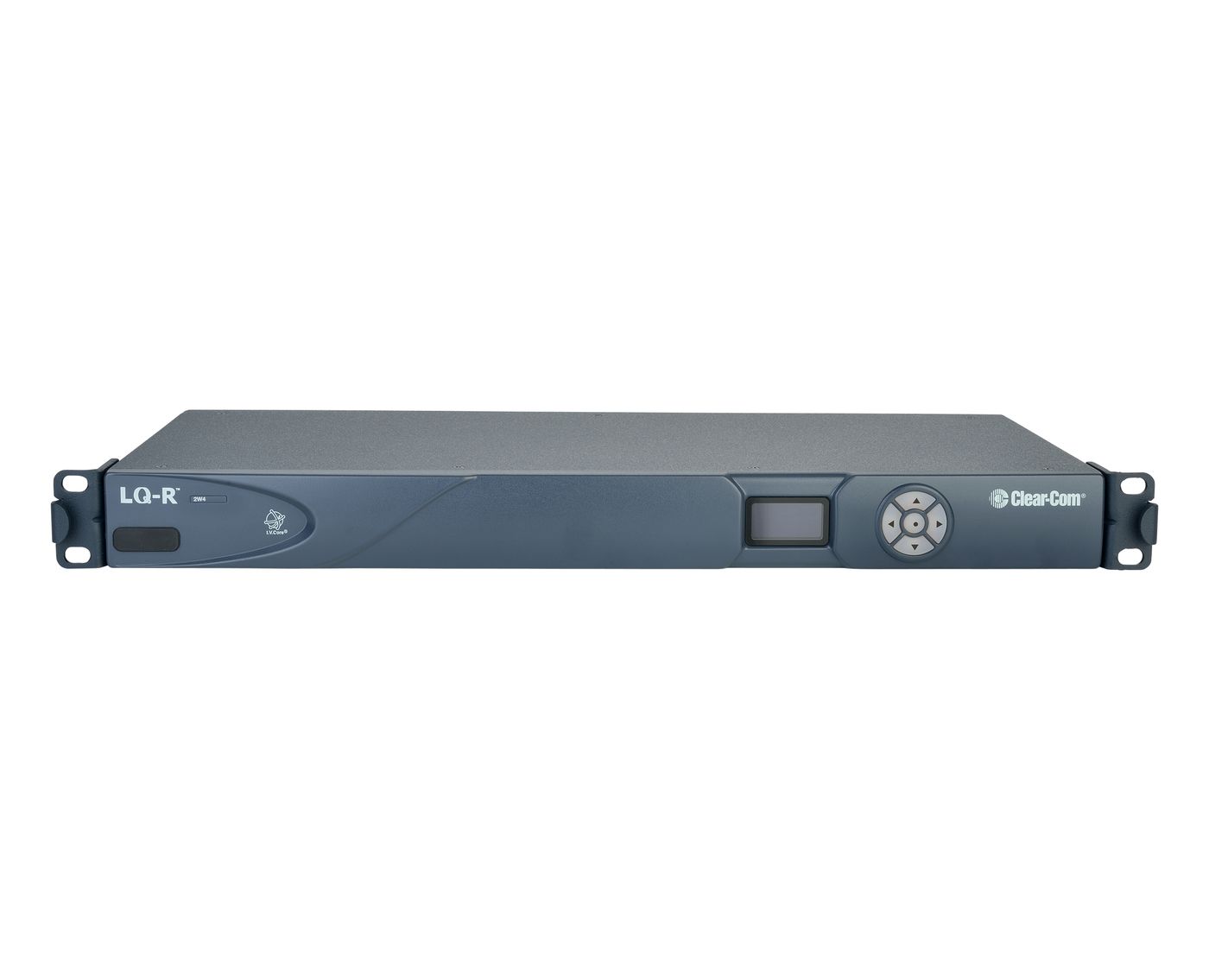

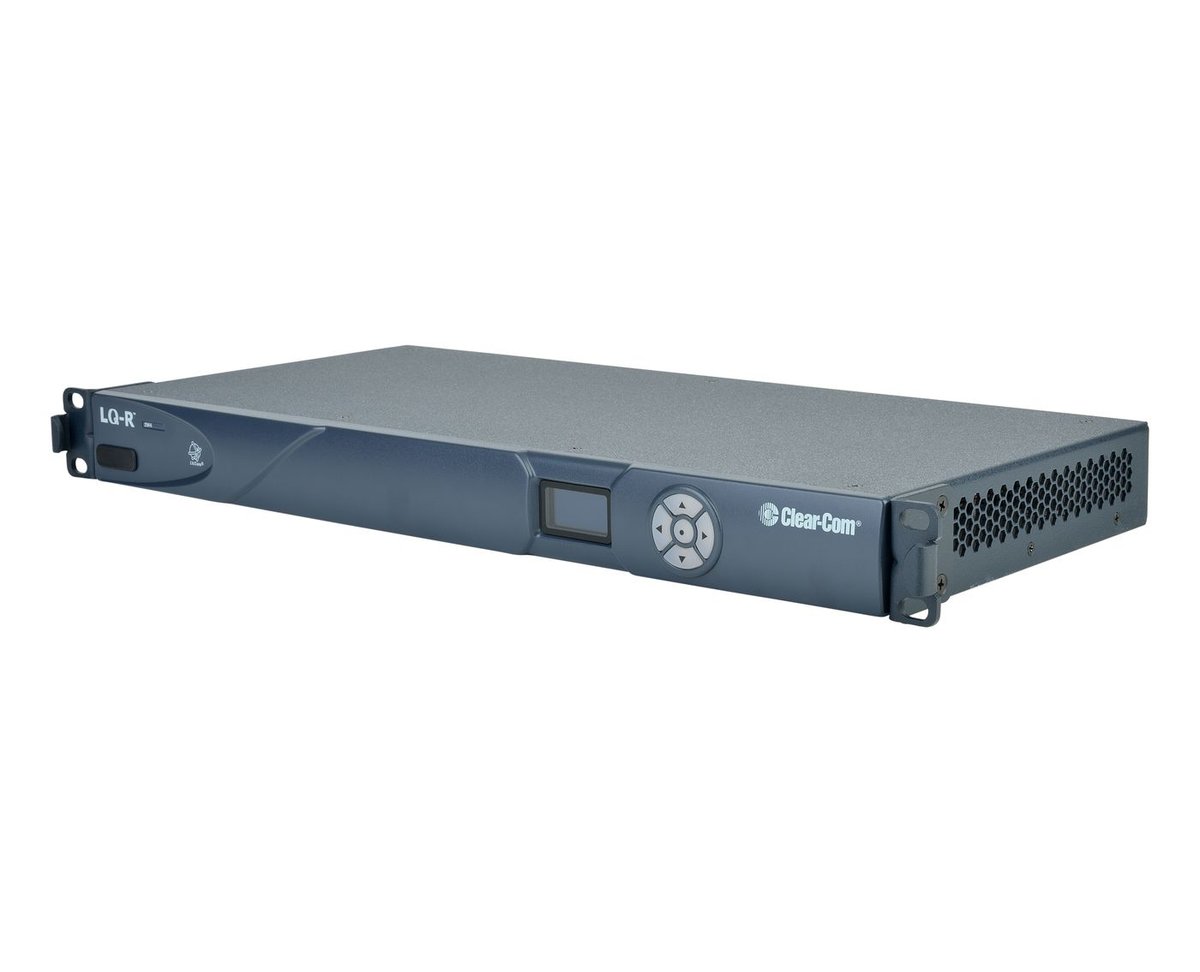

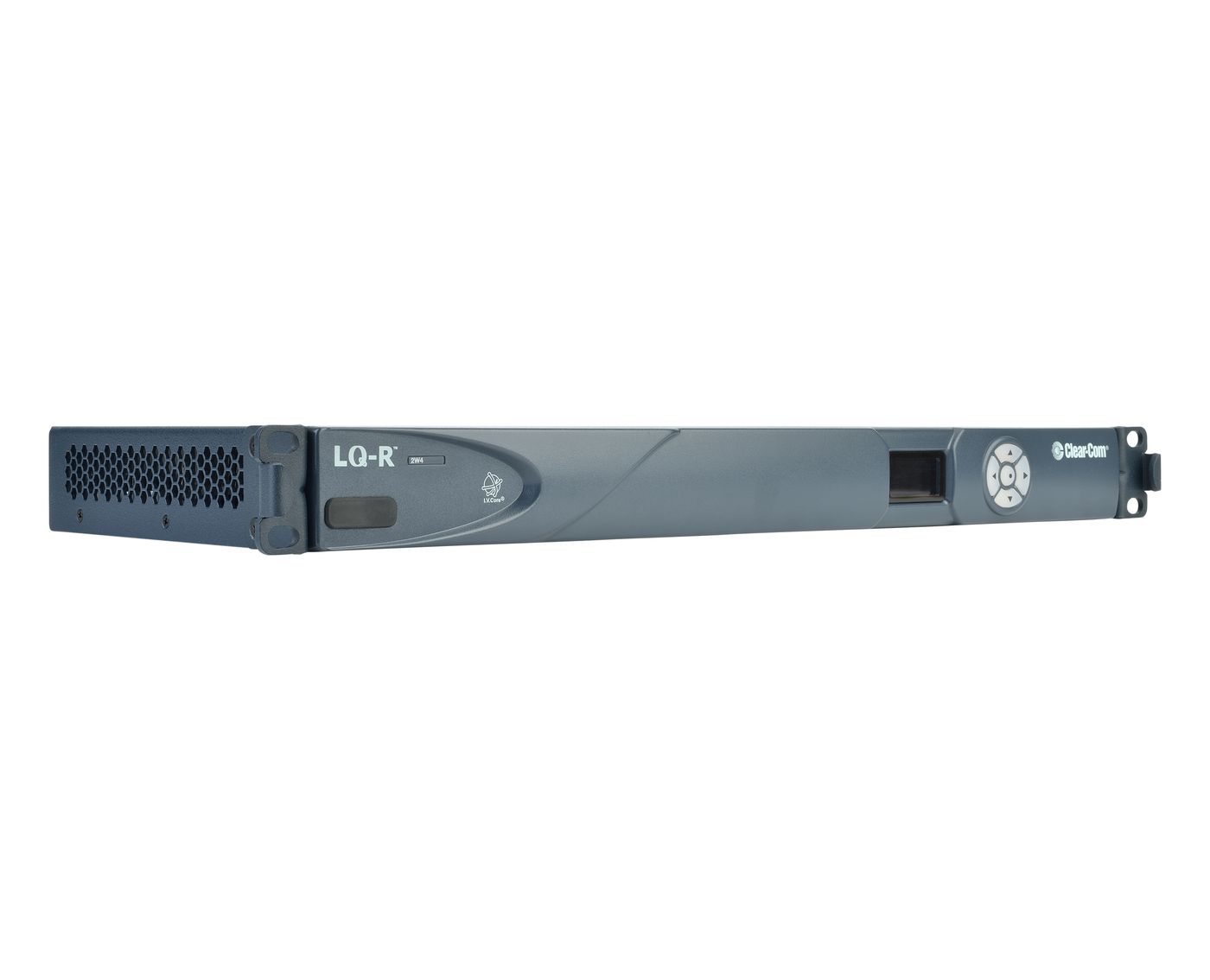

Clear-Com LQ-R2W4 LQ Series 4-Port 2-Wire 1RU IP Interface

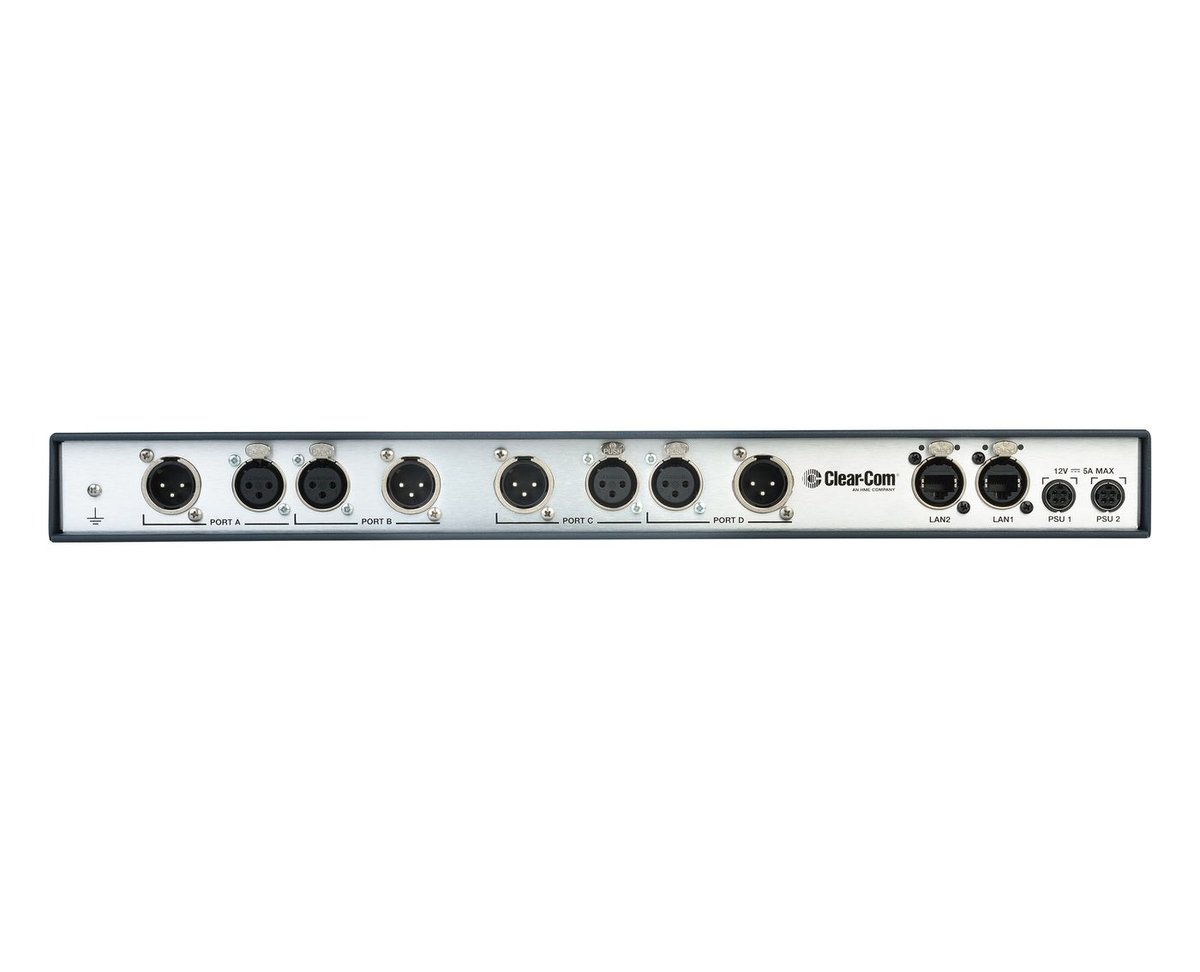

The LQ-R2W4 is the rack-mounting four-port 2-wire interface, the version that lives in a machine room rather than a flight case. Four XLR-3F partyline ports connect legacy 2-wire circuits to an IP link group, with dual DC power connectors on the LQ-R chassis for a redundant supply.

Every LQ unit joins a link group of up to six LQ, Gen-IC or HMS-4X members carrying 24 channels and 24 directs, and each one hosts eight virtual interface ports and eight virtual clients for Agent-IC and Station-IC users. Two bridged RJ45 etherCON LAN ports allow a daisy chain, a yellow OLED display with five backlit buttons handles local configuration, and licences such as SIP8-LQ and VIRTUAL-IC-LQ are applied per unit through CCM.
