Chauvet DJ 4BAR Quad ILS Wash Light System

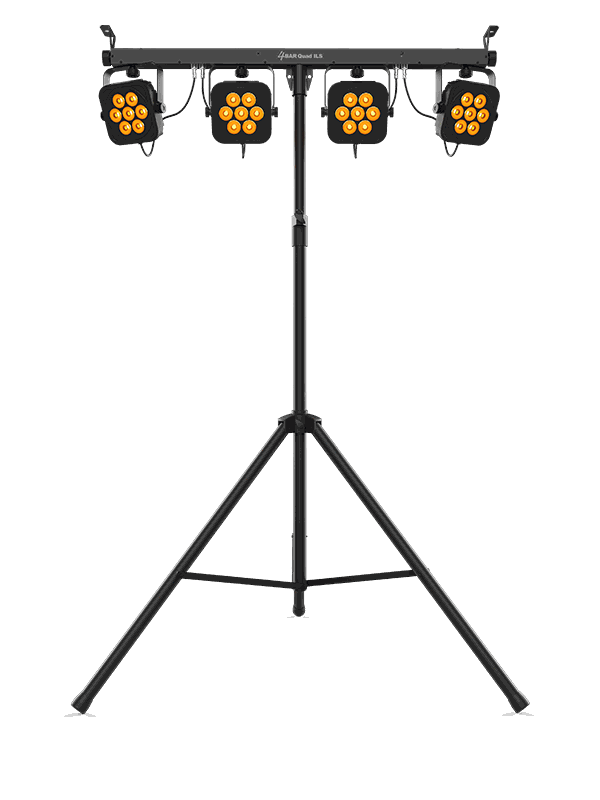

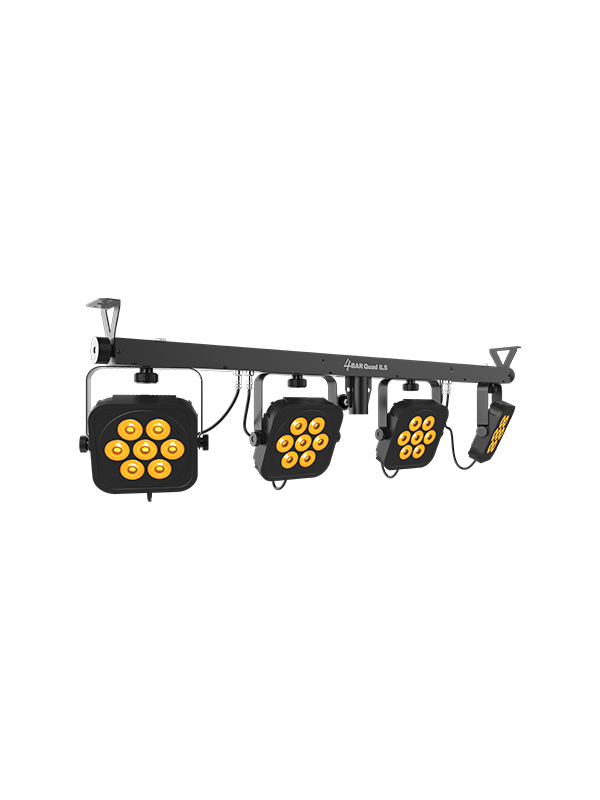

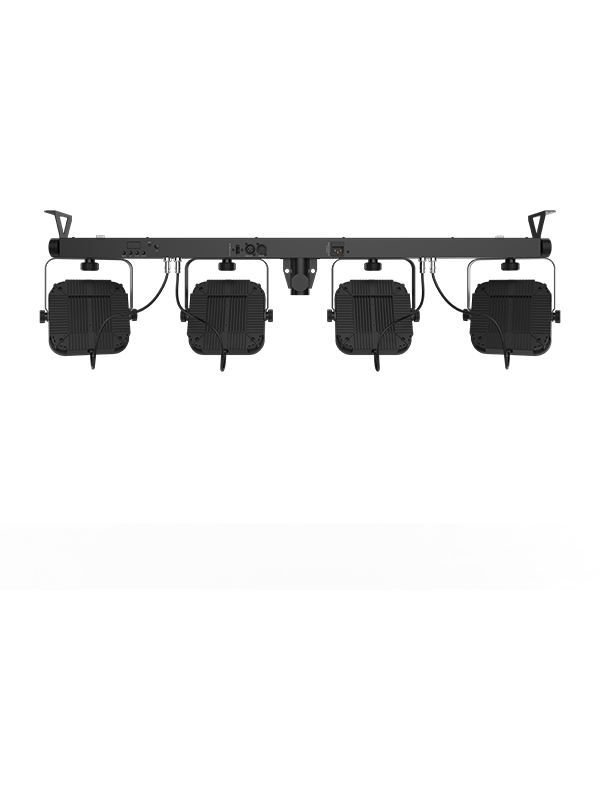

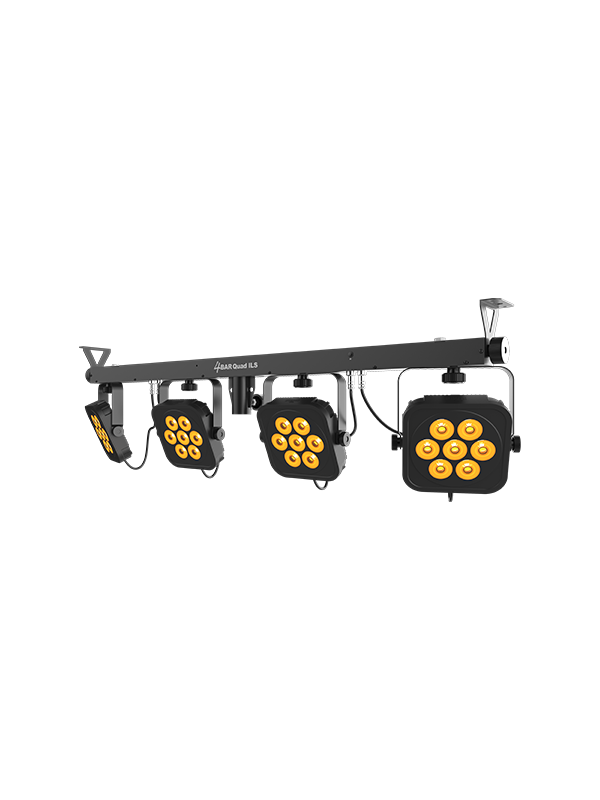

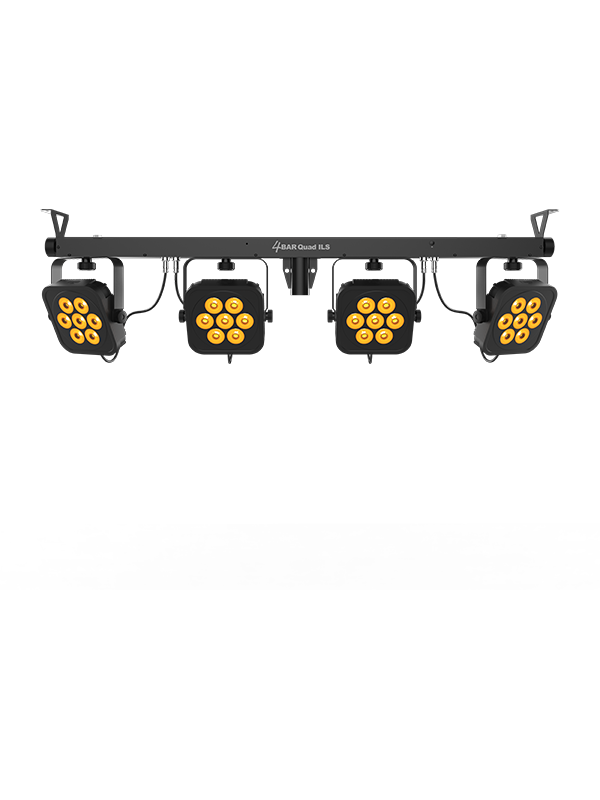

The 4BAR Quad ILS adds a dedicated amber emitter to each of its 28 LEDs, and that is the whole point of it: warm whites, ambers and skin tones come out looking like light rather than like a color mix. Four pods pivot independently on a 45.7-inch bar, so one fixture can cover a dance floor and a back wall at the same time from a single tripod.

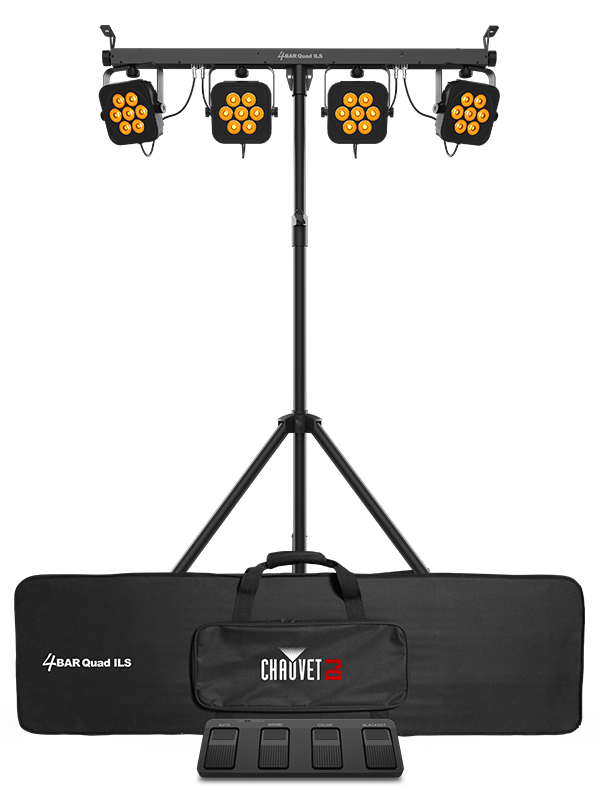

The tripod, carry bags and wireless footswitch ship with it. From there control goes as deep as you need - built-in programs, an optional IRC-6 remote, D-Fi USB for wireless master/slave or DMX, ILS for automatic coordination with a GigBAR or ILS Command, or straight DMX on 4, 6 or 19 channels. Built-in bolts mount it to truss when the tripod stays in the van. It draws 80 W at 120 V and weighs 12.2 lb.

Light Source	28 LEDs (quad-color RGBA) 3.5 W, 50,000-hour life
DMX Channels	4, 6 or 19; 3-pin XLR
Beam / Field Angle	14° / 23°
Illuminance	2,353 lux @ 2 m per pod
Strobe Rate	0 to 20 Hz
Power and Current	80 W, 1.2 A @ 120 V; 78 W, 0.6 A @ 230 V
Size / Weight	45.7 x 2 x 12 in (1186 x 50.8 x 305 mm); 12.2 lb (5.5 kg)
Included	Tripod (7 ft 4 in), carry bags, wireless footswitch, power cord
