Chauvet DJ Abyss 2
Abyss 2 projects a moving, multicolored water ripple. The useful part is that it works in a clean room: most liquid-effect fixtures need haze to show anything, and this one puts a legible pattern on a surface with nothing in the air. Ripple movement and color are on separate controls, so you can hold a slow drift while the color changes, or freeze the color and speed the water up.

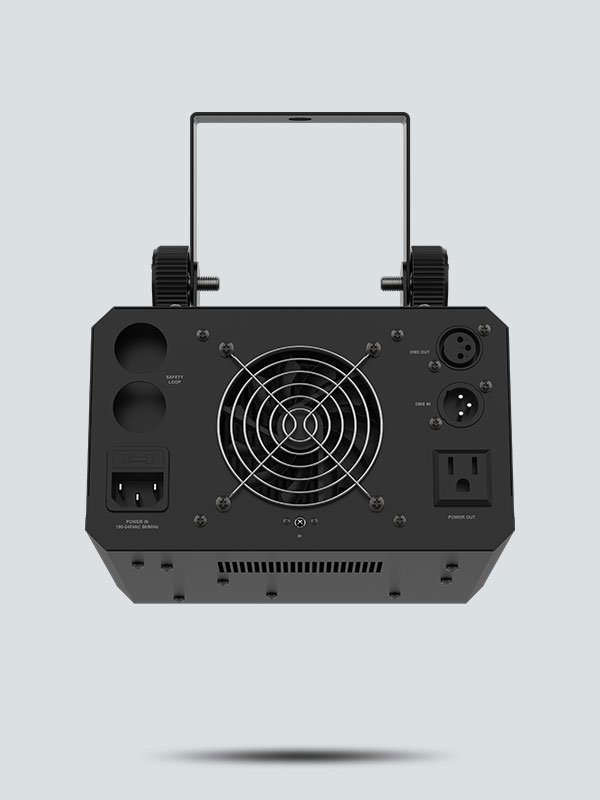

A single 60 W LED drives it through a 60 degree coverage angle at 5,010 lux at 2 m, with five colors plus white and a rainbow scroll. It takes three DMX channels over 3-pin XLR, and a manual focus knob sharpens the pattern at whatever throw you have. If there is no console in the rig, the digital display or the optional IRC-6 remote reaches most settings, and up to 7 units power link at 120 V.
| Light Source | 1 LED 60 W, (2 A), 50,000 hours life expectancy. |
|---|---|
| Illuminance | 5,010 lux @ 2 m |
| Coverage Angle | 60 degrees |
| Colors | 5 + white, Rainbow scroll |
| DMX Channels | 3 |
| DMX Connectors | 3-pin XLR |
| Size | 8 x 7 x 6 in (203 x 178 x 152 mm) |
| Weight | 6.2 lb (2.8 kg) |
