Chauvet DJ CoDot ILS

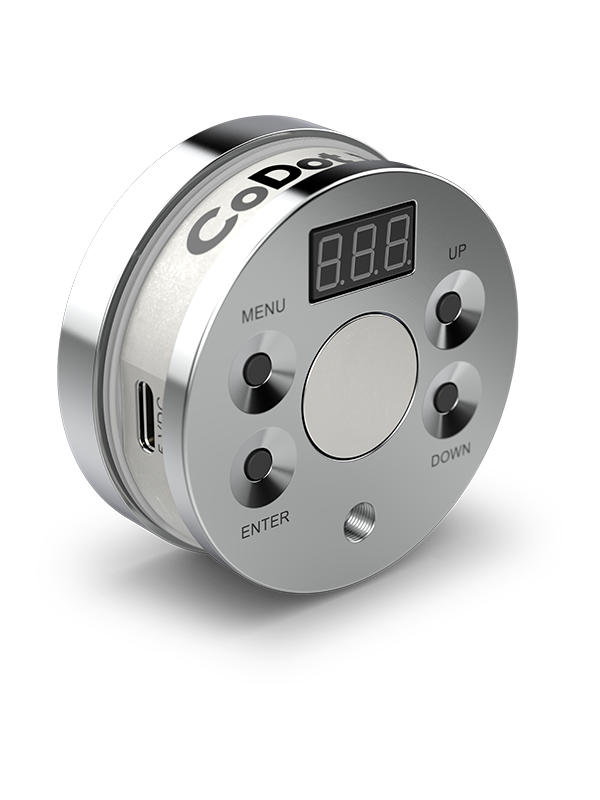

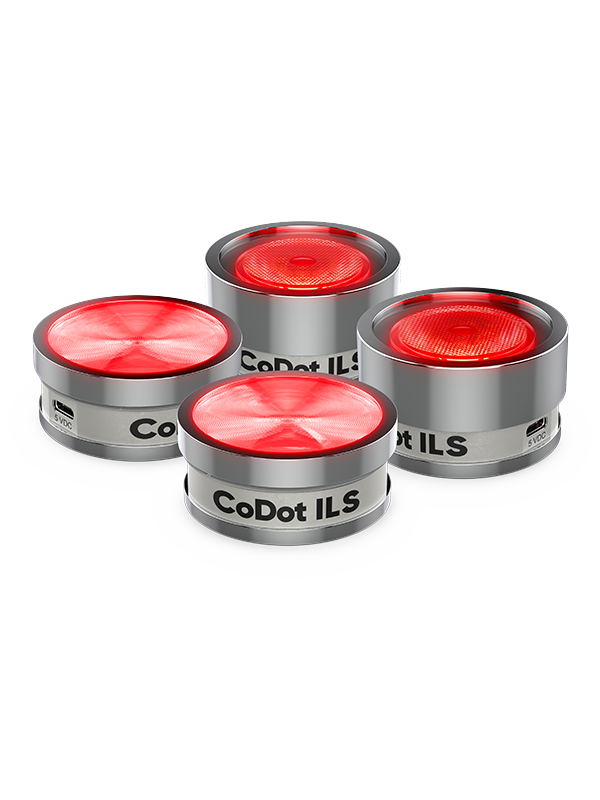

A CoDot ILS is about the size of a hockey puck, and that is what it is for: the shelf behind a bar, the underside of a DJ facade, a niche in a wall, anywhere a par can is simply too big to hide. Each of the four units in the pack carries one 3-watt quad-color RGBW LED and threads onto an M6 stud, and each ships with a spare lens - 19 degrees installed, 14 degrees in the box - so the same fixture can wash a small surface or throw a tighter accent.

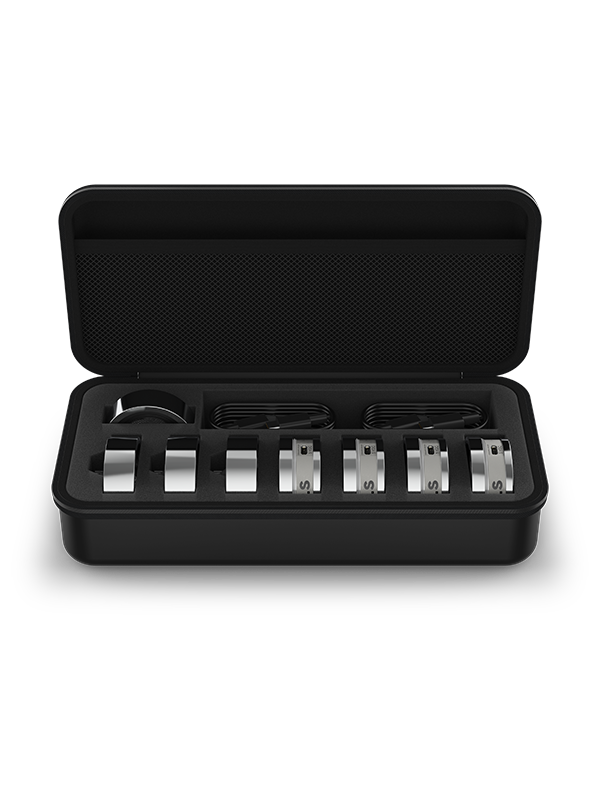

Control is wireless in three flavours: ILS, so a GigBAR or ILS Command runs them alongside everything else; a built-in 2.4 GHz D-Fi receiver good for 600 feet; and the optional RFC or RFC-XL handheld remotes. DMX modes are 4 or 6 channels. The pack includes eight lenses, three short and three long USB cables, an external supply and a carry case, and four units power-link on a single 120 V circuit. Each draws 7 watts.

Pack Contents	4 x CoDot ILS, 8 lenses, 3 x 0.5 m and 3 x 2 m USB cables, power supply, case
Light Source	1 LED (quad-color RGBW) 3 W per unit, 50,000-hour life
DMX Channels	4 or 6
Beam Angle	19° installed lens; 14° included lens
Illuminance	256 lux @ 2 m (19°); 442 lux @ 2 m (14°)
Wireless	2.4 GHz, 600 ft (183 m) unobstructed; ILS, RFC, RFC-XL
Power	7 W per unit; 4 units power-link @ 120 V
Size / Weight (each)	2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm); 0.2 lb (0.1 kg)
