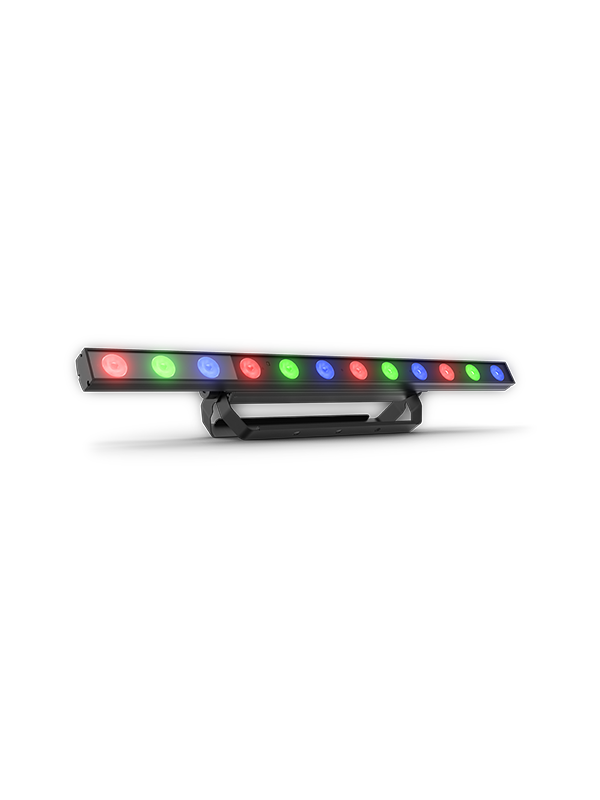

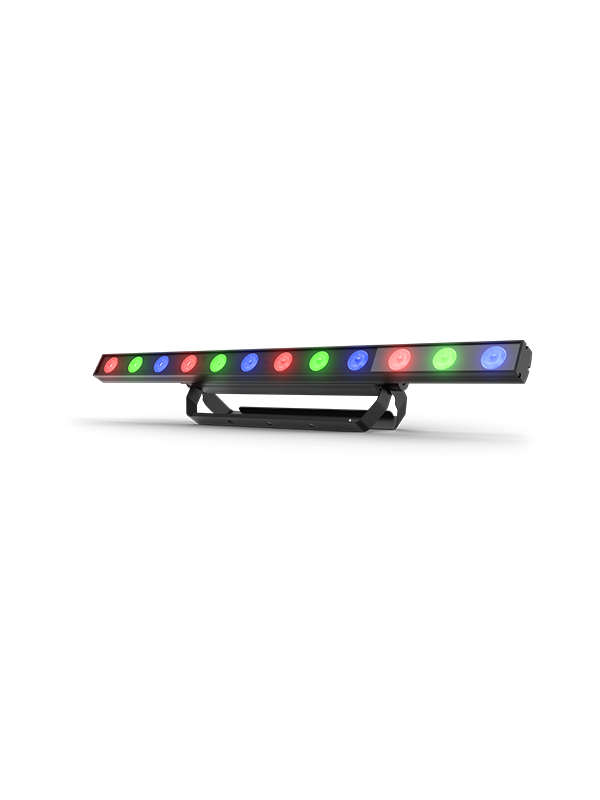

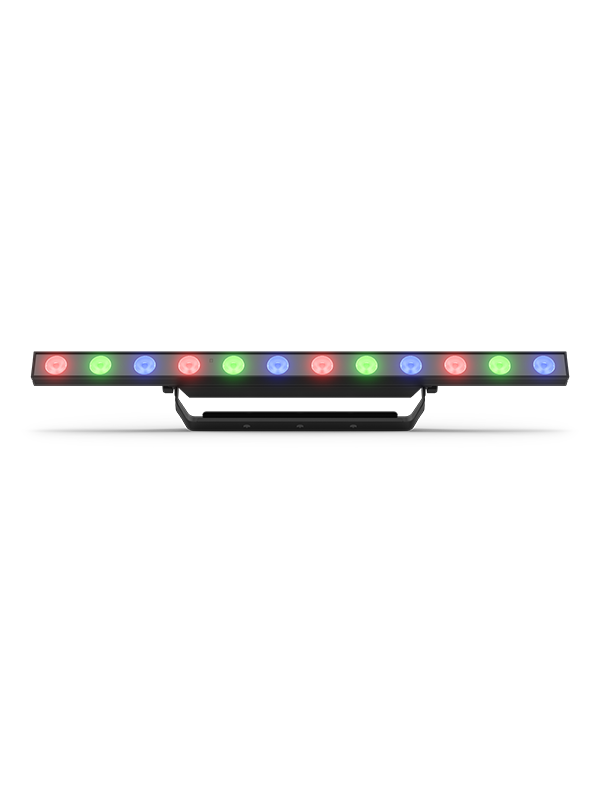

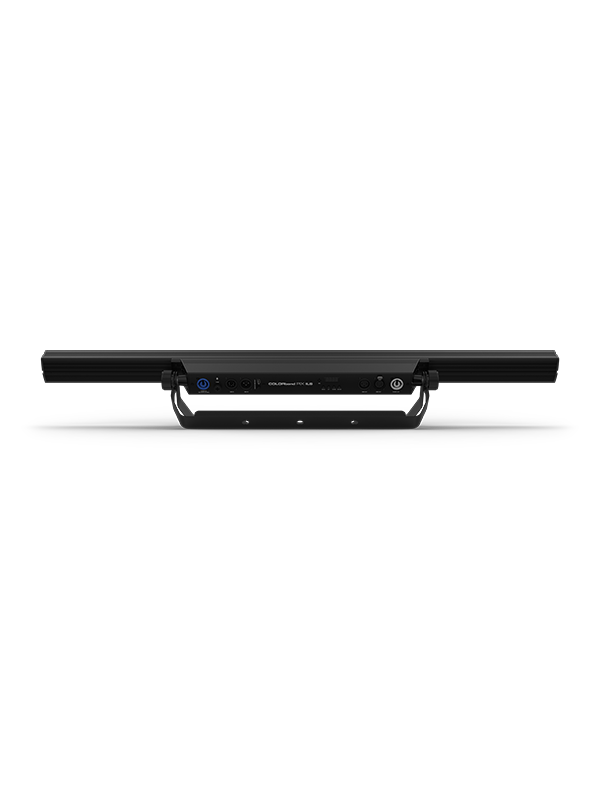

Chauvet DJ COLORband Pix ILS Pixel-Mapping Strip Light

The COLORband Pix ILS gives each of its twelve tri-color LEDs its own address, so the same fixture is a pixel-mapped animation surface, a blinder and a plain wall washer depending on which of its ten DMX modes you select. At the low end three channels is all it needs; at the top, 41 channels expose every pixel for ShowXpress Pixels or any mapping software.

It draws 49 watts and power-links nineteen deep on a 120 V circuit, so a full upstage row is one cable run. High-frequency dimming keeps it flicker-free on camera, and with no fans or moving parts it stays silent through a speech. Control is ILS for automatic coordination with a GigBAR or ILS Command, the built-in RF receiver with an optional RFC or RFC-XL, D-Fi USB for wireless master/slave or DMX, or wired DMX on 3- or 5-pin XLR.

Light Source	12 LEDs (tri-color RGB) 3 W, 50,000-hour life
DMX Channels	3, 4, 6, 7, 8, 9, 12, 18, 36 or 41; 3- and 5-pin XLR
Beam / Field Angle	14° / 27°
Output	1,402 lumens; 4,142 lux @ 2 m, 663 lux @ 5 m
Strobe Rate	0 to 20 Hz
Power and Current	49 W, 0.7 A @ 120 V; 48 W, 0.4 A @ 230 V
Power Linking	19 units @ 120 V; 35 units @ 230 V
Size / Weight	38.9 x 2 x 6.2 in (987 x 49 x 157 mm); 7 lb (3.2 kg)
