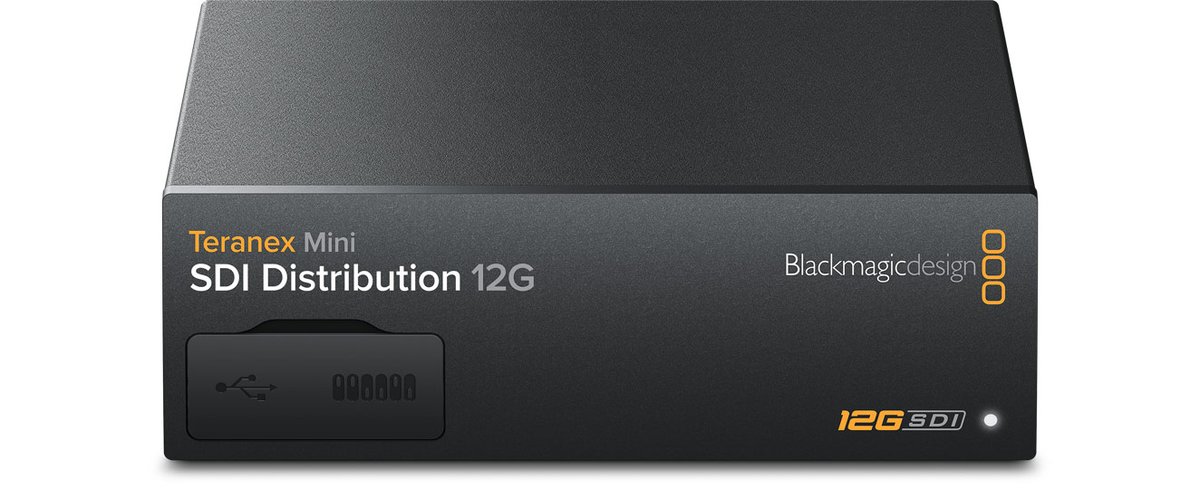

Blackmagic Teranex SDI Distribution 12G Encoders

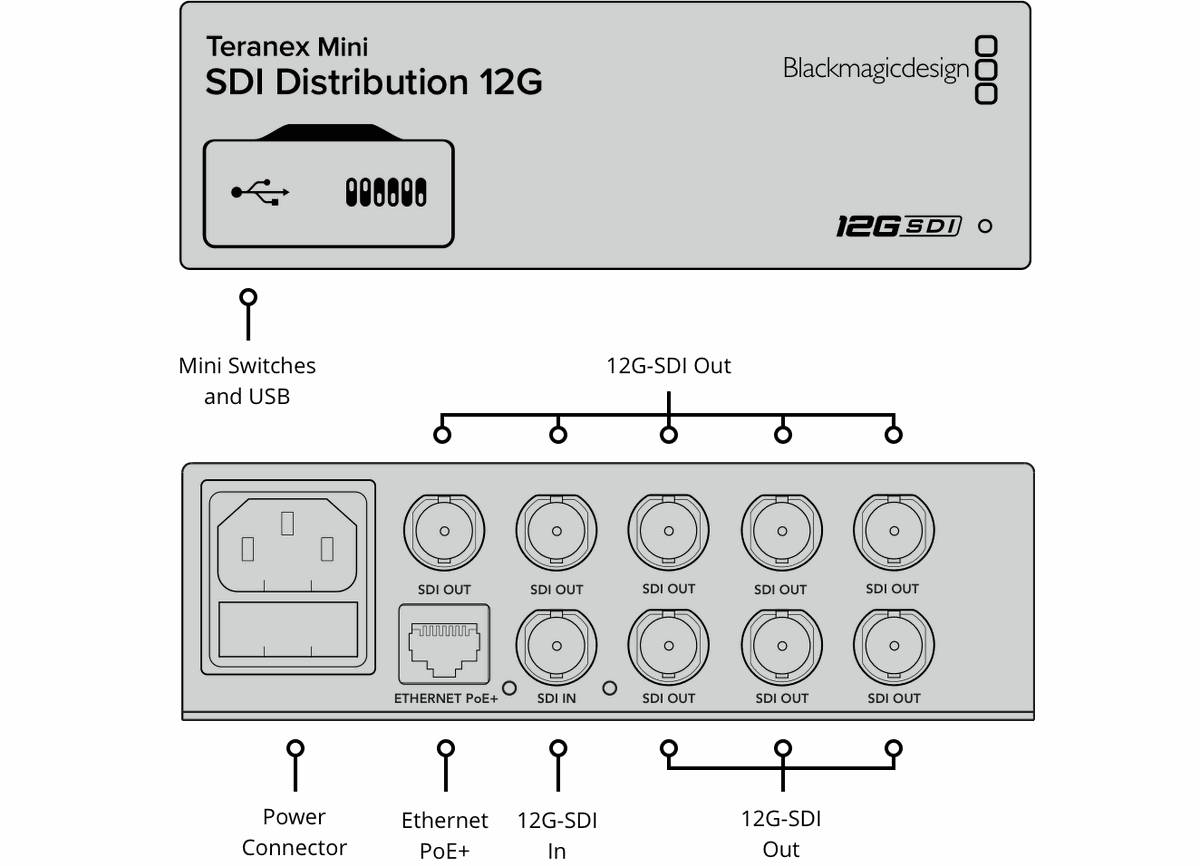

The Teranex Mini SDI Distribution 12G takes one SDI input and fans it out to eight SDI outputs, with full SDI re-clocking on every output. The multi rate 12G-SDI connections automatically switch across all SD, HD and Ultra HD formats up to 2160p60, so a single source can feed monitors, switchers and encoders across a facility without a separate distribution amplifier.

Each output re-clocks the signal to hold timing over longer cable runs, and 16 channels of embedded audio pass through untouched. The unit uses the standard Teranex Mini chassis and works with the optional Rack Shelf and Smart Panel.
