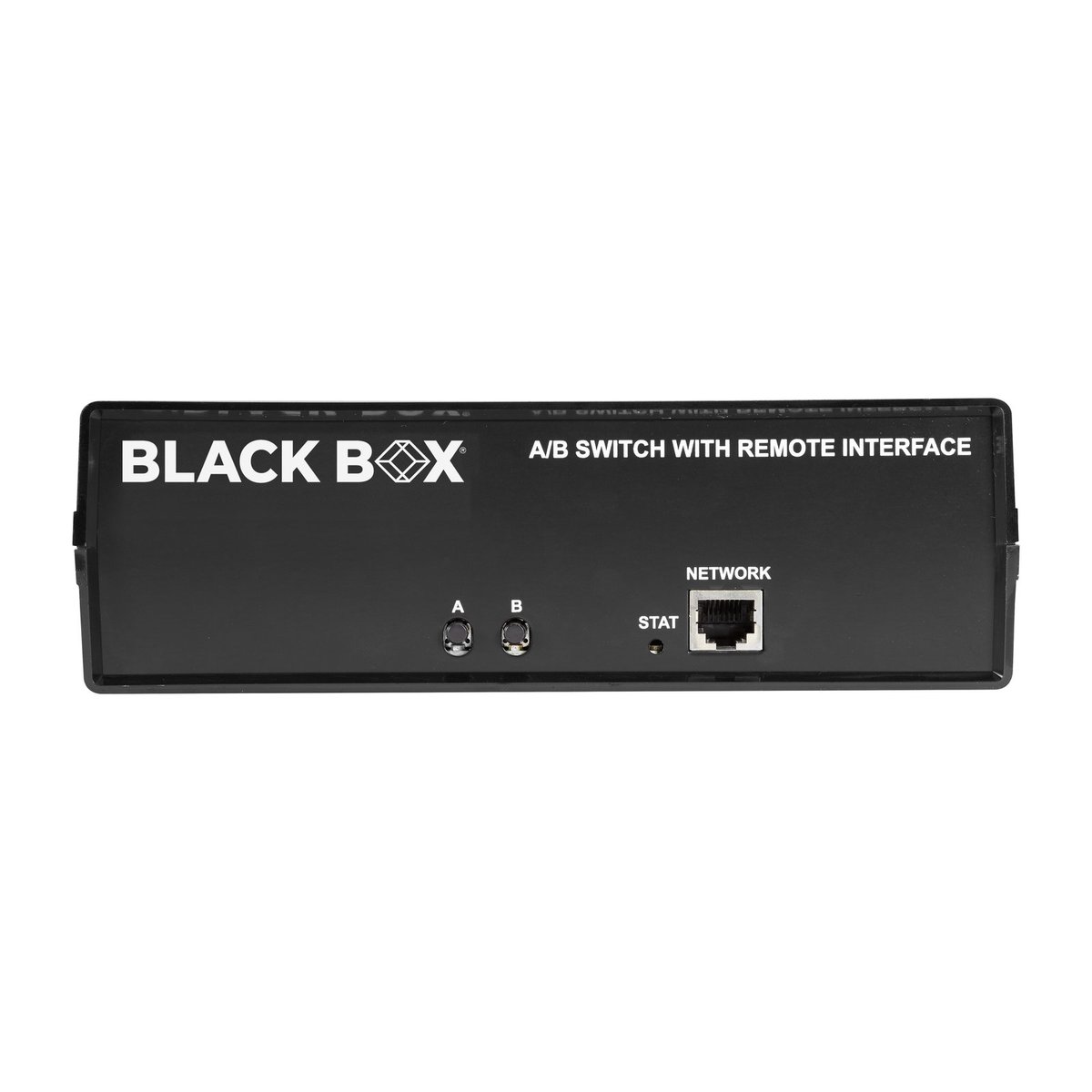

Black Box SW1041A CAT6 A/B Switch - Latching RJ45 Remote Controlled Ethernet RS232, Dry Contact

Black Box builds the SW1041A to switch a connection between two destinations: CAT6 A/B Switch, Latching RJ45 Remote Controlled Ethernet RS232, Dry Contact. Connectors are A/B switch Ports: (3) RJ45. Tested to 1,000,000 cycles. Manual control of the switch port supported through A/B push button on the front.

Power: Input: 100-240 VAC, 50-60 Hz, autosensing. It measures 2.5-in. H x 6.25-in. W x 8.1-in. D (6.4 x 15.9 x 0.6-cm) and weighs 4-lb. (1.82-kg).

Data Rate	10/100/1000 and 10G Ethernet
Connectors	A/B switch Ports: (3) RJ45; Ethernet Control Port: (1) RJ45 10BASE-T Port for remote Control interface; Serial Control Port: DB9 (Female); Remote Control/status Port: (1) 6-Position Terminal Block; Power: (1) 2.1 x 5.5-mm Power Input
Power	Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 12 VDC
Dimensions	2.5-in. H x 6.25-in. W x 8.1-in. D (6.4 x 15.9 x 0.6-cm)
Weight	4-lb. (1.82-kg)
Country of Origin	United States
Switching Speed	Typical: 5 msec; Maximum: 10 msec
