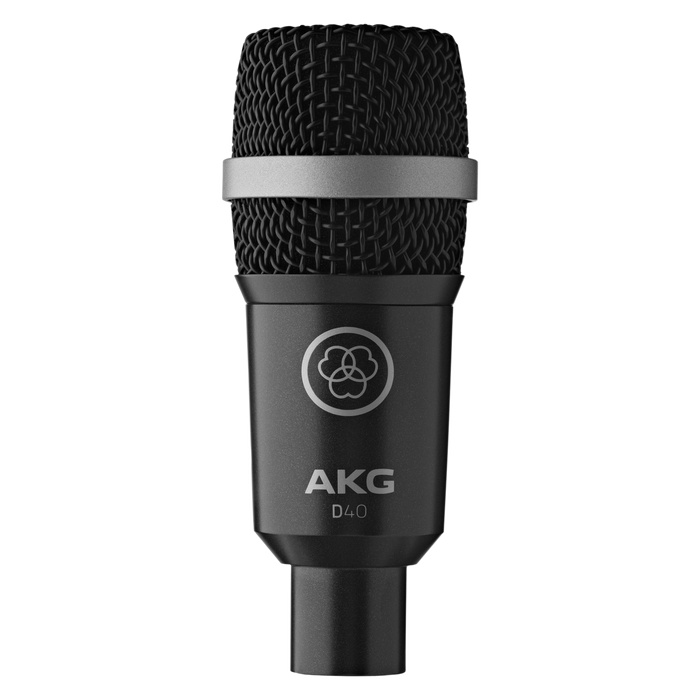

AKG D40 Instrument Microphone
The D40 is a professional instrument dynamic with a solid all-metal body built for the wear of nightly stage use. Its patented Varimotion diaphragm uses a laminated material to damp high resonance peaks, giving a punchy, detailed sound on toms, snare, congas, brass, and cabinets while a sturdy wire-mesh cap lets it take very high SPL without complaint.

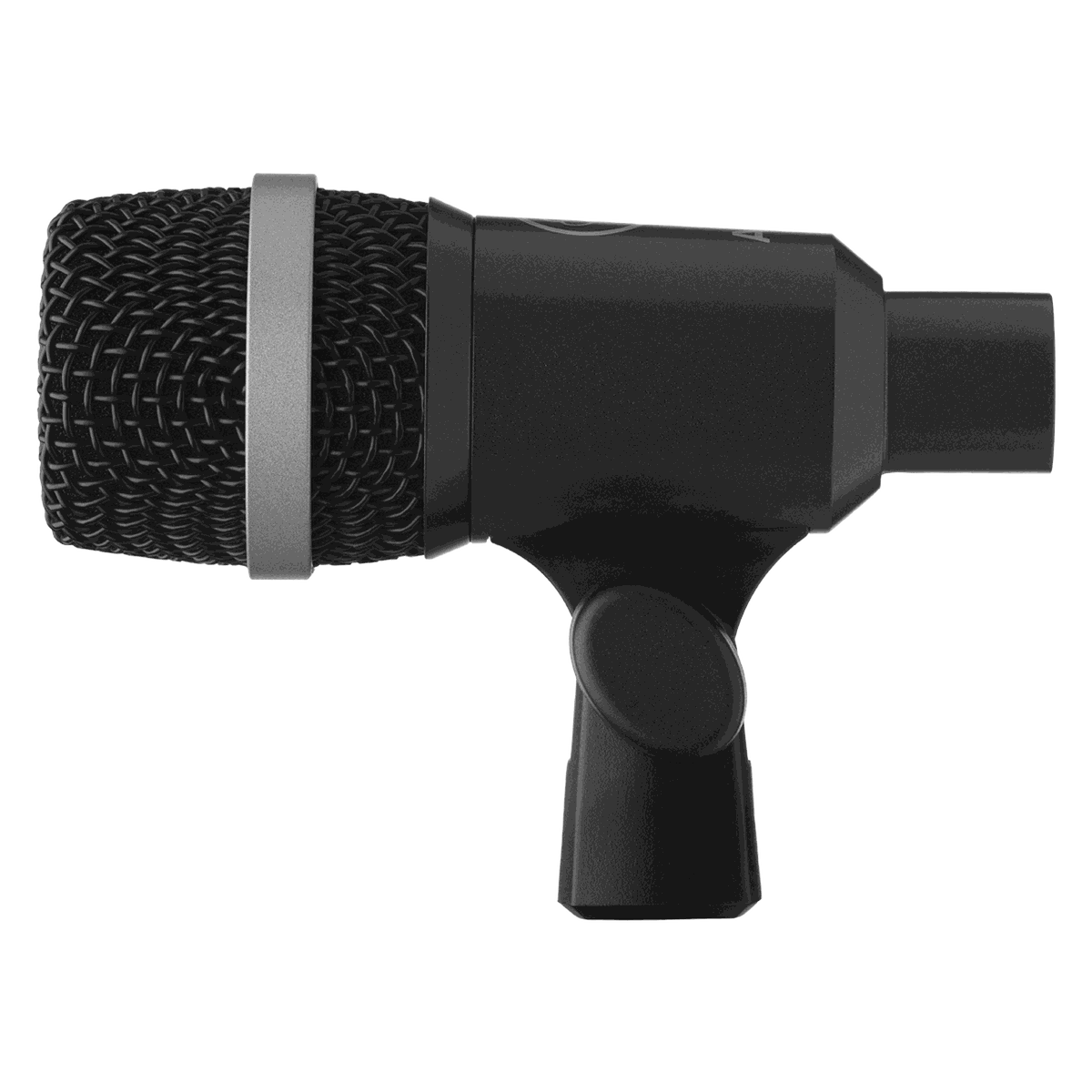

An integrated stand adapter and the included H440 mounting bracket let it clamp quickly to a drum rim or place low in front of an amp, so one microphone covers a range of close-miking jobs. The cardioid pattern rejects spill from neighboring sources on a busy stage.
| Type | Dynamic pressure-gradient instrument microphone |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Range | 50 - 20,000 Hz |
| Sensitivity | 2.5 mV/Pa |
| Max SPL (1% / 3% THD) | 147 / 156 dB SPL |
| Electrical Impedance | >= 600 Ohms |
| Dimensions | 104 mm long, 44 mm diameter; 245 g |
| Output | 3-pin XLR; includes H440 adapter plate and bag |
