AKG C414 XLS Multi-Pattern Condenser Microphone
The C414 XLS is the linear, neutral member of the C414 family, keeping the transparent character of the classic C414 B-ULS. Where the XLII adds a presence lift, the XLS is voiced for highest linearity and even response, making it the choice when you want the source captured exactly as it is - orchestral sections, acoustic guitar, drum overheads, and detailed room work.

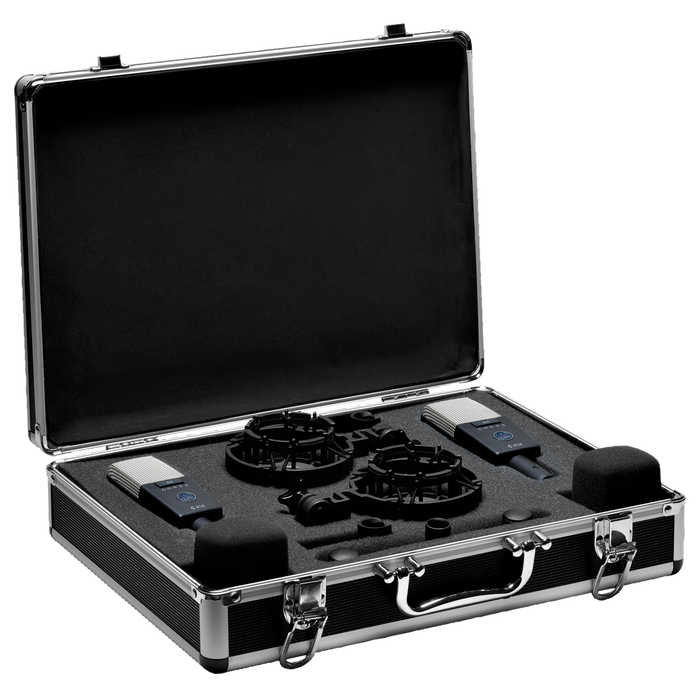

It offers nine selectable polar patterns, three attenuation levels, and three bass-cut filters, with a peak-hold LED for overload and lockable controls for live and installed use. The single ships with the H85 shock mount, PF80 pop filter, W414 windscreen, and case; the stereo set adds a second factory-matched microphone with a stereo bar for accurate stereo recording.
| Type | Large-diaphragm multi-pattern condenser |
|---|---|
| Polar Patterns | Nine (Omni, Wide Cardioid, Cardioid, Hypercardioid, Figure-of-eight + intermediates) |
| Frequency Range | 20 - 20,000 Hz |
| Equivalent Noise Level | 6 dB-A |
| Sensitivity | 23 mV/Pa |
| Pad / Bass-Cut | -6 / -12 / -18 dB pad; 160 / 80 / 40 Hz low-cut |
| Powering | 44 - 52 V phantom, 4.5 mA |
| Output | 3-pin XLR; single includes H85 mount, PF80 pop filter, W414 windscreen, case |
