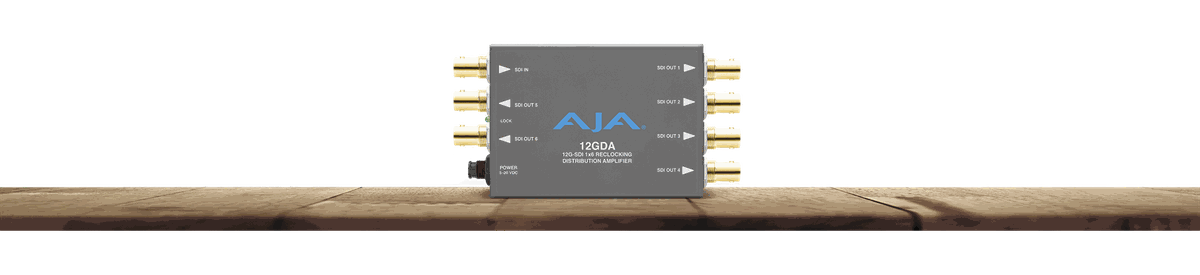

AJA 12GDA Miniature 1x6 Reclocking Distribution Amplifier

The 12GDA is a compact 1x6 reclocking distribution amplifier for 12G, 6G, 3G, and 1.5G-SDI as well as HD-SDI and SD-SDI signals. It takes a single serial digital source and drives six separately buffered outputs, each a clean reclocked copy of the recovered input, so one feed can reach a monitor wall, a router, and downstream converters at once. Automatic input detection and reclocking mean it locks to whatever rate arrives without manual setup, and it carries embedded audio straight through.

Built into AJA's throw-down mini-converter enclosure, it tucks in behind a rack or on a cart and shows signal presence on an LED indicator. Automatic cable equalization recovers the incoming signal after long coax runs, and the unit runs on 5 to 20 VDC (roughly 3 watts) from an external power supply.
