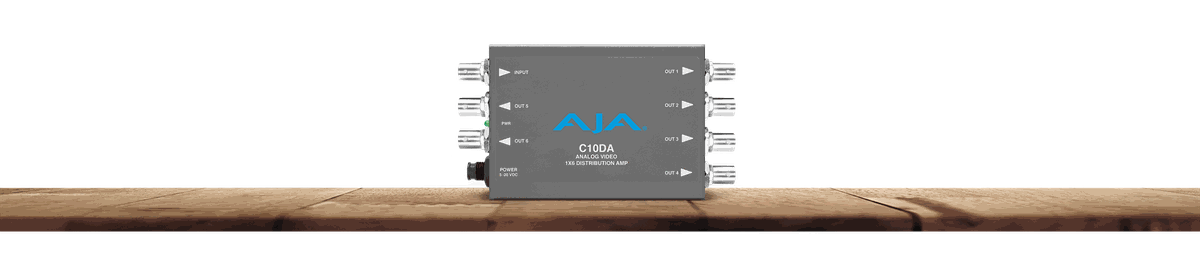

AJA C10DA 1x6 Analog Video Distribution Amplifier

The AJA C10DA is a 1x6 analog video distribution amplifier that takes one composite or component input and drives six buffered copies out over BNC. It supports NTSC and PAL and includes gain adjustment to compensate for long cable runs, so a single source can feed monitors, recorders, and downstream gear without signal loss across a facility.

Beyond video, the C10DA can distribute bi-level or tri-level reference sync, making it useful for feeding house sync to multiple destinations in an HD plant when reference is supplied externally. Video bandwidth runs 0 to 6 MHz within 0.1 dB, gain is switchable from -3 to +3 dB in 1 dB steps, and each output can be 75 ohm terminated or non-terminated. A universal power supply with international plugs is included.

Function	1x6 analog video distribution amplifier
Input	1x BNC composite or component
Outputs	6x BNC
Signal Support	NTSC, PAL, bi-level and tri-level reference sync
Video Bandwidth	0 to 6 MHz, plus or minus 0.1 dB
Gain	-3 dB to +3 dB in 1 dB steps (plus or minus 0.3 dB)
Termination	75 ohms or non-terminated
Power	Universal power supply included
Operating Temperature	0 to 40 C (32 to 104 F)
