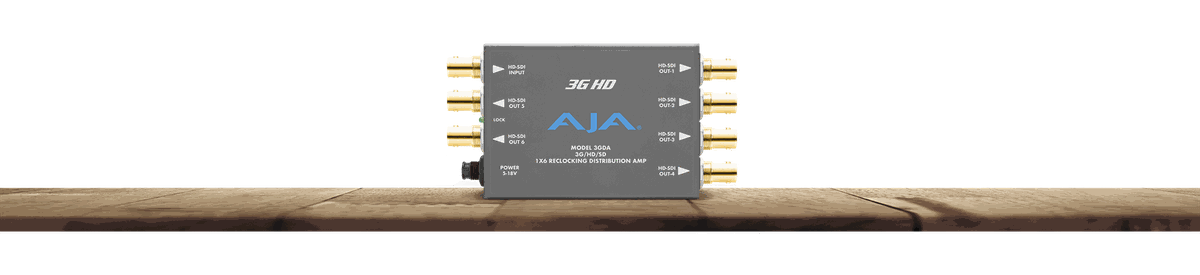

AJA 3GDA Palm-sized 1x6 Distribution Amp

The 3GDA takes a single SD, HD, or 3G-SDI source and fans it out to six separately buffered BNC outputs, reclocking and equalizing the signal on the way through. Automatic input detection means you drop a feed on the input BNC and the unit locks to 270 Mb, 1.5 Gb, or 3 Gb with no menu to set, while cable equalization pulls a clean signal back out of long coax runs (up to 120m at 3 Gb, 200m at 1.5 Gb, and 350m at SD on 1694 coax). Embedded audio rides through untouched on every output.

Housed in a miniature metal shell that runs on regulated 5 to 18V DC from the included supply, the 3GDA drops into a rack shelf, a cart, or a truck wherever one source has to reach many monitors, recorders, and switchers at once. Input and output return loss stays above 15 dB across the full 270 Mb to 3 Gb range, so all six drops hold up under load.
