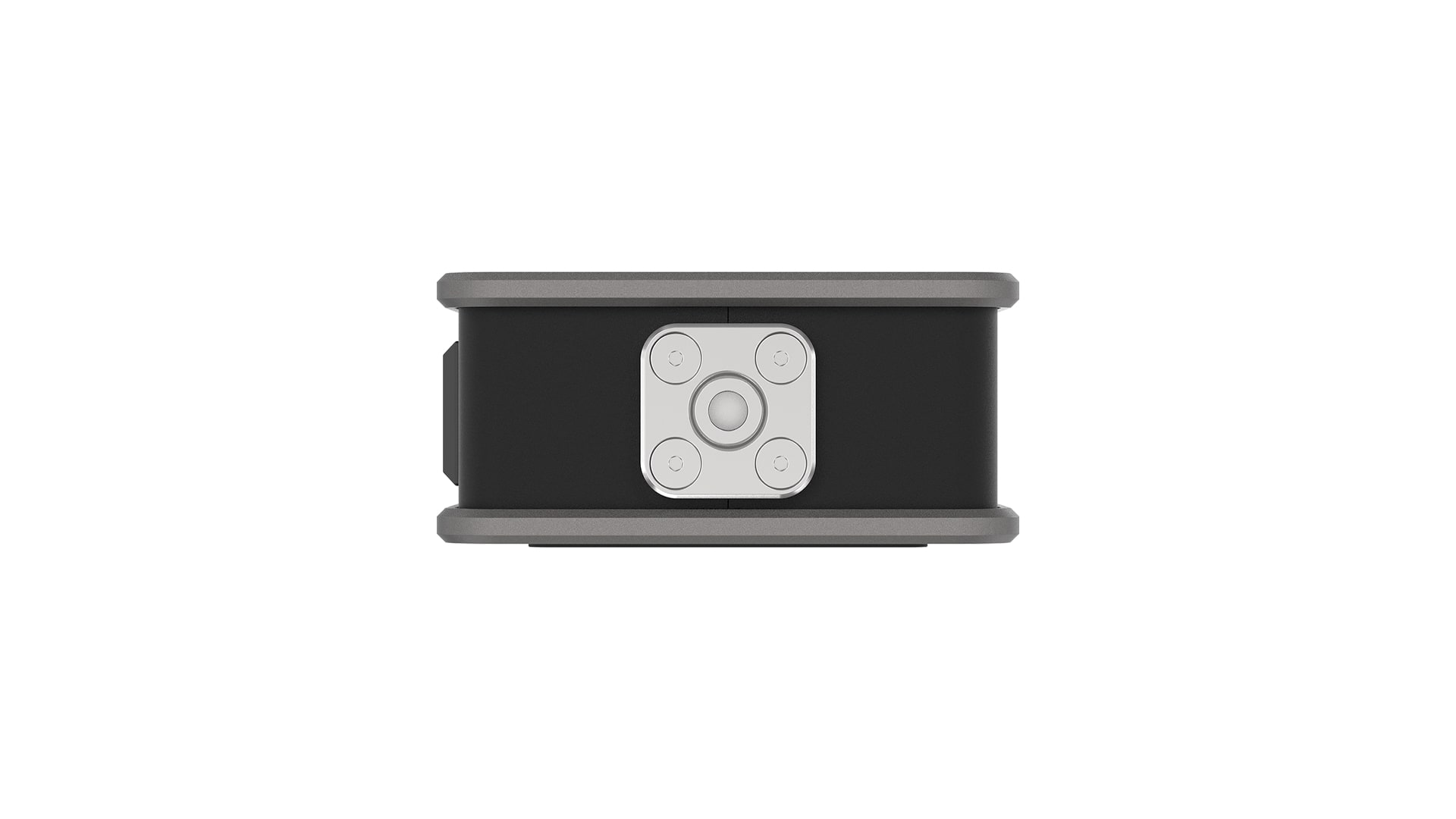

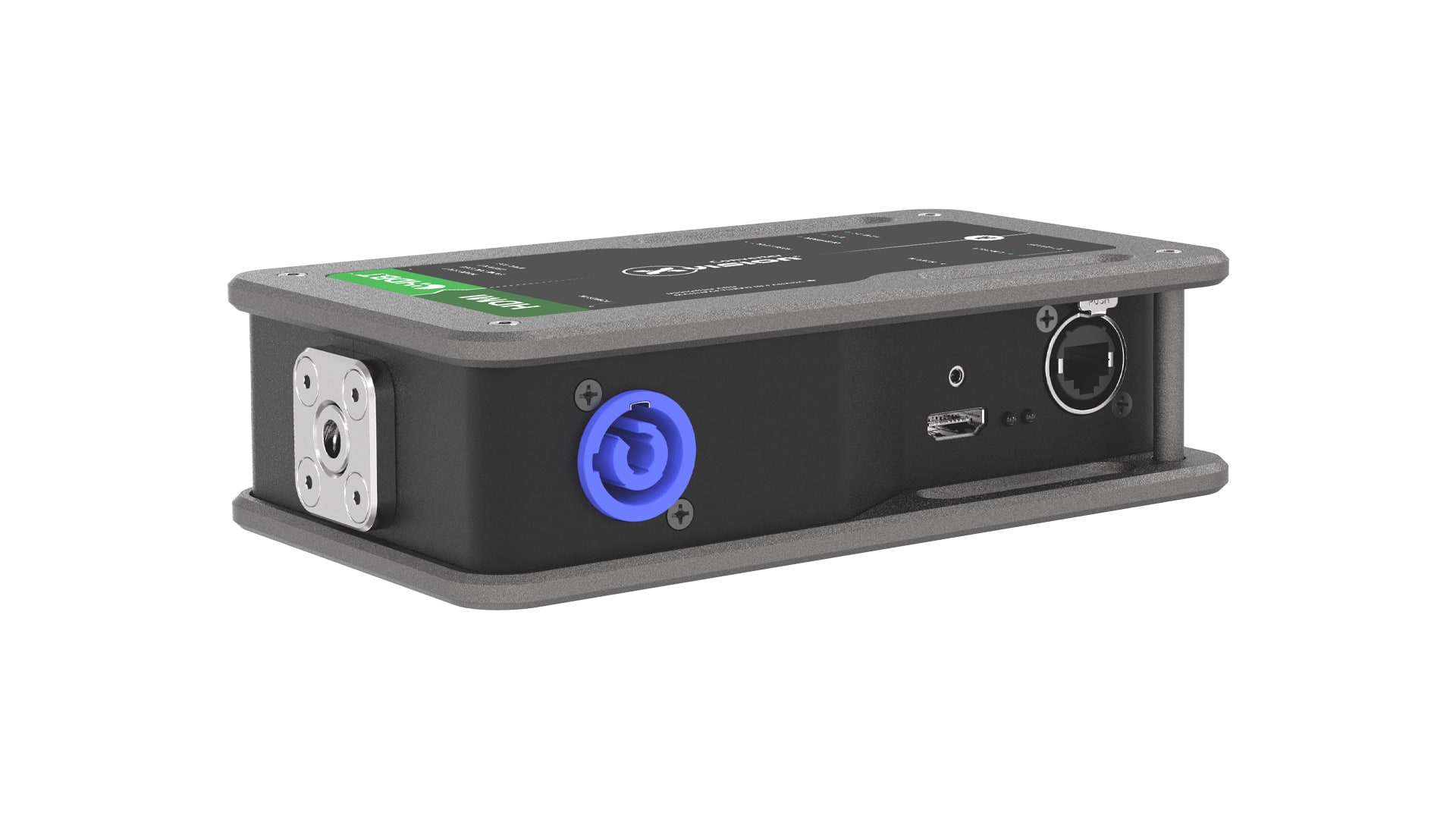

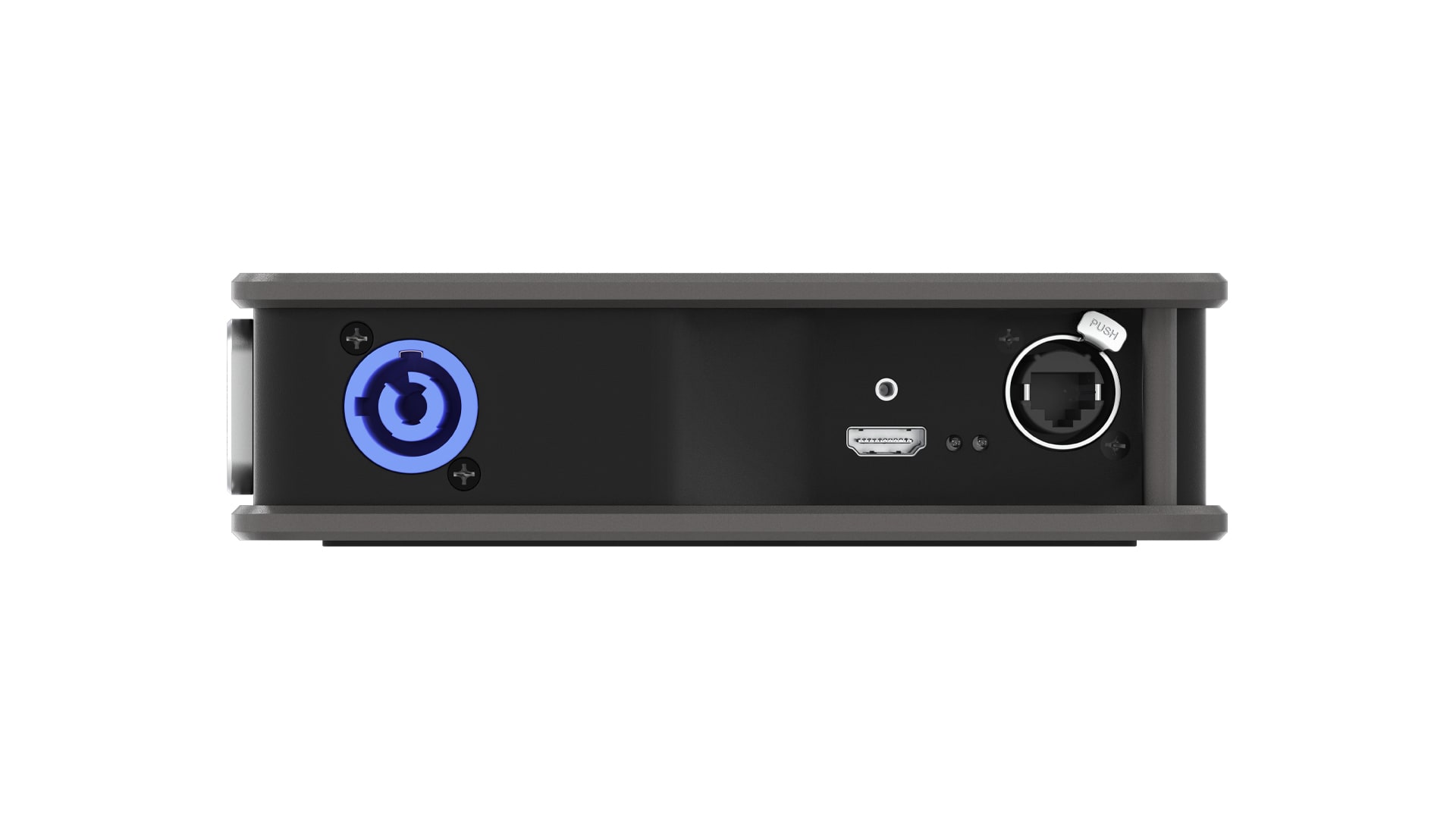

Theatrixx xVision HDMI to HDBaseT Transmitter - XVVHDMI2HDBT

XVVHDMI2HDBT is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It carries HDMI over a single shielded twisted-pair run. Input is 1 x HDMI 1.4 type A with locking system and output is 1 x HDBaseT 1.0 on shielded EtherCON, connector.

Power is Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
