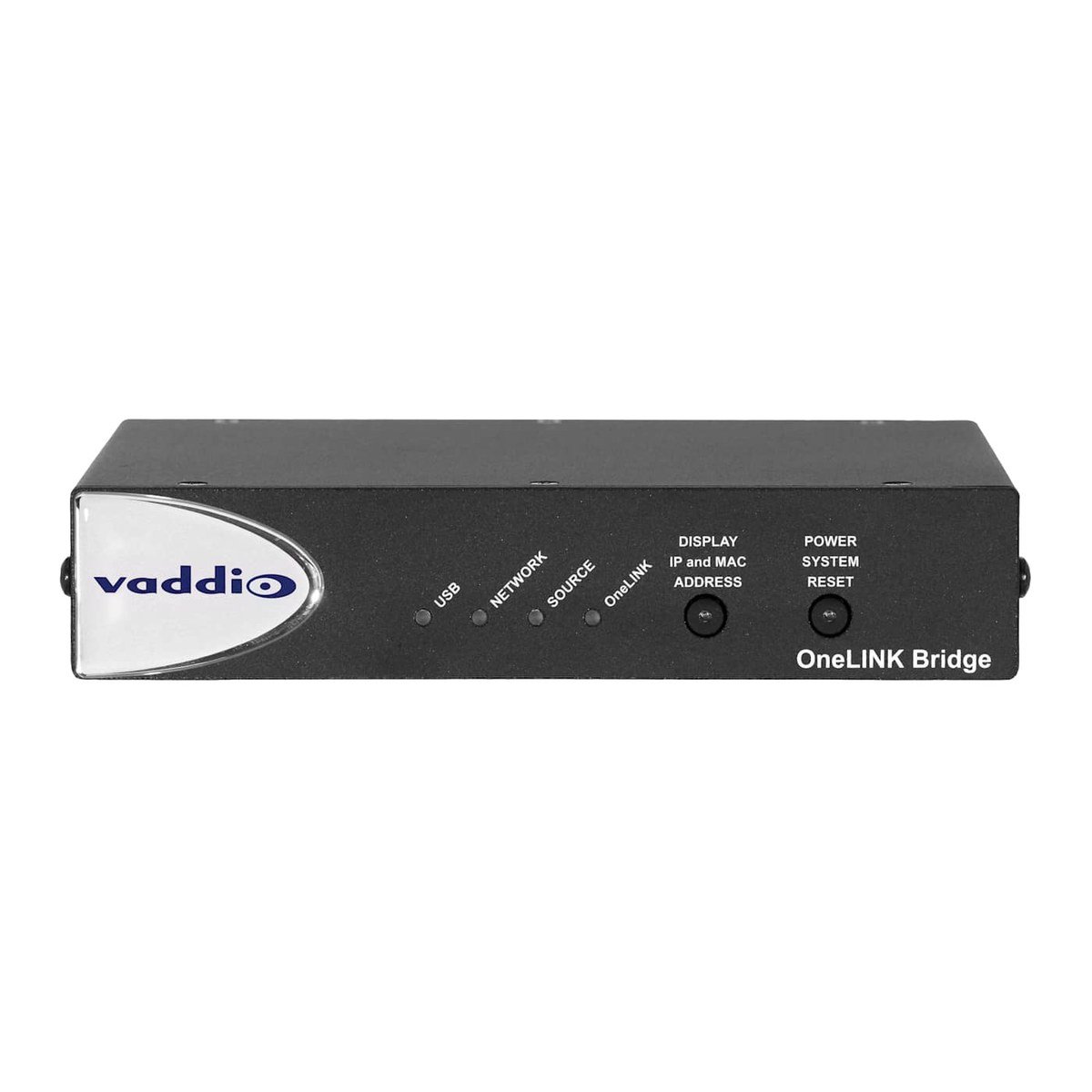

Vaddio OneLINK Bridge for HDBaseT Cameras

The OneLINK Bridge is Vaddio's AV interface for HDBaseT cameras, and it does two jobs at once: it extends the camera up to 328 feet over a single Cat-5e cable that carries video, power, and control, and it turns any conference room into a BYOD environment by delivering a USB 3.0 media stream to soft codecs like Zoom, Teams, and WebEx. It works with RoboSHOT 12 HDBT, RoboSHOT 30 HDBT, RoboSHOT 20 UHD, and DocCAM 20 HDBT cameras.

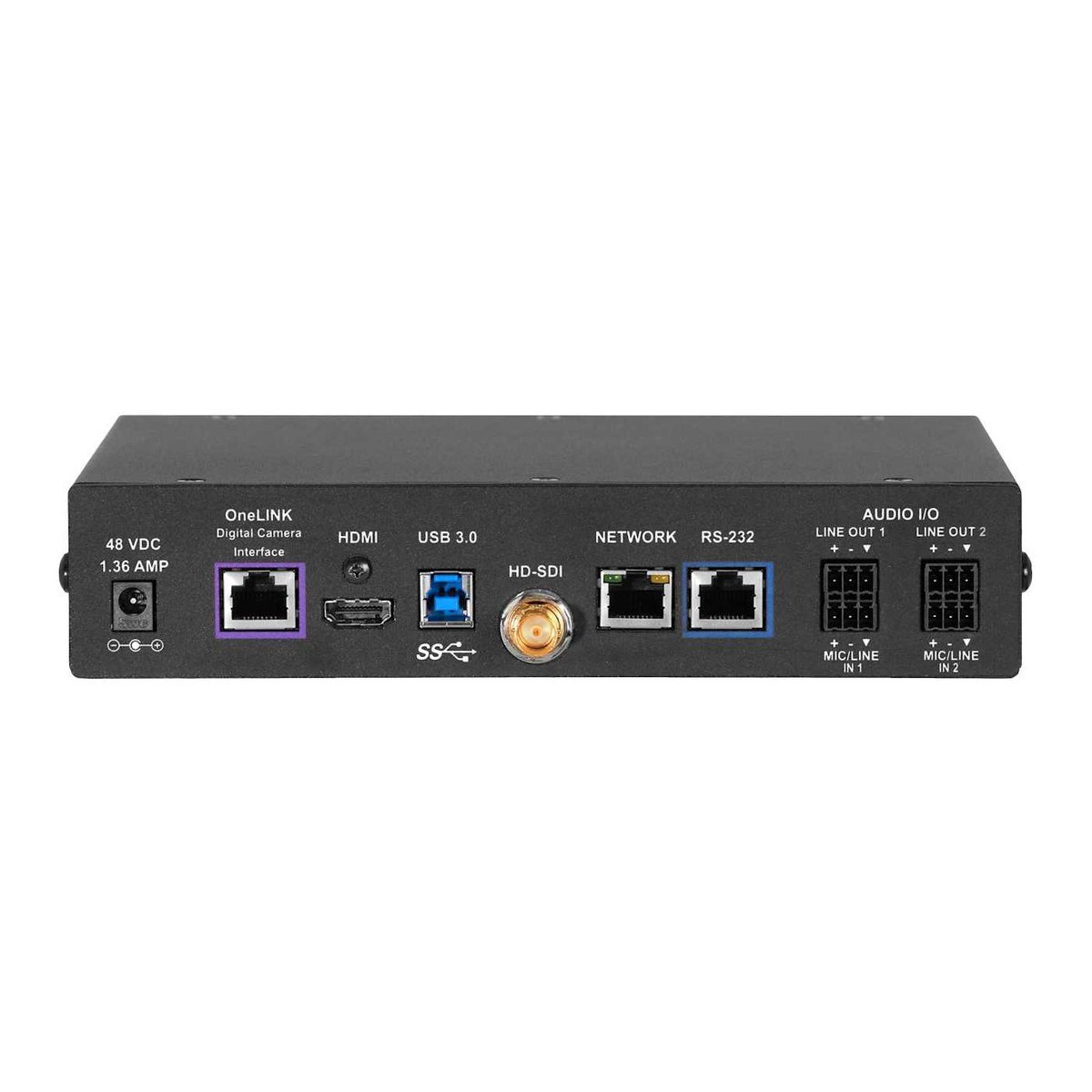

On the output side the Bridge provides simultaneous uncompressed USB 3.0, HDMI up to 2160p/30, and 3Gb/s HD-SDI, and passes the camera's IP stream when available. Vaddio's AV Bridge audio functionality is built in: two balanced mic/line inputs with phantom power, two balanced line outputs, and a 6x10 matrix mixer route audio through any output. Control runs over the web interface, Telnet, and RS-232 pass-through. The unit ships with the OneLINK Bridge interface, a 48V power supply, four 3-position Phoenix connector plugs, a 6 ft USB 3.0 cable, an RS-232 adapter, and a Quick-Start Guide.
