Vaddio Extreme USB 2.0 Extenders

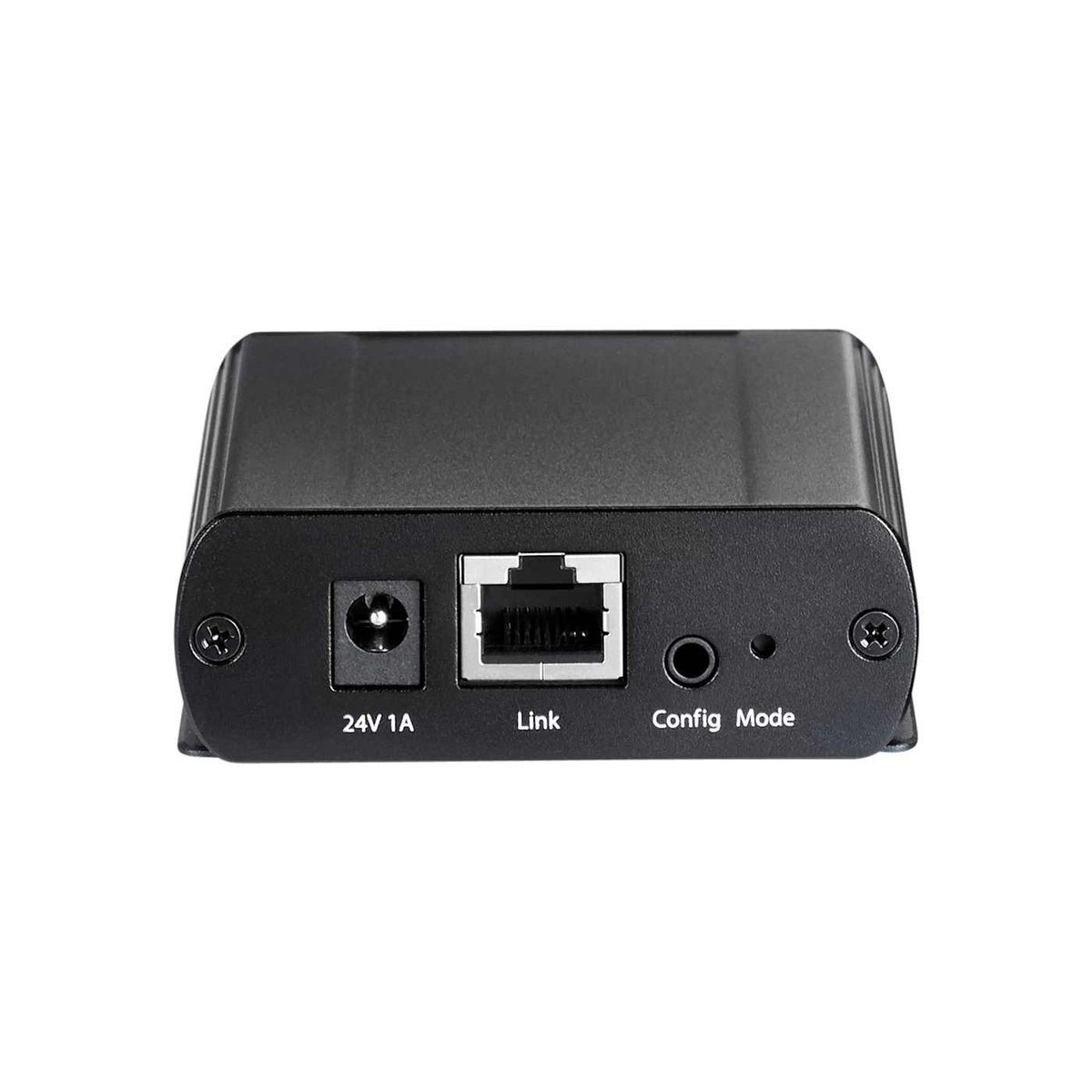

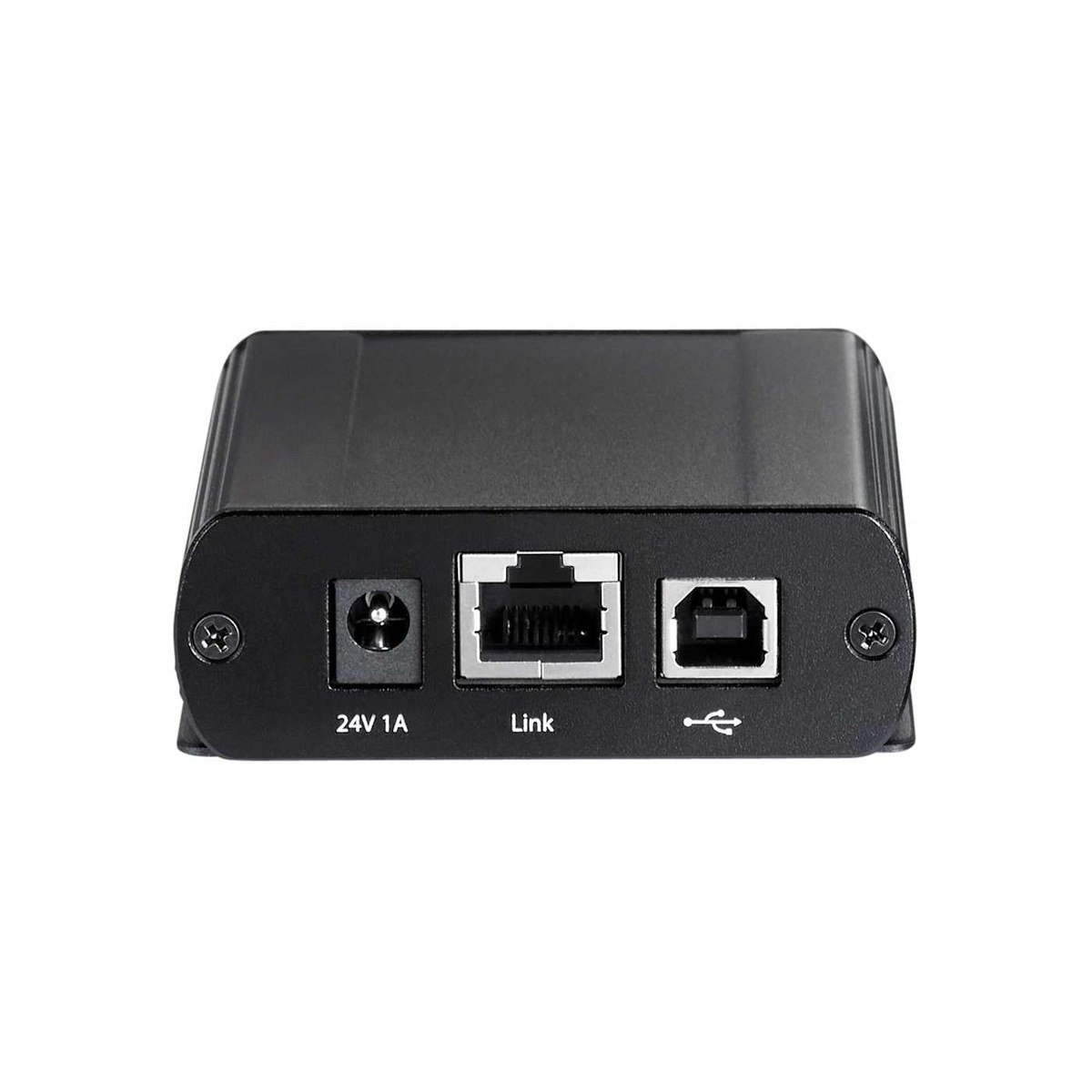

The Extreme USB 2.0 Extenders are a two-box set that moves a USB device away from the computer driving it. The transmit unit sits at the device and carries the USB type-A female port; the receive unit sits at the host PC; between them a run of Cat-5e or better carries USB 2.0 high speed and USB 1.1 traffic up to 100 m (328.1 ft). It uses Extreme USB Long Reach extension built on the Lion's Gate USB 2.0 extension ASIC.
This is the honest answer for a camera, a touch panel or an audio interface that has to live at the front of a room while the PC lives in a rack, where a passive cable would have given up at 5 m. The transmit side is powered by the supplied 5 VDC supply at the device end.
| Type | USB 2.0 extender pair, transmit and receive |
|---|---|
| Maximum Distance | 100 m (328.1 ft) |
| Cable | Cat-5e or better |
| Supported Devices | USB 2.0 high speed and USB 1.1 |
| Technology | Extreme USB Long Reach, Lion's Gate USB 2.0 extension ASIC |
| Device-Side Port | USB type-A female on the transmit unit |
| Power | 5 VDC supply at the transmit unit |
| Warranty | 3 years |
