RCF COMPACT M 04

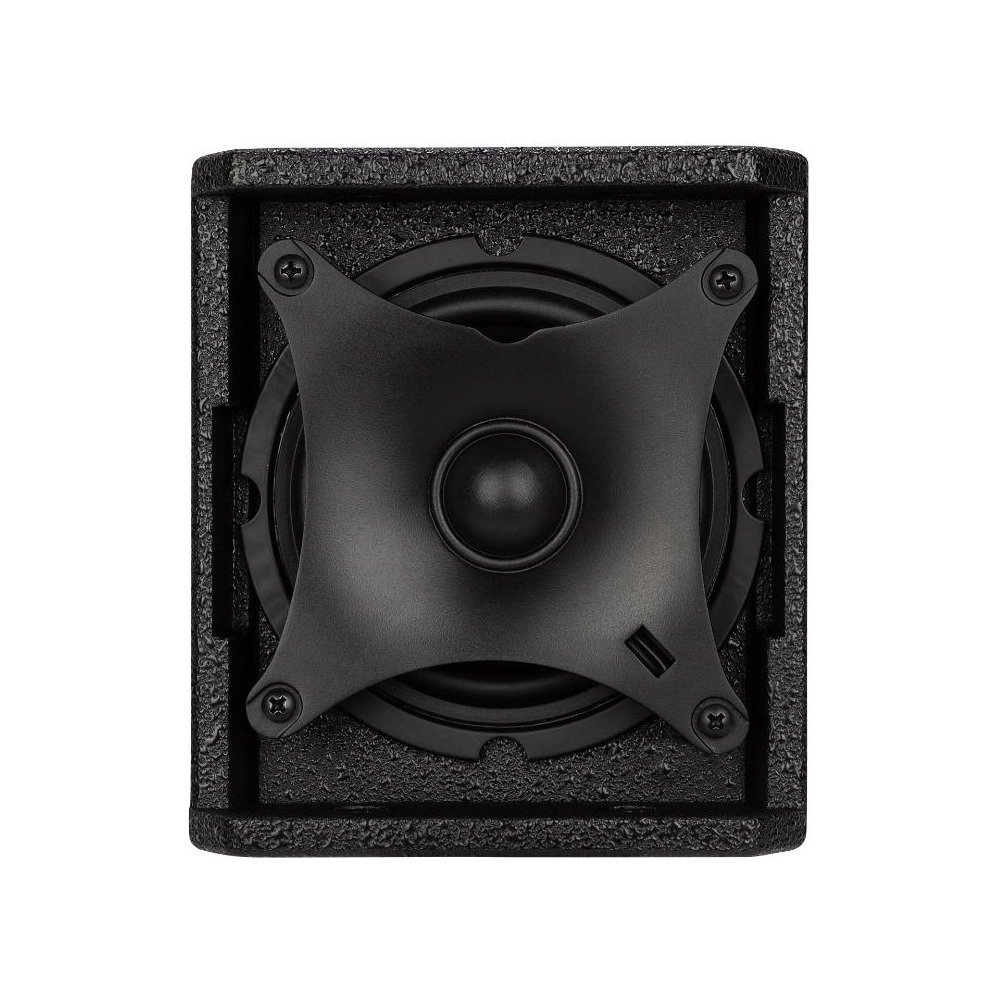

The RCF Compact M 04 is a two-way full-range coaxial speaker for foreground and background sound in bars, shops, and small venues. A 4-inch coaxial woofer with a 1-inch neodymium dome tweeter fires from a single point for even, phase-coherent coverage over a wide 120 by 120 degree pattern. It handles 60W RMS and peaks at 113 dB across a 90 Hz to 20 kHz range.

The high-quality plywood cabinet is compact enough to tuck into tight spaces, and a wall-mount bracket is included so it can be aimed into the listening area. Its coaxial design keeps the sound consistent whether a listener is on-axis or off to the side.

ConfigurationTwo-way full-range coaxial
Power Handling60W RMS
Max SPL113 dB
Frequency Range90-20,000 Hz
Coverage120° x 120° constant directivity
Transducer4\" coaxial woofer + 1\" neodymium dome tweeter
CabinetHigh-quality plywood
MountingWall bracket included
RCF Discusses the Compact M Series of Installation Loudspeakers (ISE 2020)
