RCF COMPACT M 06

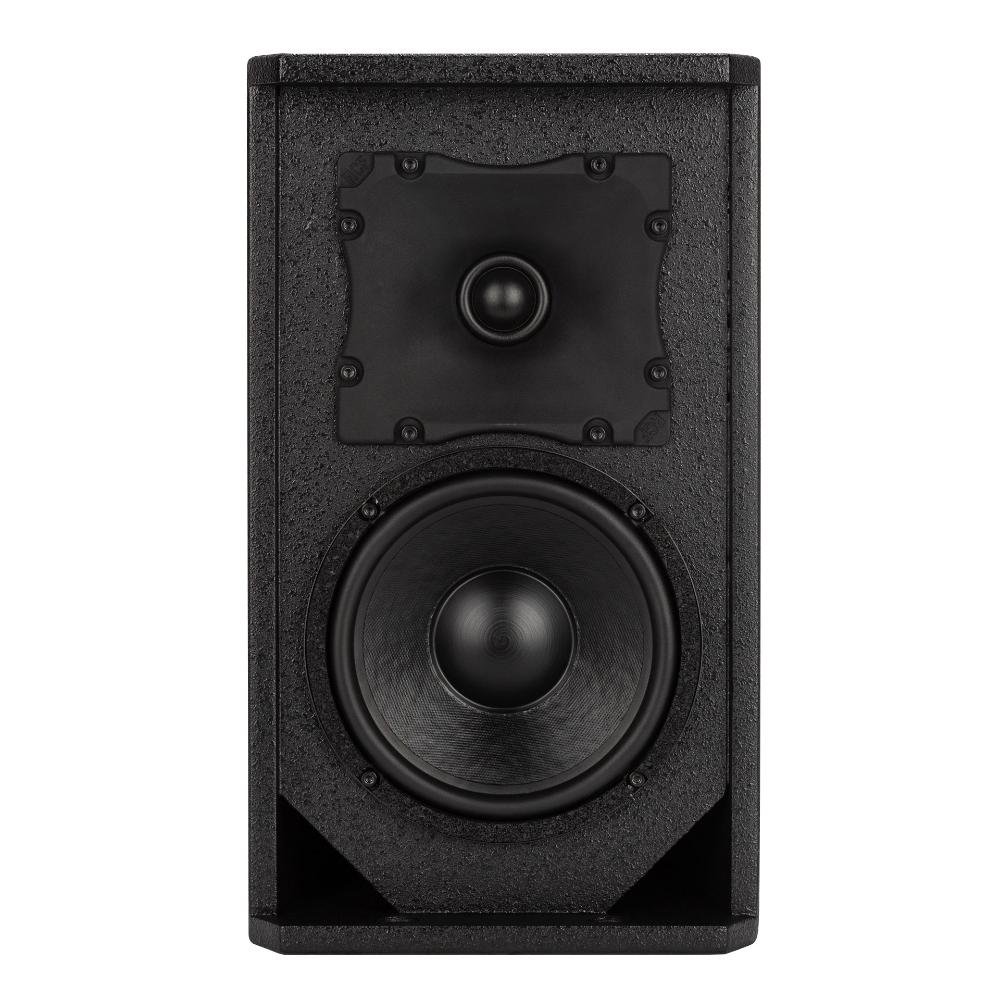

The RCF COMPACT M 06 is a two-way passive install speaker built around a single 6-inch woofer and a 1-inch neodymium dome tweeter. A wide 120-degree by 80-degree constant-directivity horn spreads sound evenly across a room, and 100 watts RMS of power handling drives the pair to 116 dB, enough to fill a cafe, boutique, or meeting space with clear, intelligible music. The 60 Hz to 20 kHz range keeps program material full in most background and foreground jobs without adding a subwoofer.

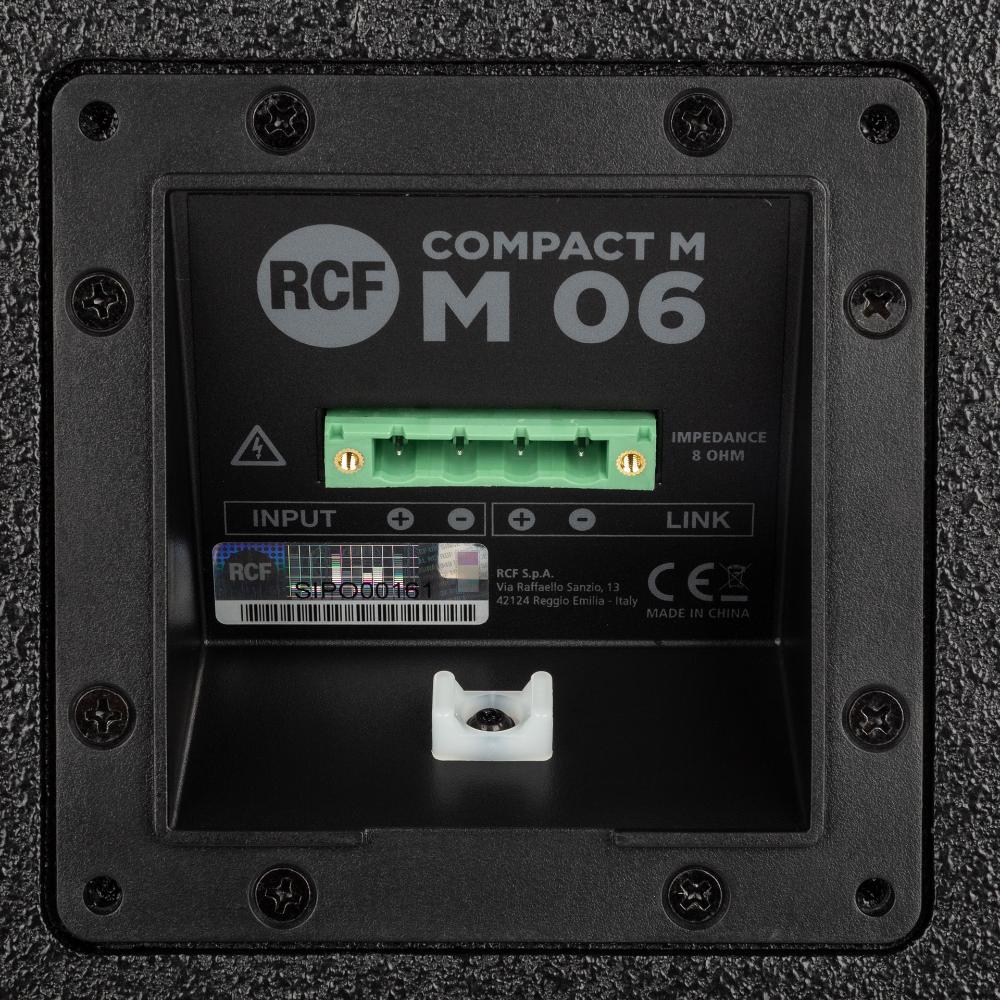

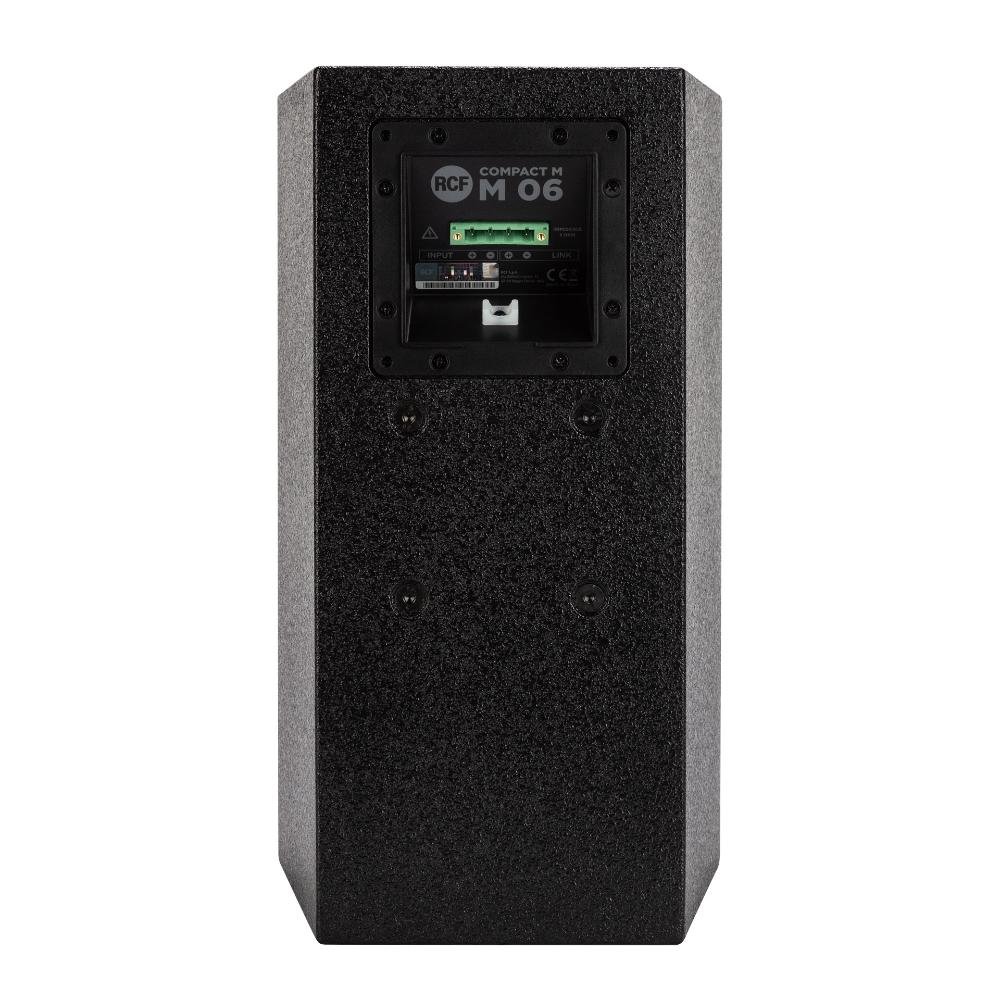

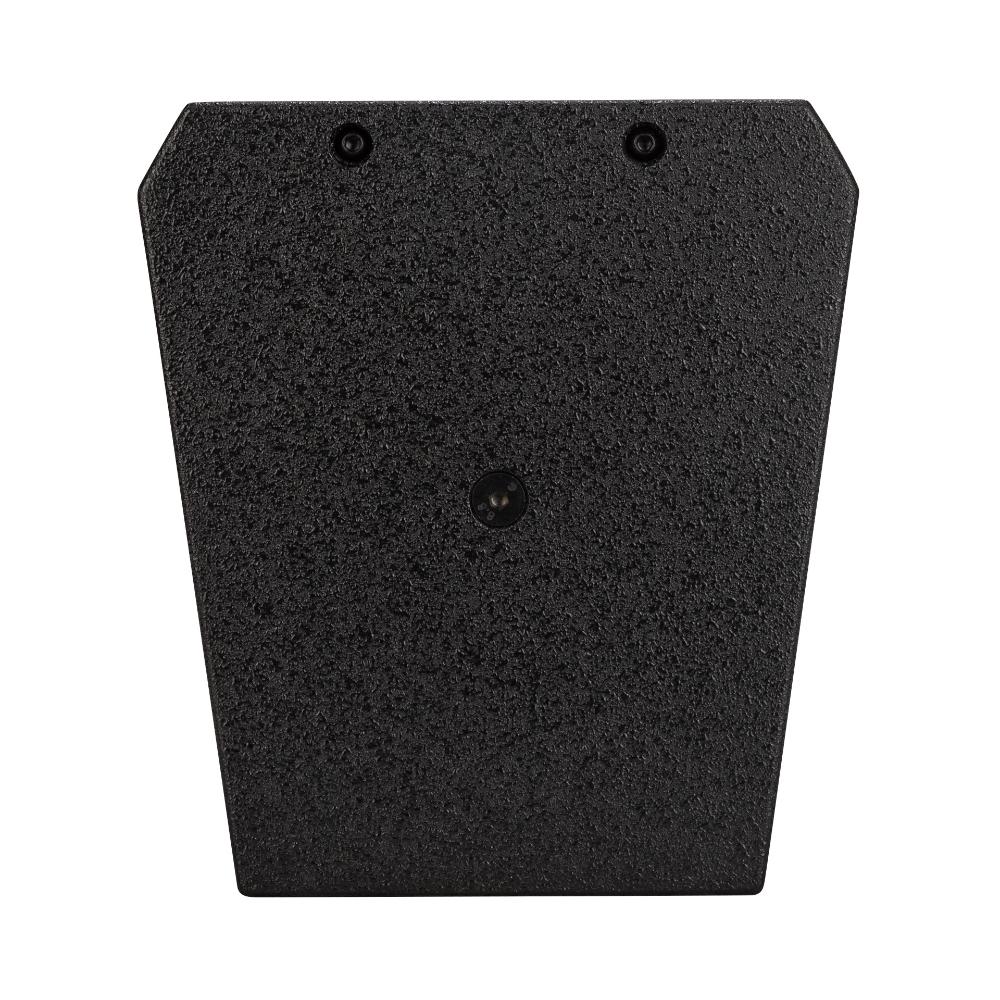

The cabinet is high-quality plywood dressed with a steel front grille and cloth backing, and its compact footprint and clean finish let it settle quietly into almost any decor. Threaded installation points on the rear, top, and bottom panels give integrators room to mount it on a wall or bracket, and a 4-pole Euroblock connector carries the audio input plus a parallel link output so several units can be daisy-chained on a single home run.
| Configuration | Two-way passive install speaker |
|---|---|
| Power Handling | 100 W RMS |
| Max SPL | 116 dB |
| Frequency Range | 60 - 20,000 Hz |
| Coverage Angle | 120 x 80 degrees (constant directivity) |
| Woofer | 1 x 6-inch high-power woofer |
| Tweeter | 1 x 1-inch voice-coil neodymium dome |
| Connector | 4-pole Euroblock (input plus parallel link output) |
