RCF COMPACT M 10

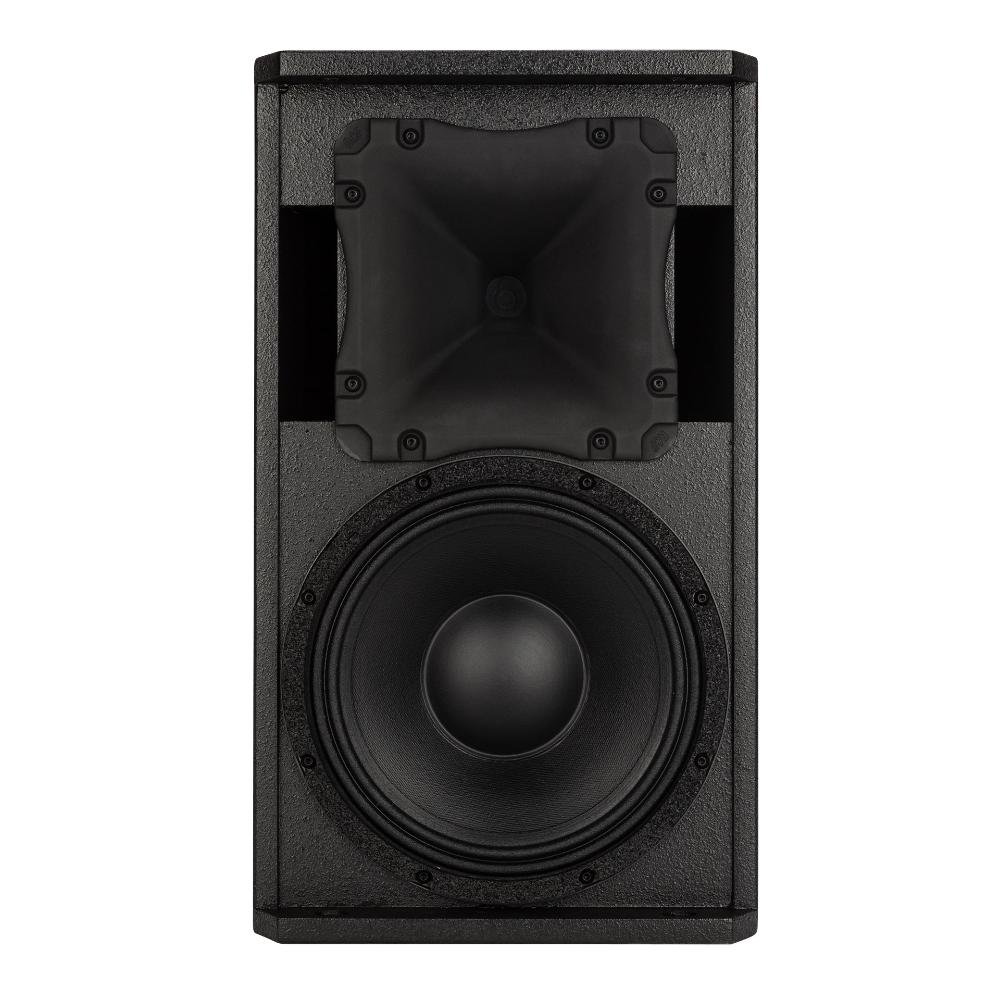

The RCF COMPACT M 10 packs a 10-inch woofer and a 1.4-inch voice-coil compression driver into a cabinet that stays small for its output. Its 90-degree by 70-degree constant-directivity horn keeps coverage tight and even, while 300 watts RMS and a 128 dB peak give it the size-to-SPL ratio that lets one box do the work of a larger speaker. The 60 Hz to 20 kHz response delivers full-range music for an immersive listening experience.

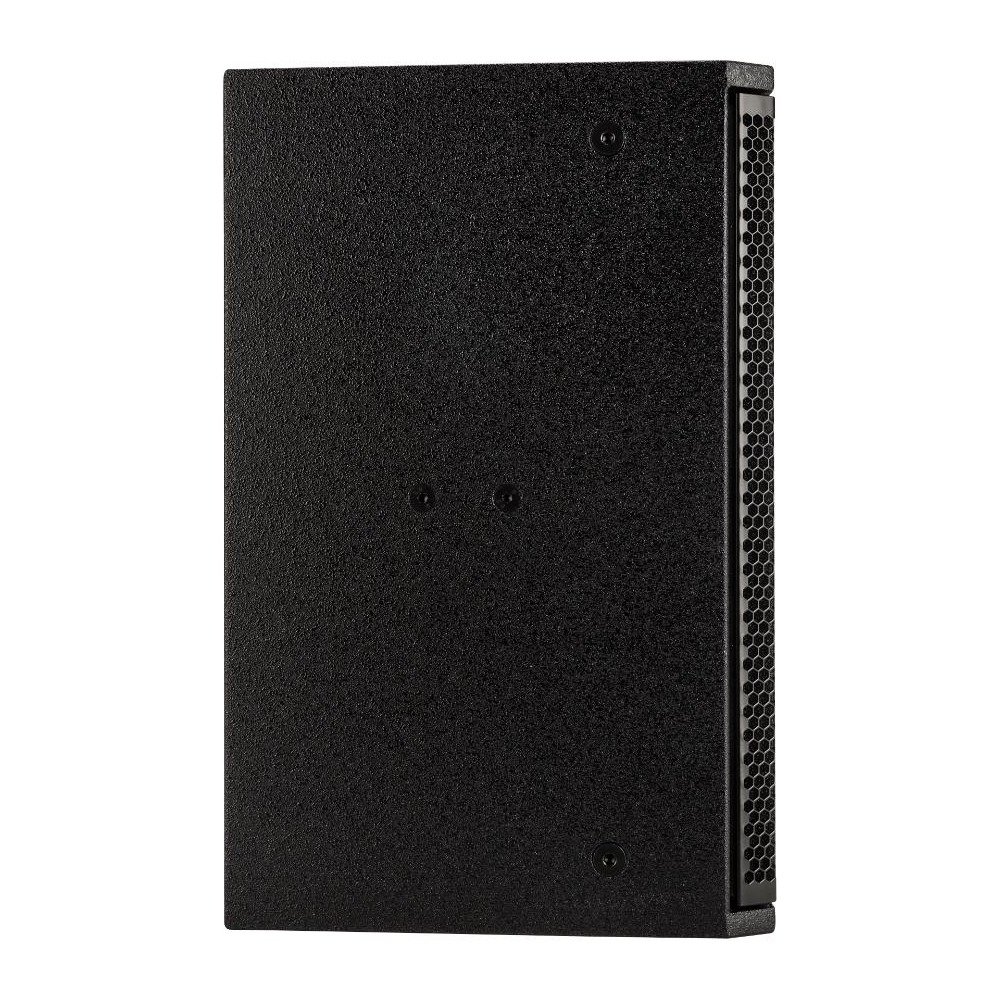

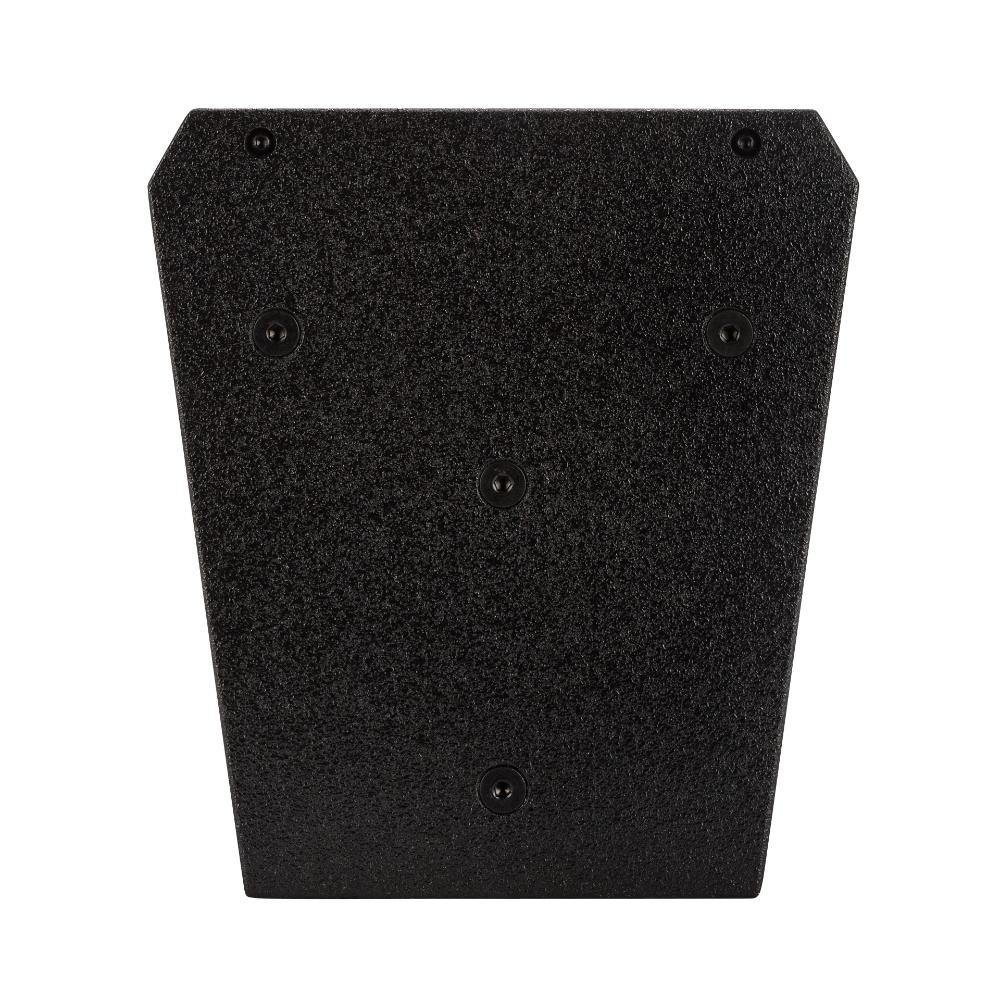

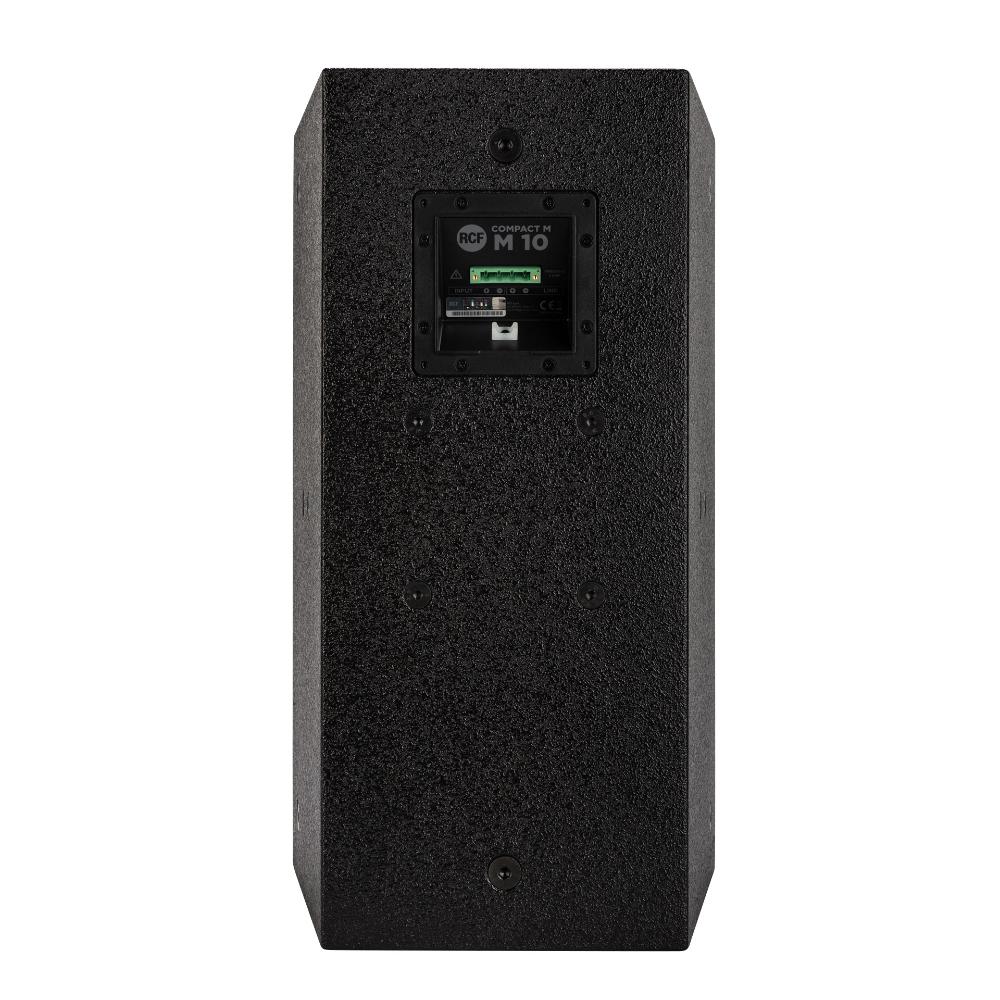

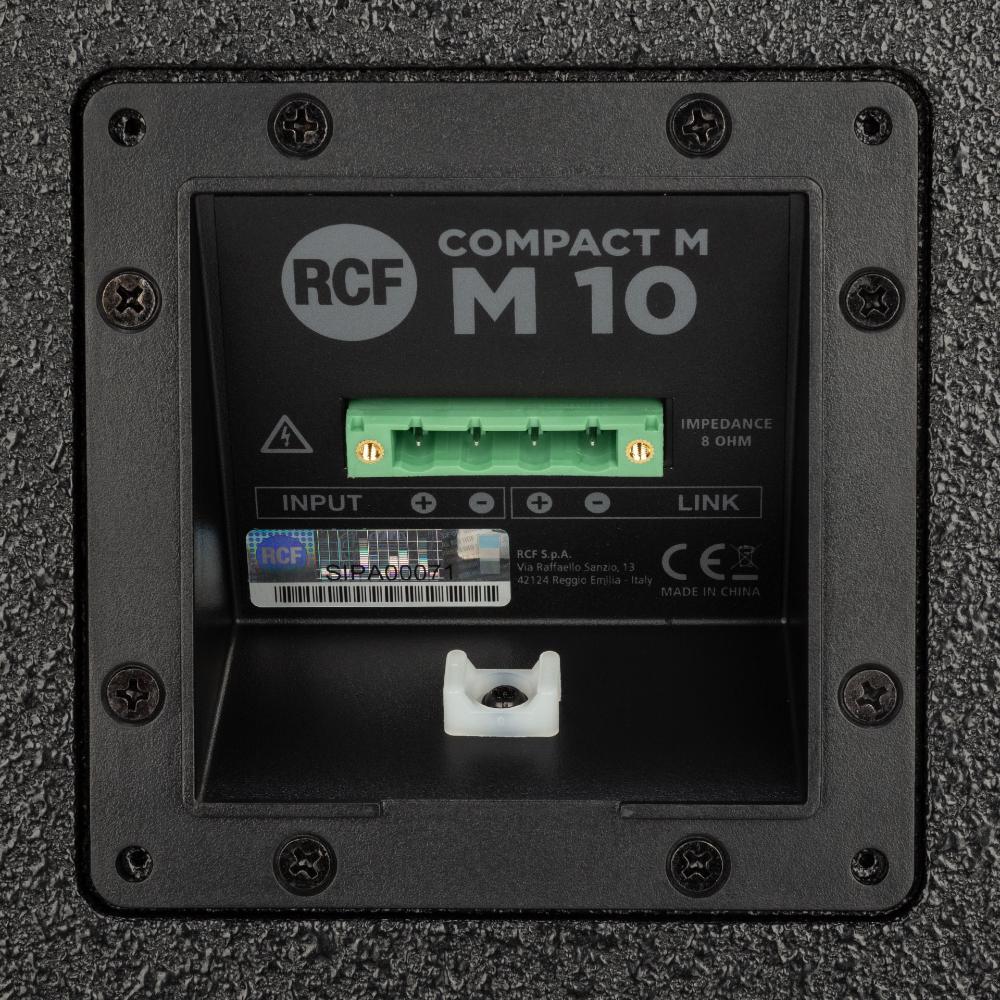

Built from high-quality plywood with a steel front grille and cloth backing, the M 10 is made to be installed and forgotten. Threaded installation points on the rear, top, and bottom panels open up wall, bracket, and flown mounting, and a 4-pole Euroblock connector carries the audio input plus a parallel link output so several units can share a single cable run.
| Configuration | Two-way passive install speaker |
|---|---|
| Power Handling | 300 W RMS |
| Max SPL | 128 dB |
| Frequency Range | 60 - 20,000 Hz |
| Coverage Angle | 90 x 70 degrees (constant directivity) |
| Woofer | 1 x 10-inch high-power woofer |
| HF Driver | 1 x 1.4-inch voice-coil compression driver |
| Connector | 4-pole Euroblock (input plus parallel link output) |
