QSC Attero Tech Axon DTH1620 16-Channel Dante/AES67 Network Amplifier

The Axon DTH1620 answers a problem specific to themed entertainment and immersive installations: many small speakers, each needing its own discrete channel, spread across a space where running speaker cable back to a central rack is impractical. It provides sixteen channels at 20 watts apiece, taking audio directly off Dante with AES67 interoperability so the only long run is a network cable.

Because it is optimized for Q-SYS, the amplifier reports into the same monitoring and management layer as the rest of the system rather than sitting as a silent black box. Low per-channel power is deliberate here, matched to the small drivers these installations actually use.

Frequency response @ 1 W into 8 ohms	20 Hz - 20 kHz
Signal-to-noise	97 dB (20 W into 8 ohms)
Output circuitry	Class D

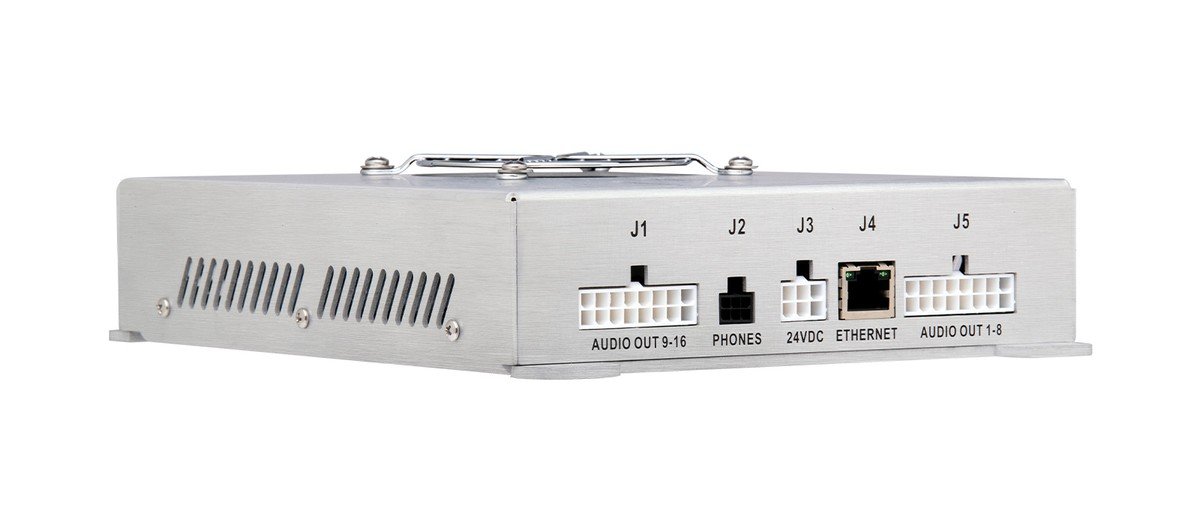

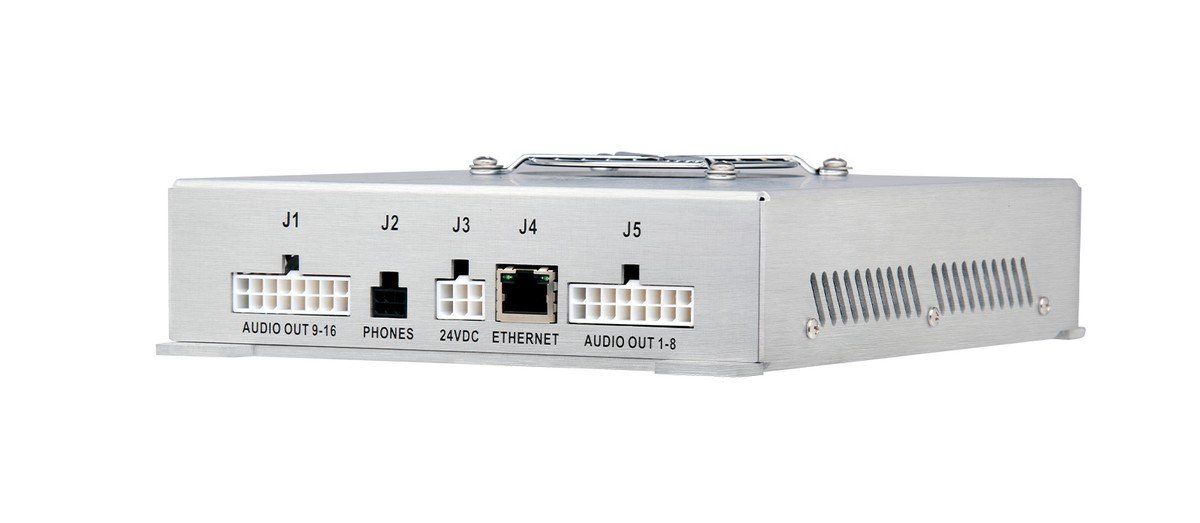

Mic/line inputs	Molex 6-pin, +24 V DC
Speaker outputs	Molex 16-pin
Power Requirements	+24 V DC @ 3 A, all channels 1/8 power +24 V DC @ 17.5 A, all channels full power

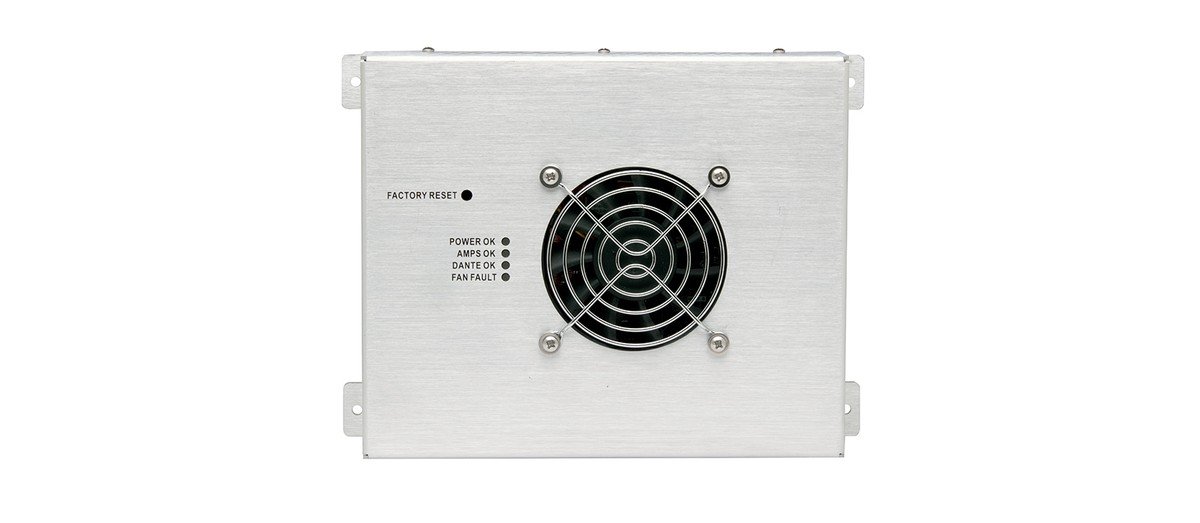

Cooling	Fan with thermal speed control
Dimensions	9 x 6.7 x 2.0 in (229 x 169 x 51 mm)
Weight	2.4 lbs (1.1 kg)
