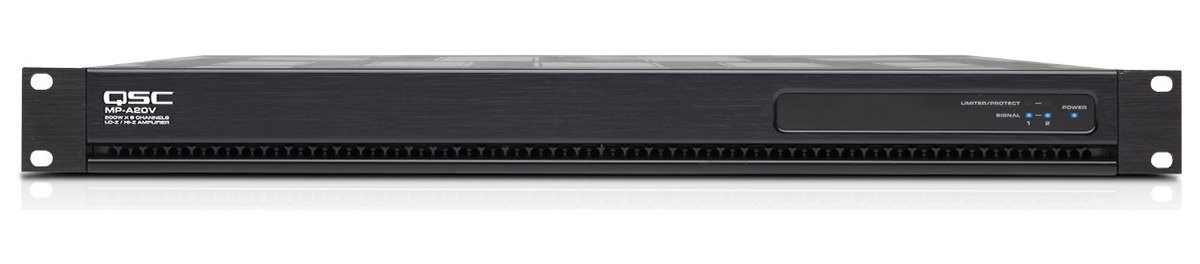

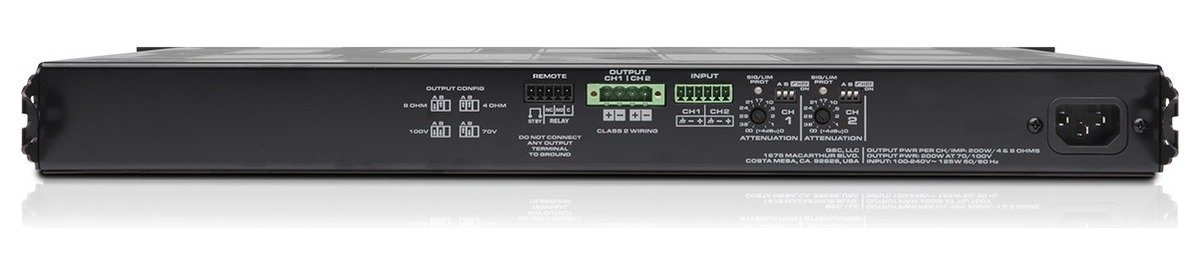

QSC MP-A20V Two Channel Install Power Amplifier

The MP-A20V is the entry point in QSC's MP-A Series of music and paging amplifiers, giving each of its two channels FlexAmp Technology so any pair can deliver up to 400 watts combined output in any ratio. A DIP-switch load selector sets each channel to low-impedance 4 or 8 ohm operation or high-impedance 70V/100V direct drive, so one amplifier can cover mixed zone types that would otherwise need separate amps of different power levels.

An 80 Hz highpass filter is switchable per channel, and a remote input puts the amp into standby for fire-alarm interfacing while a remote status output reports amp health to the rest of the system. Class-D output circuitry and a universal switch-mode power supply keep the 1RU chassis efficient, and 28-minute auto-standby with seamless auto-ramp cuts power draw when zones are quiet.

Channels	2
Power per Channel	200 W into 4 ohm, 8 ohm, 70V, or 100V
FlexAmp Technology	Each channel pair delivers up to 400 W combined, in any ratio
Operating Modes	DIP switch selectable: 4 ohm, 8 ohm, 70V, or 100V direct drive per channel
Highpass Filter	80 Hz, DIP switch engaged per channel
Output Circuitry	Class D
Frequency Response	20 Hz - 20,000 Hz +/- 0.5 dB at 8 ohm
Net Weight	7.7 lb (3.5 kg)
