MuxLab 500819 Control Processor M1

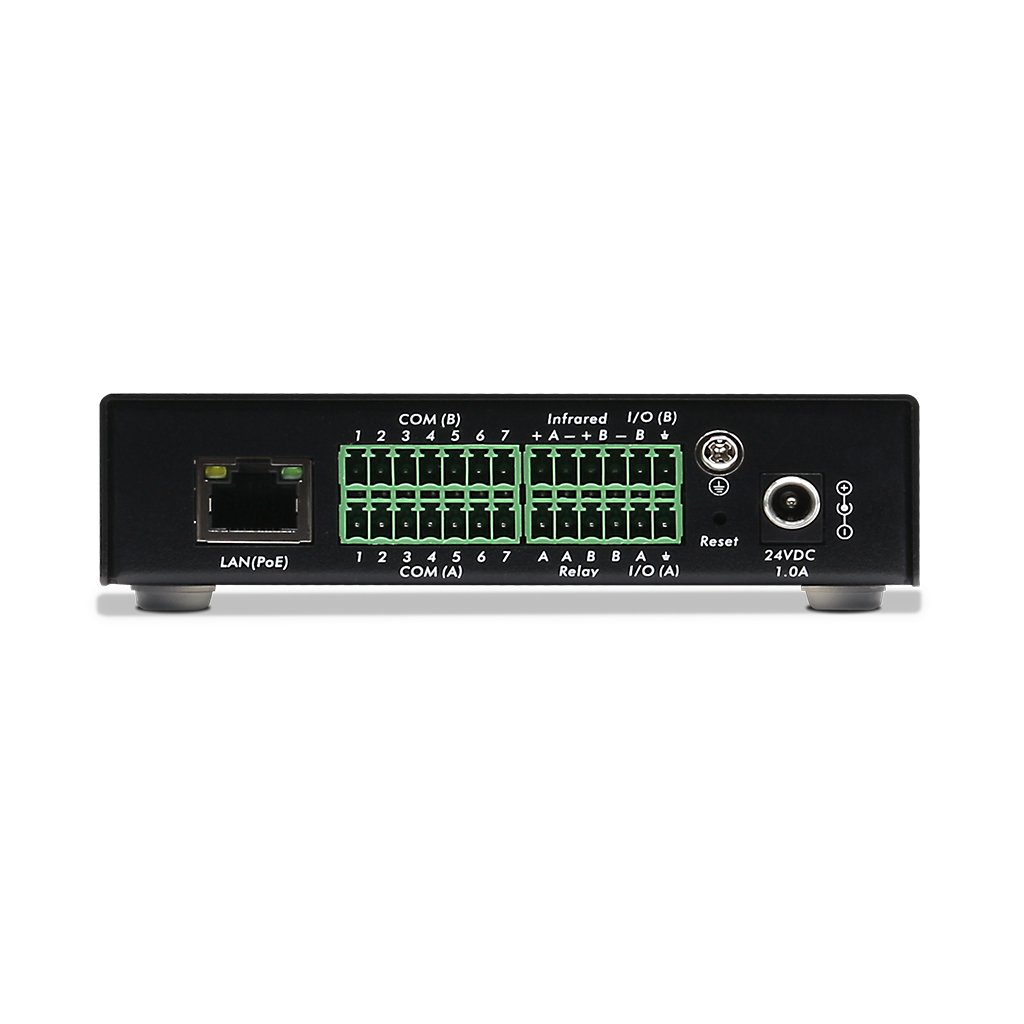

The 500819 Control Processor M1 drives MuxLab devices and third-party equipment over TCP/IP, HTTP, UDP, Telnet, RS232, RS422, RS485, IR, and relay. It provides one Ethernet port, two serial ports, two infrared ports, two voltage sense inputs, and two relay outputs.
Configuration is through a web interface rather than a proprietary programming suite, and the unit powers from PoE or a local supply. Voltage sense inputs let it react to a projector lift or a door contact without extra hardware.
| Color | Black |
|---|---|
| Input | Ports |
| Power Supply | One (1) 110-240VAC to 24VDC/1A power supply with US, UK & Euro Blade Specifications |
| PoE | 802.3af |
| Dimensions | (WxDxH) 116mm x 125mm x 30mm |
| Weight | 454g |
| Housing | Metal |
| Operating Temperature | 32 - 104 deg F / 0 - 40 deg C |
