MuxLab 500817 Touch Control Panel 5-Inch, PoE

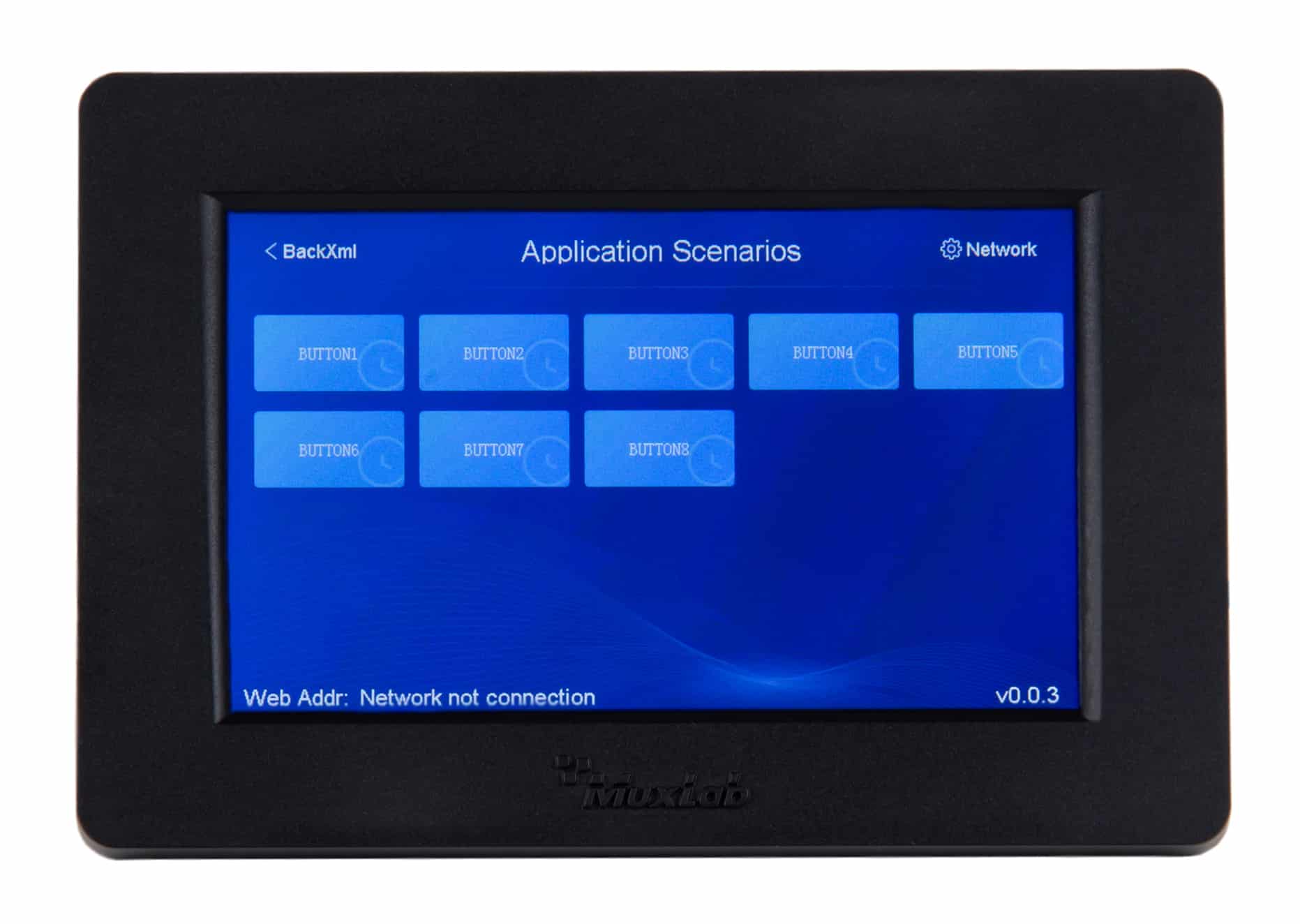

The 500817 combines an in-wall touch panel and a control processor in one unit, with a 5-inch 480 x 800 colour touch screen and two-way feedback so button states reflect what the equipment is actually doing.

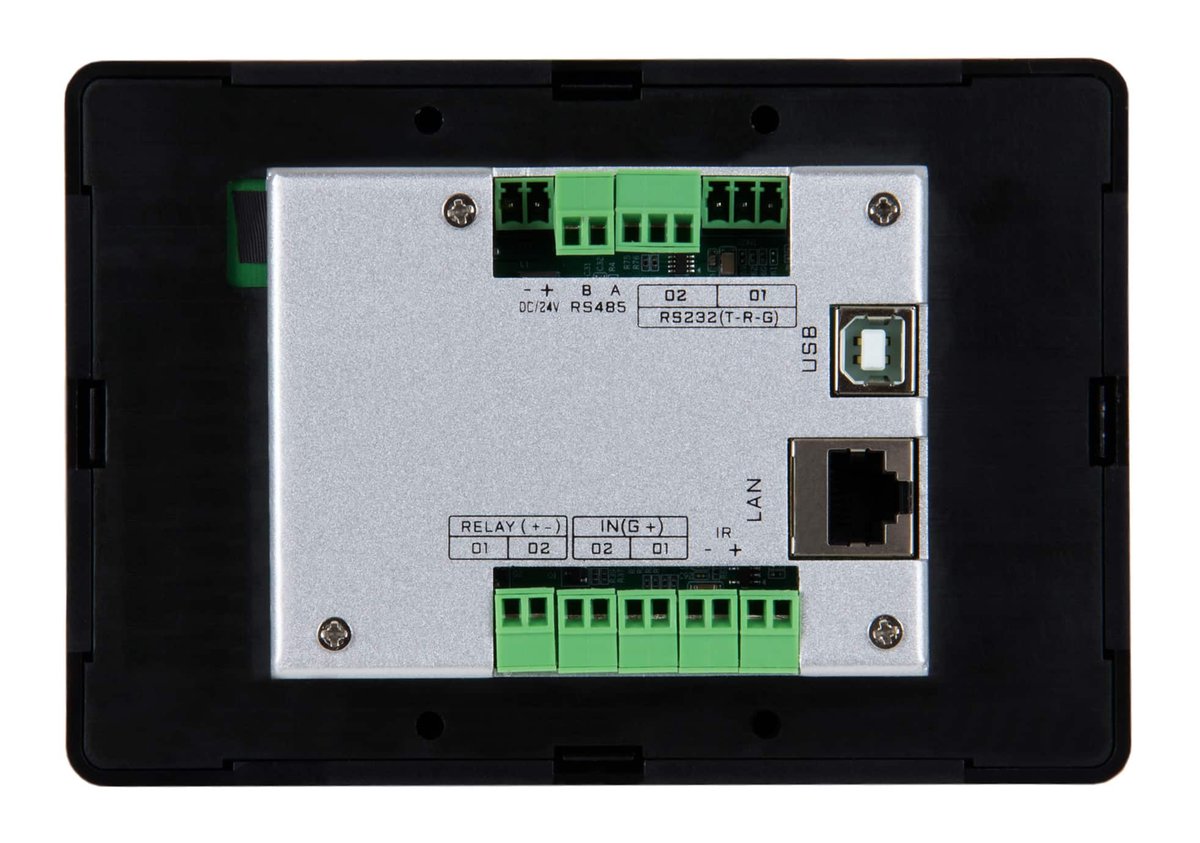

It controls end devices over TCP/IP, UDP, Telnet, RS232, IR, and relay, and is programmed through a web interface with as many programmable buttons as a room needs. Power comes from PoE or a local supply. A white version is available as the -WH.

• Dimensions(WxDxH) 145mm x 37mm x 100mm
• InputPorts One (1) Ethernet port for TCP/IP Touch Screen
• Weight344g
• ColorBlack or White
• PoE802.3af
