MuxLab 500506 DisplayPort 1.2a 1x2 Hub, MST

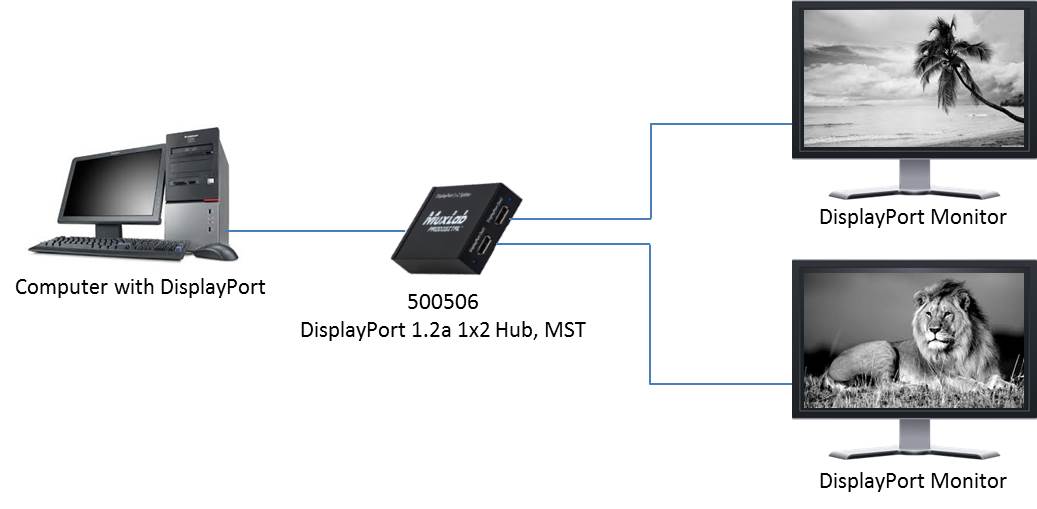

The 500506 takes one DisplayPort 1.2a connector and drives two monitors with different content, using Multi-Stream Transport for up to eight streams. Resolutions reach 4K, and PCM audio passes at up to 7.1 channels and 192 kHz sampling.

The distinction from a splitter matters: MST gives the host a genuine multi-monitor desktop rather than a mirrored image. The link runs 5.4 Gbps per lane, 21.6 Gbps total, and supports dual-mode DisplayPort for HDMI or DVI adapters downstream.

Standard	DisplayPort 1.2a Device Targeted Installation of DisplayPort or Mini DisplayPort output source equipment with DisplayPort input monitors
Signal Format	DisplayPort 1.2a & Dual mode DisplayPort protocol Transport Supports Multi-Stream Transport (MST) of up to eight streams
Resolution	Up to 3840 X 2160 @ 60 FPS
Video Bandwidth	21.6 Gbps (5.4Gbps per lane)
HDCP	Revision 1.4 compliant
Audio	LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
Connectors	Three DisplayPort connectors. One PSU connector
Output	port : 2x Standard DisplayPort Cables (Select appropriate cable length for video resolution selected)
