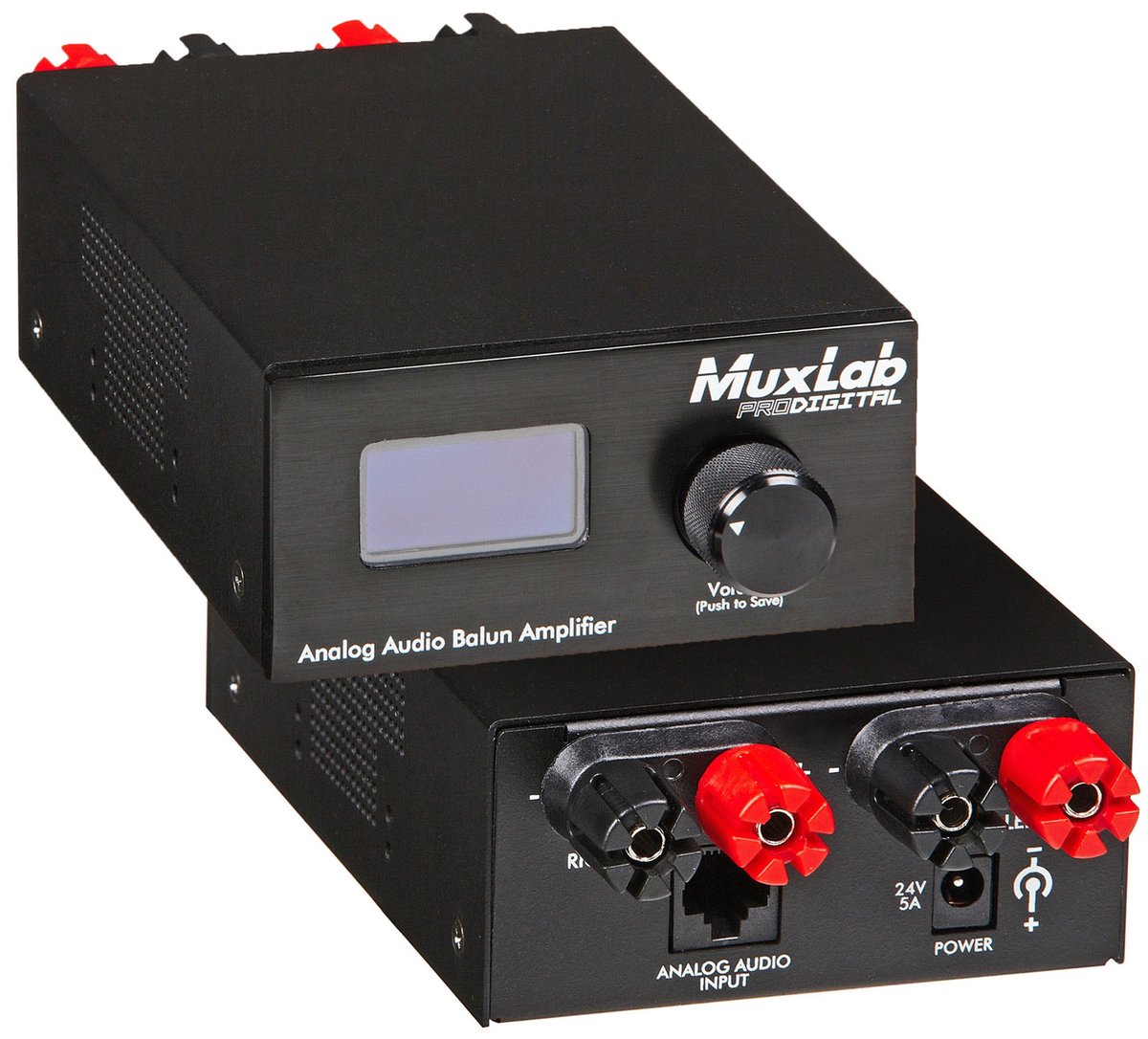

MuxLab 500219 Analog Audio Balun Amplifier, US

The 500219 combines the receiving end of a MuxLab Hi-Fi audio balun link with a compact Class D stereo amplifier. One analog audio source, sent from a compatible MuxLab balun, travels up to 3,250ft (1km) over a single Cat5e/6 cable and arrives at 30W per channel of amplification.

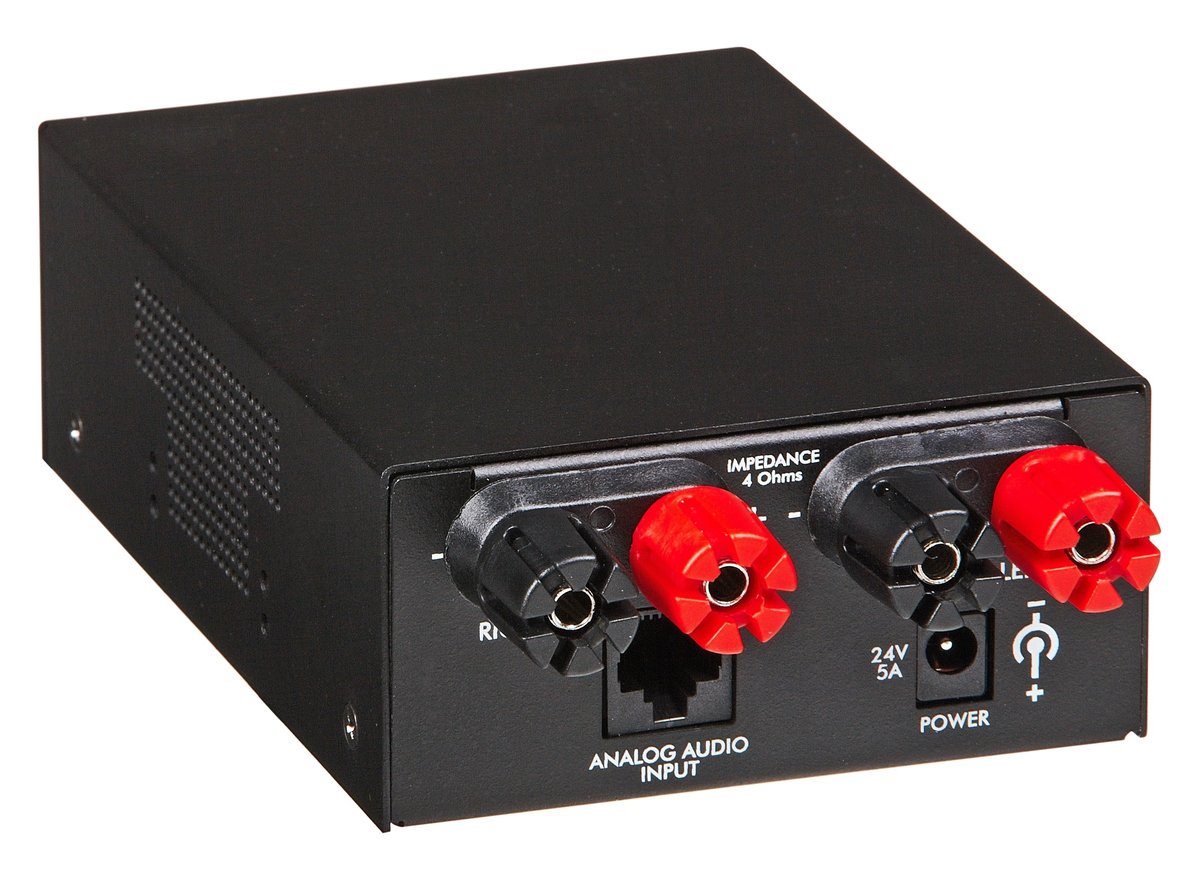

An on-screen display shows left and right input level and volume, and a push-and-turn front control handles power, volume, and a stored volume setting. Input is a single RJ45; output is a pair of binding posts for the speaker run. Ground loop isolation is built in.

Standard	Audio Distribution using CAT cabling Device Targeted Audio System using the Muxlab HiFi Balun
Frequency	response 20 - 22,000 Hz (+/- 1 dB) with 8 ohms Front Control Volume, push to save power-up default Front Display Input level left and right: L R
Power Output	30W RMS maximum (PMPO) per channel into 8 ohm
Connectors	Input: One RJ45 connector
Output	Four binding posts: red & black, for each channel
Power	Requirement 120W max, 24V 5A. Compatible Source Unit Audio matrix: 500210
Dimensions	4" x 5" x 2" (9 x 13 x 5 cm)
Weight	5 lbs (2 kg)
