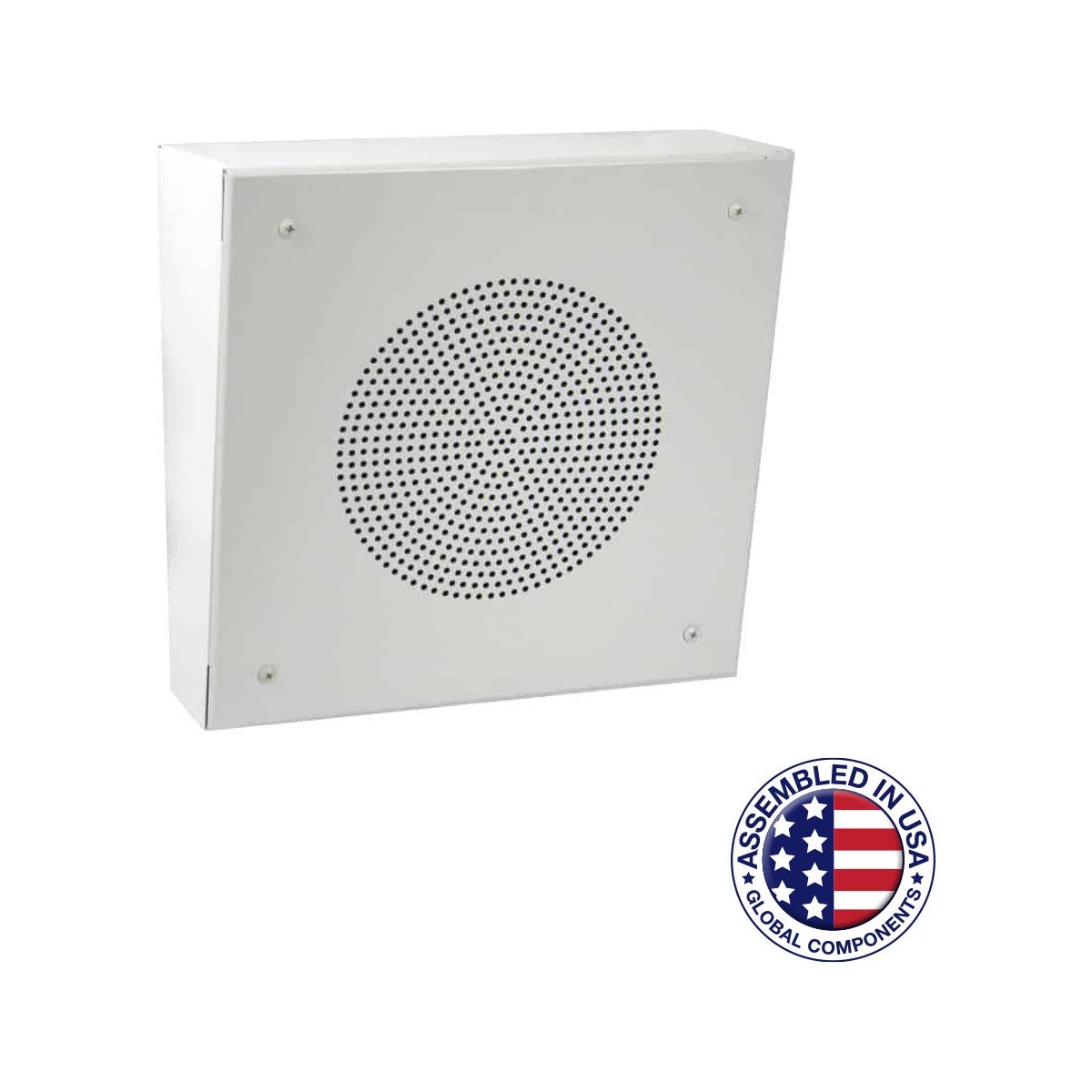

Lowell DSL-805-72 8in Speaker Package

The Lowell DSL-805-72 is an 8in Speaker Package. Lowell specifies 8 in. 12W dual cone driver with 5 oz. magnet, 25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W and steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White.

Ordered as Lowell part number DSL-805-72. Specifications and photography as published by Lowell Manufacturing at lowellmfg.com/product/dsl-805-72-surface-mount-speaker.

Driver (805A)	8 in. 12W dual cone driver with 5 oz. magnet
Transformer (TLM-572)	25V/70V dual voltage transformer. Taps at 0.25, 0.5, 1, 2, 5W
Enclosure	Steel enclosure with sloped front. 11.3 in. x 11.5 in x 5.29 in. (3.05 in. at base). White
Grille	Steel with beveled edge and circular hole pattern. White
Mounting Aids	Universal mounting hole pattern will install to a 4 in. square, 4 in. octagon, 1- or 2-gang box (not included). Top/bottom knockouts for 500 Series wiremold
System Specifications	Frequency Response 122Hz-7.4kHz (+/-6dB), 65Hz-20kHz (+/-12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical
Sensitivity	95.1dB
Dimensions	11.3 in. x 11.5 in. x 5.29 in
