Lowell JR410-T72 4in Cone Speaker w Xfmr

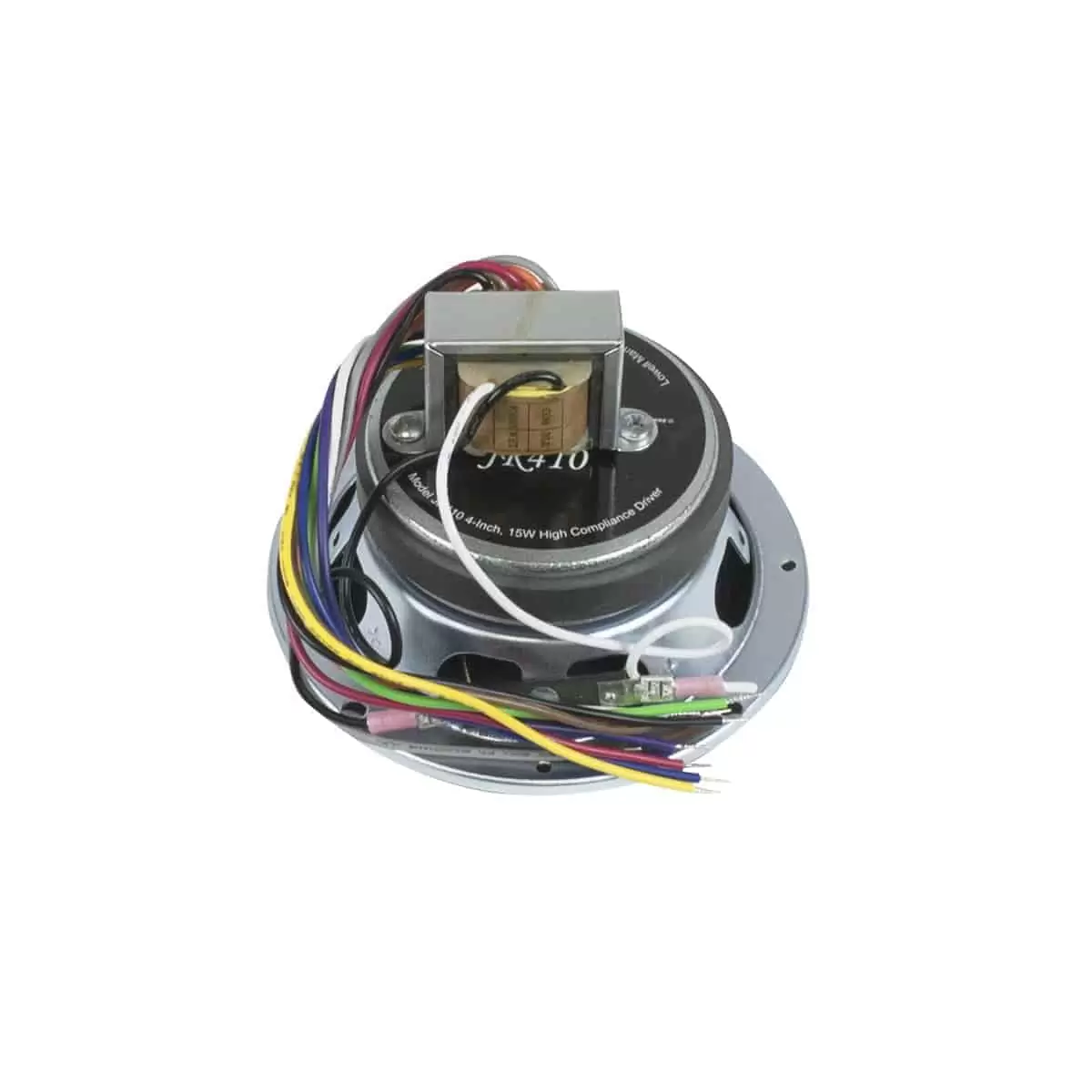

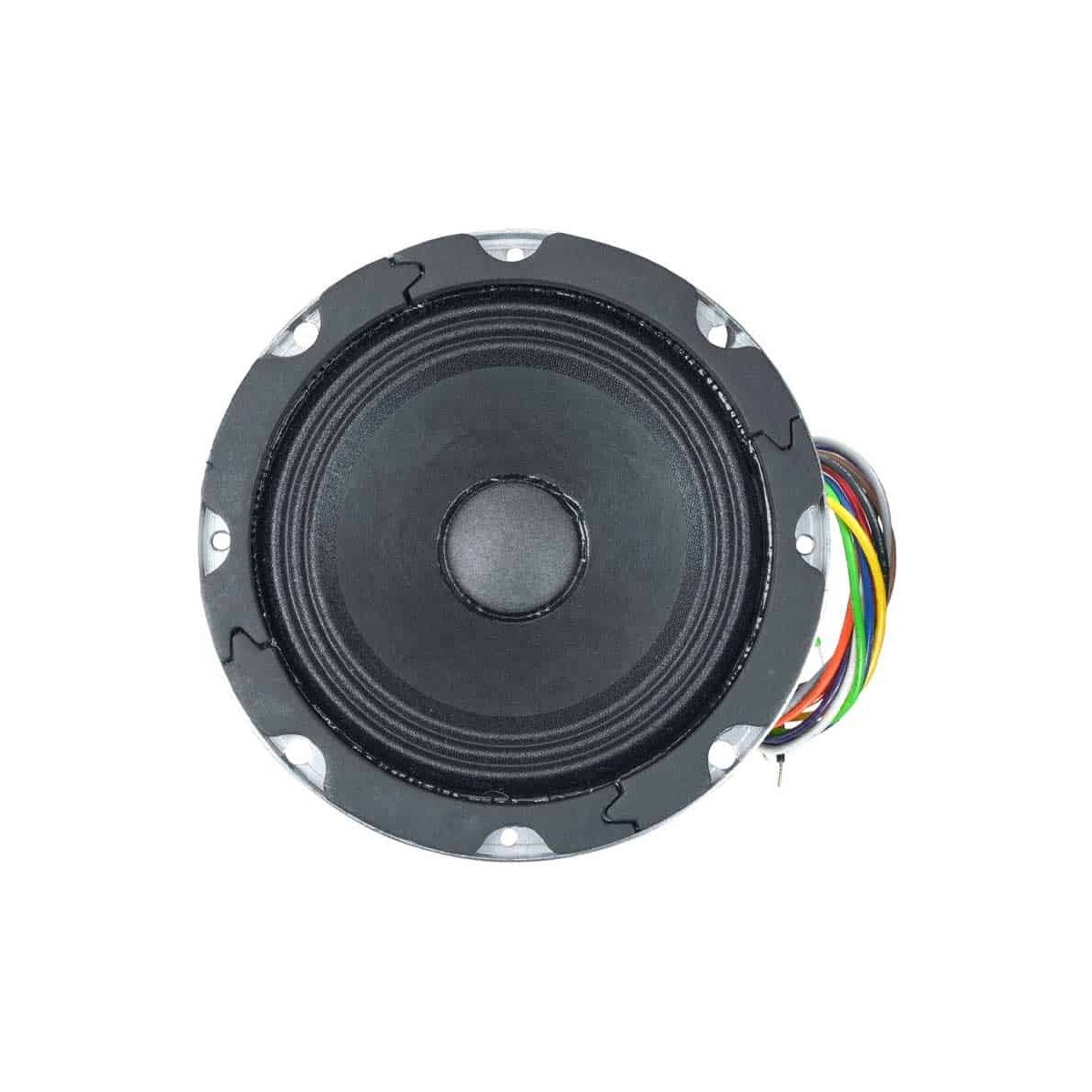

The Lowell JR410-T72 is a 4-inch 15W high-compliance single cone driver with a 25V/70V 5W transformer mounted, for background music and paging where small ceiling openings or low ceilings call for a 4-inch speaker. Its 170-degree conical dispersion spreads sound wide, so fewer speakers can cover a room.

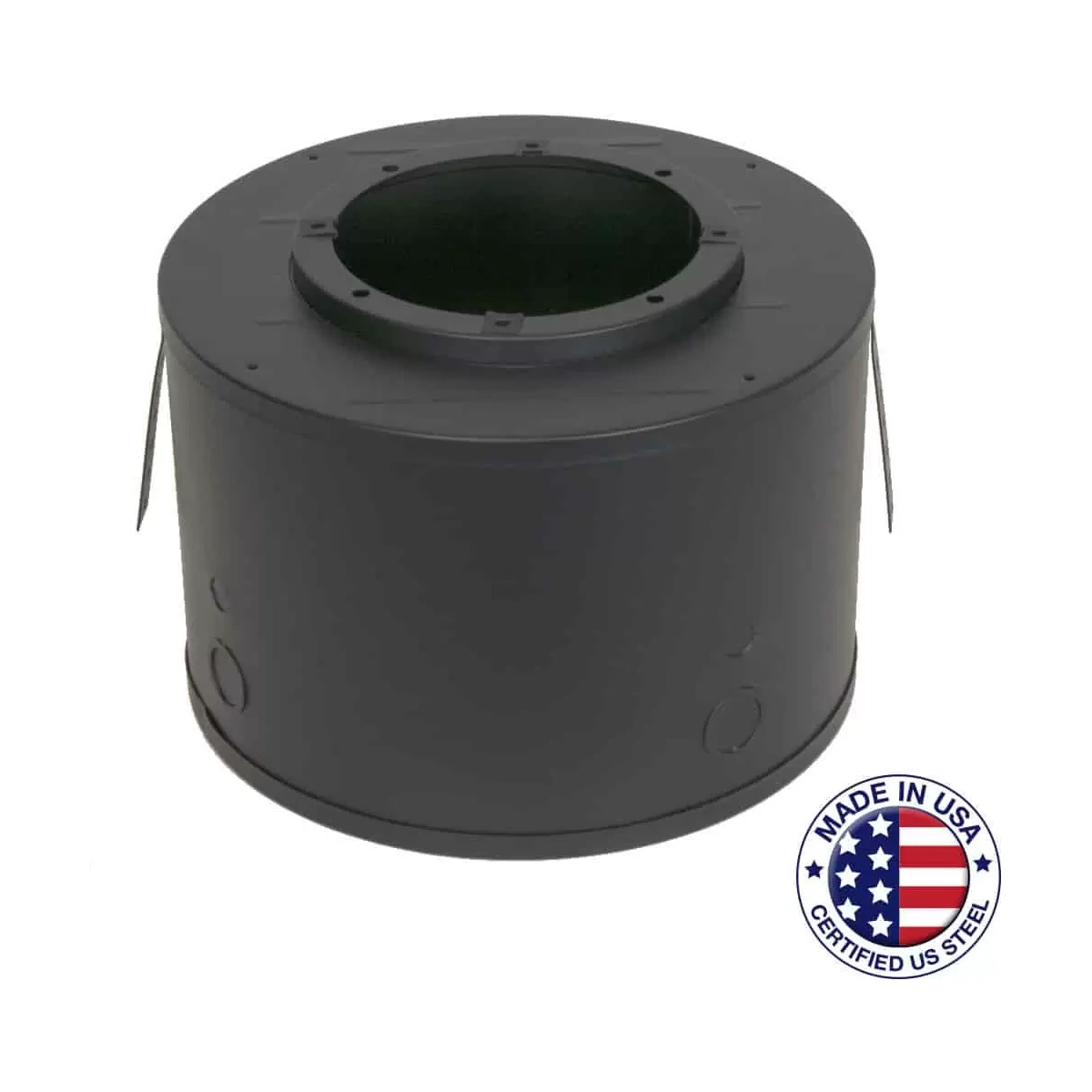

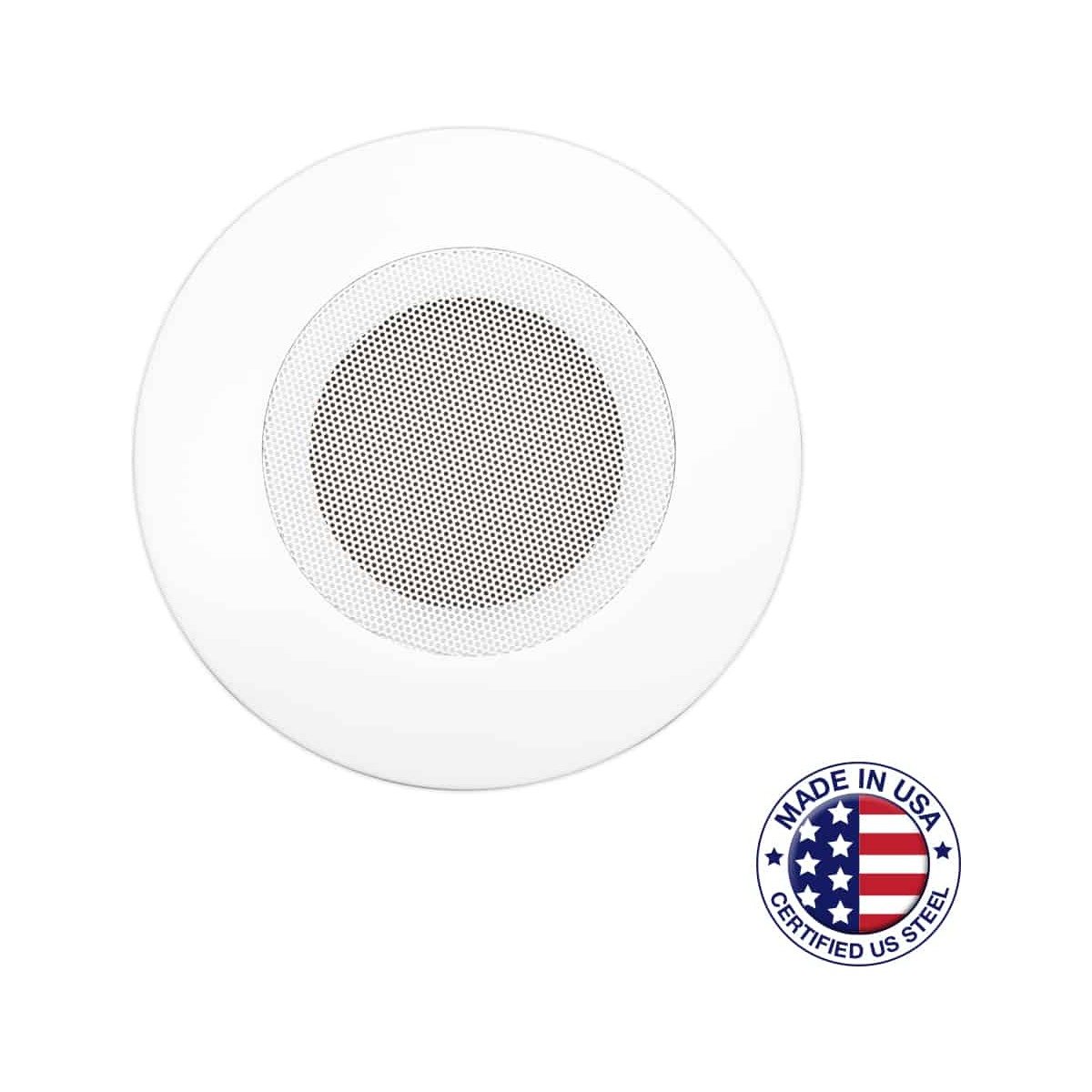

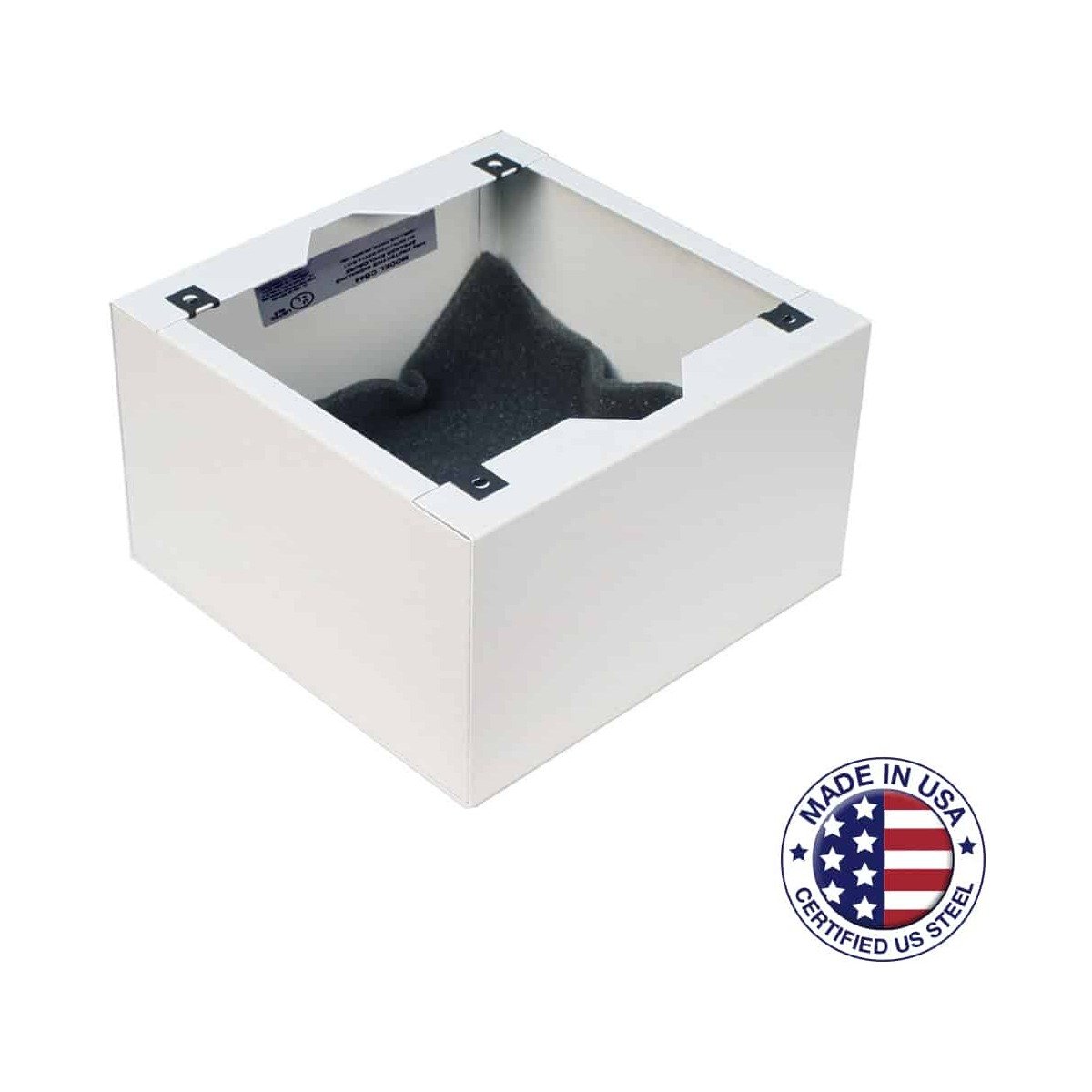

The driver uses a 10 oz. ceramic magnet, paper cone and treated cloth surround on a zinc-plated 20-gauge steel frame with a 4.72 in. bolt circle. Transformer taps are 0.25, 0.5, 1, 2 and 5W. Lowell rates the assembly at 67Hz-16kHz (+/-6dB) and 90.8dB average sensitivity, with a 3.56 in. mounting depth. Grille and enclosure are sold separately, in multiples of 8.
- Assembly Frequency Response67Hz-16kHz (±6dB) and 57Hz-20kHz (±7.4dB)
- Assembly Average Sensitivity90.8dB
- Assembly Mounting Depth3.56 in
- Construction20-gauge steel
- Frame20-gauge stamped steel, zinc-plated
| Construction | 20-gauge steel |
|---|---|
| Frame | 20-gauge stamped steel, zinc-plated |
| Driver | 4 in. 15W high compliance single cone driver with 10 oz. ceramic magnet, paper cone, treated cloth surround |
| Transformer | 25V/70V with taps at 0.25, 0.5, 1, 2, 5W |
| Assembly Frequency Response | 67Hz-16kHz (±6dB) and 57Hz-20kHz (±7.4dB) |
| Assembly Average Sensitivity | 90.8dB |
| Assembly Dispersion Angle | 170 degrees conical |
| Assembly Mounting Depth | 3.56 in |
