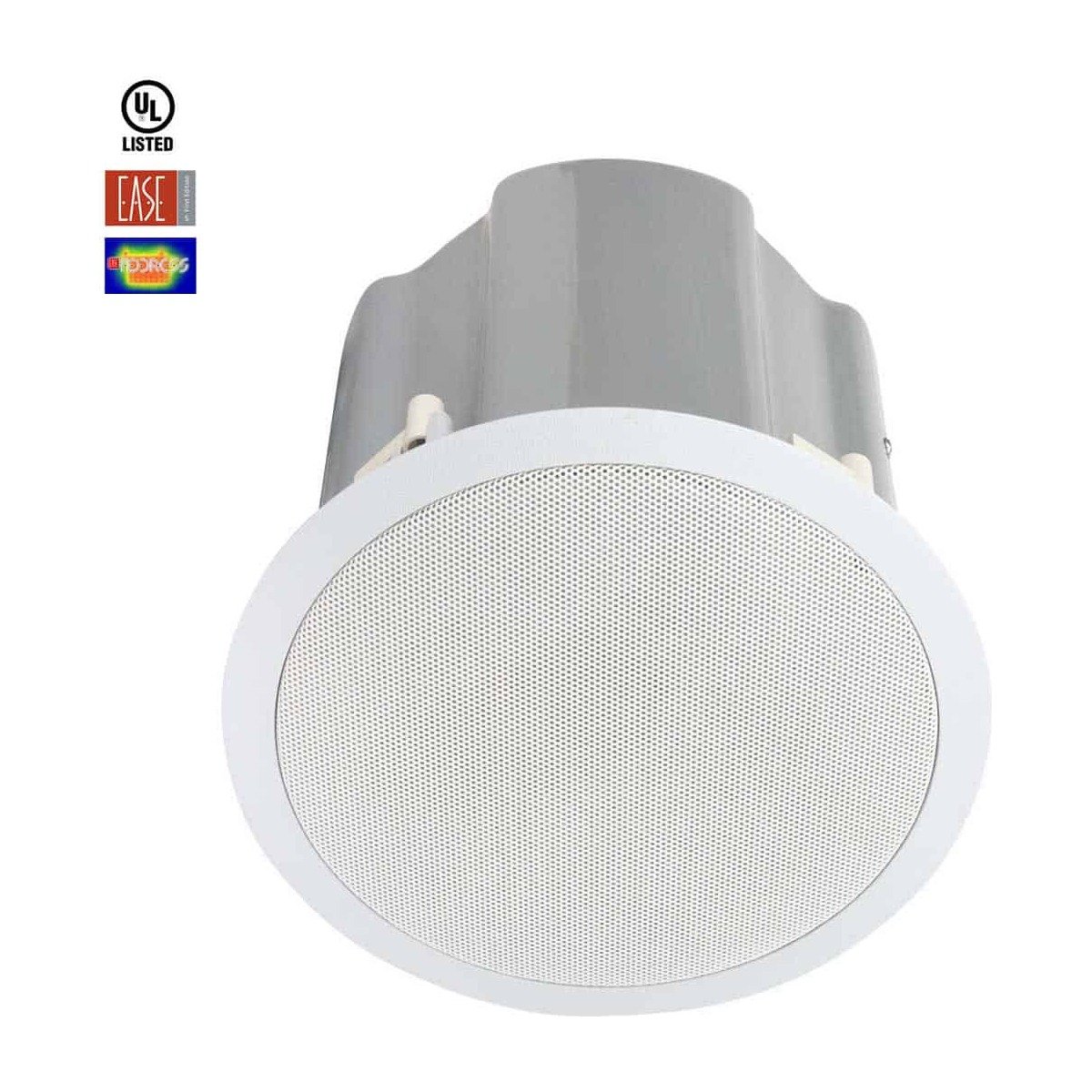

Lowell ES-62T 6in Speaker Package

The Lowell ES-62T is a 6in Speaker Package. Lowell specifies 6.5 in. coaxial driver with high-frequency PEI tweeter/acoustic lens, 32W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 4 ohm (UL min.) transformer bypass position. Why a 4 ohm position? ES-Why4ohm and painted (grey) steel back-can with mounting dogs.

Ordered as Lowell part number ES-62T. Supplied with installs in drywall, wood, tile or almost any ceiling with thickness up to 2-1/8 inches. Specifications and photography as published by Lowell Manufacturing at lowellmfg.com/product/es-62t-6-1-2-inch-coaxial-speaker.

Driver	6.5 in. coaxial driver with high-frequency PEI tweeter/acoustic lens

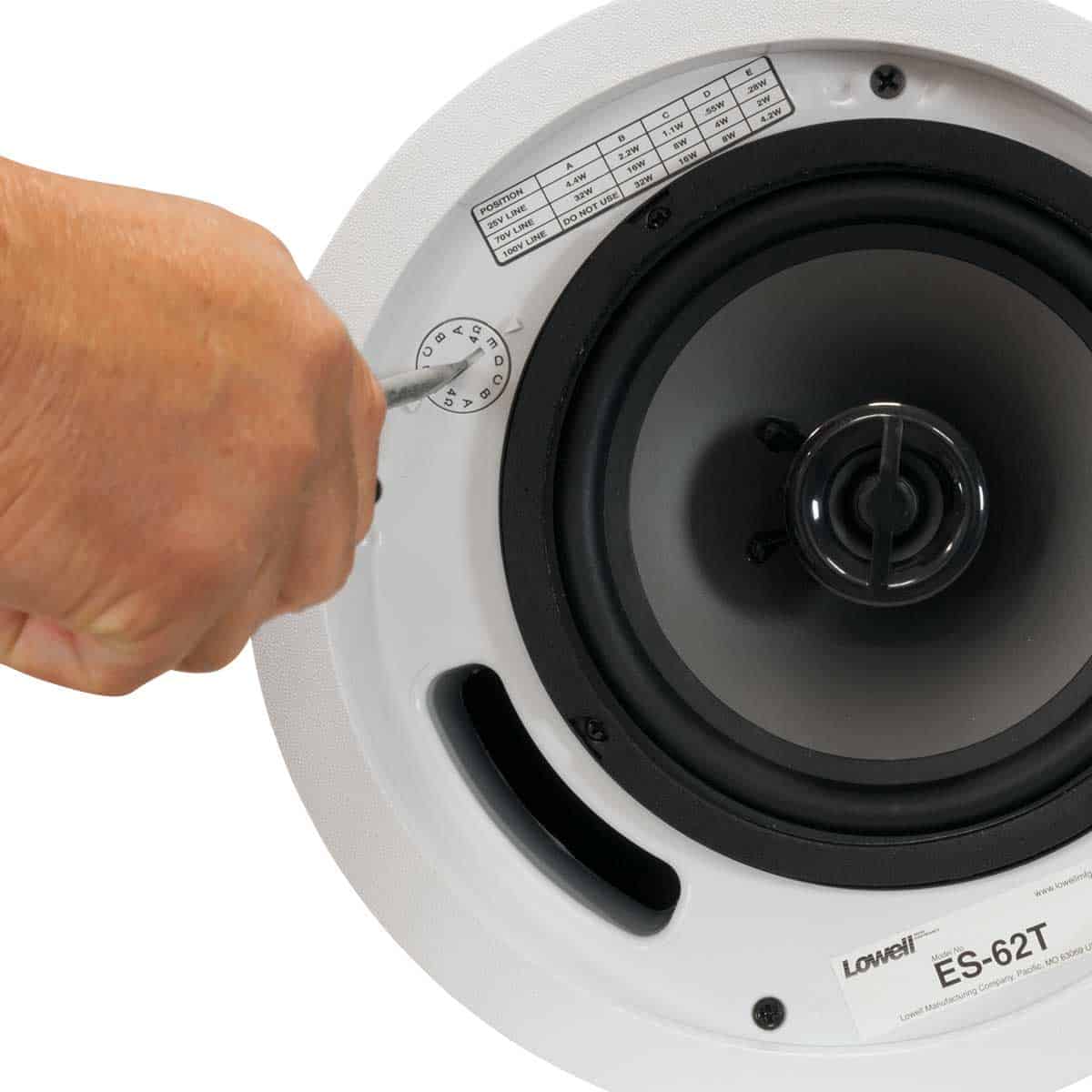

Transformer	32W (tap selector behind grille). Taps for 25V, 70V or 100V speaker systems, and 4 ohm (UL min.) transformer bypass position. Why a 4 ohm position? ES-Why4ohm

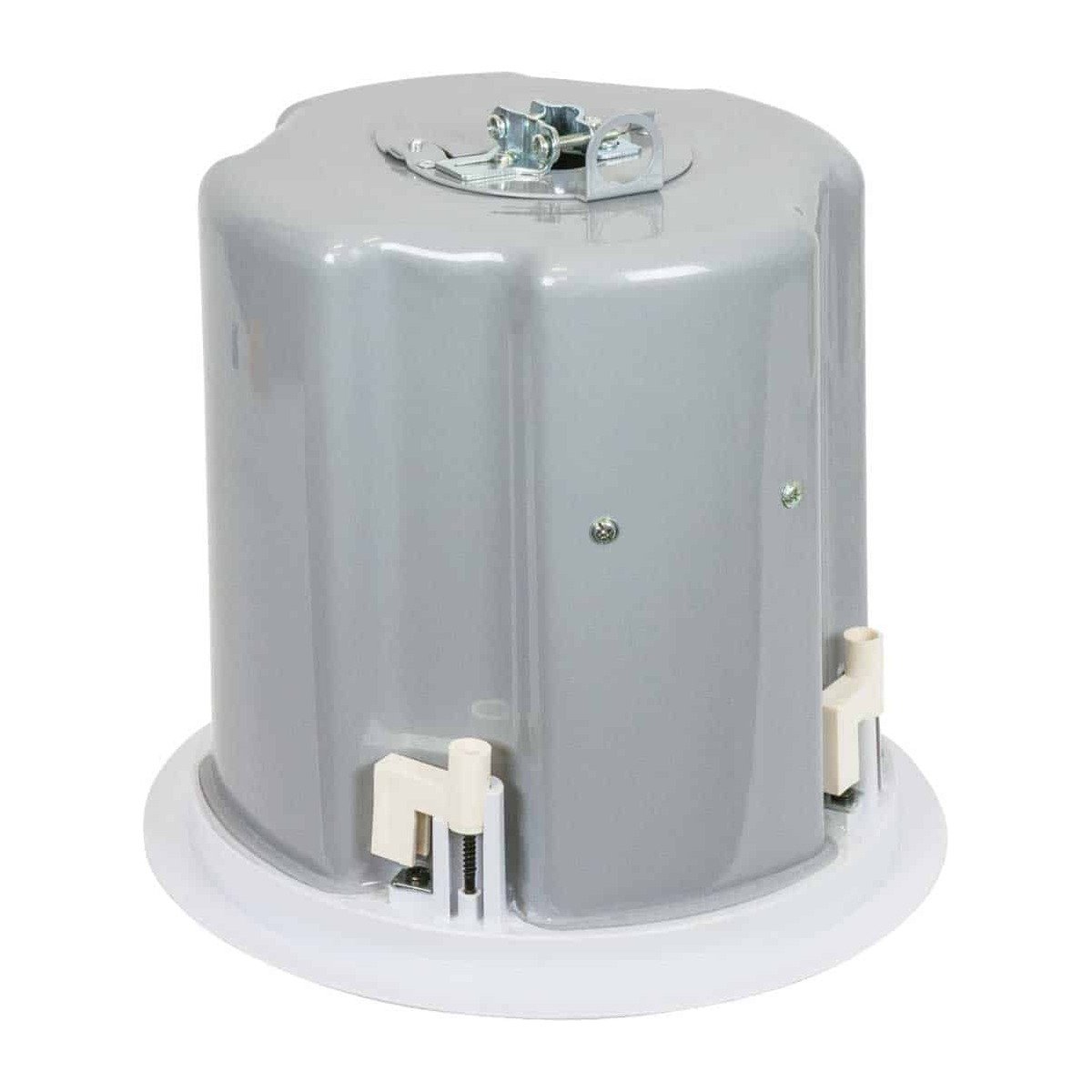

Enclosure	Painted (grey) steel back-can with mounting dogs
Grille	Press-fit grille with scrim, pull-tool
Mounting Aids	Plastic paint shield to protect driver, C-ring and support rails
Included	Installs in drywall, wood, tile or almost any ceiling with thickness up to 2-1/8 inches
Frequency Response	64Hz-20kHz +/- 6dB
Sensitivity	88.6dB log average @1W/1M over the frequency response range, measured in half-space
