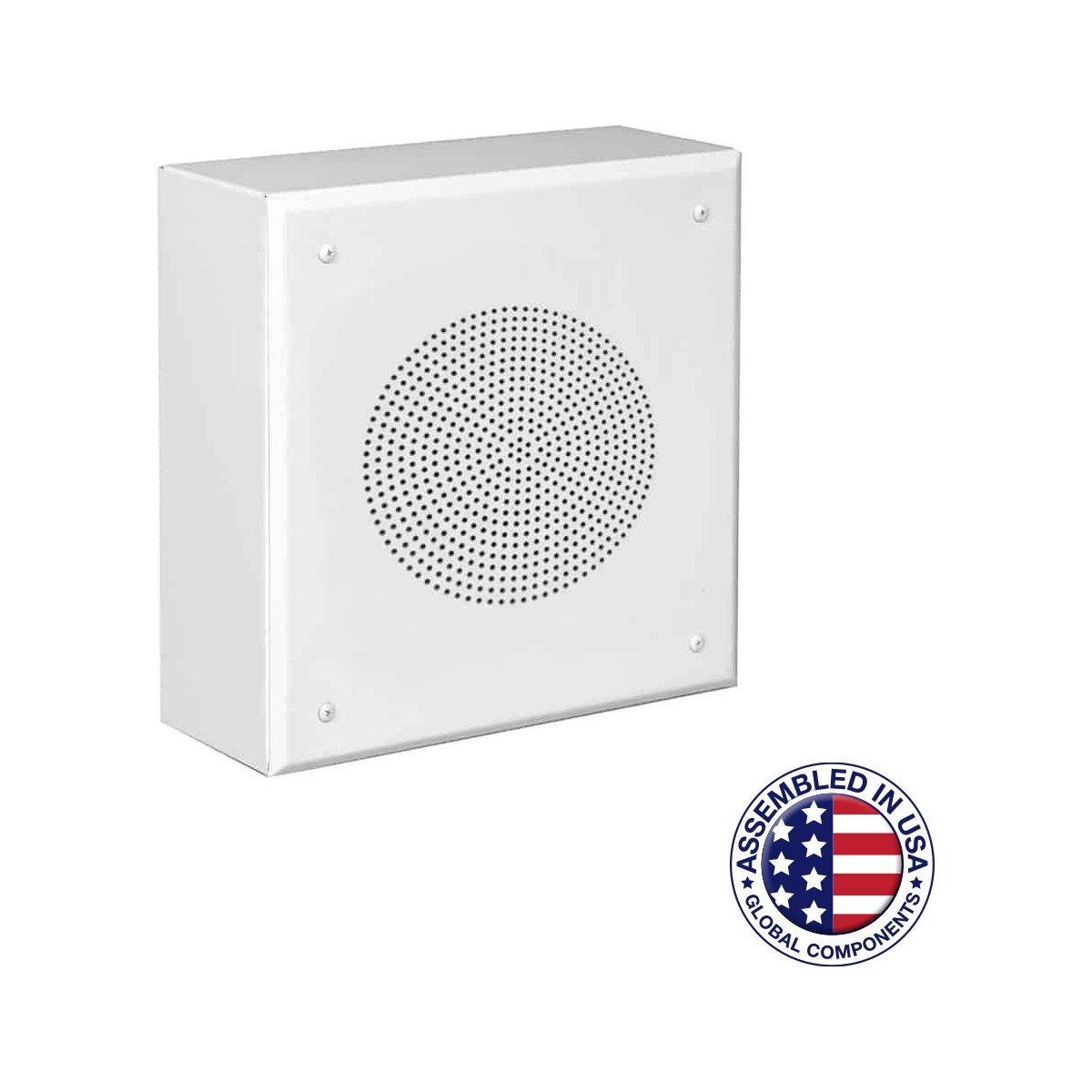

Lowell DSQ-805-72 8in Speaker Package

The Lowell DSQ-805-72 is an 8in Speaker Package. Lowell specifies 8 in. 12W dual cone driver with 5 oz. magnet, 25V/70V transformer. Taps at .25, .5, 1, 2, 5W and steel. 11.5 in. x 11.5 in. x 4 in. White.

Ordered as Lowell part number DSQ-805-72. Specifications and photography as published by Lowell Manufacturing at lowellmfg.com/product/dsq-805-72-surface-mount-speaker.

Driver (805A)8 in. 12W dual cone driver with 5 oz. magnet
Transformer (TLM-572)25V/70V transformer. Taps at .25, .5, 1, 2, 5W
EnclosureSteel. 11.5 in. x 11.5 in. x 4 in. White

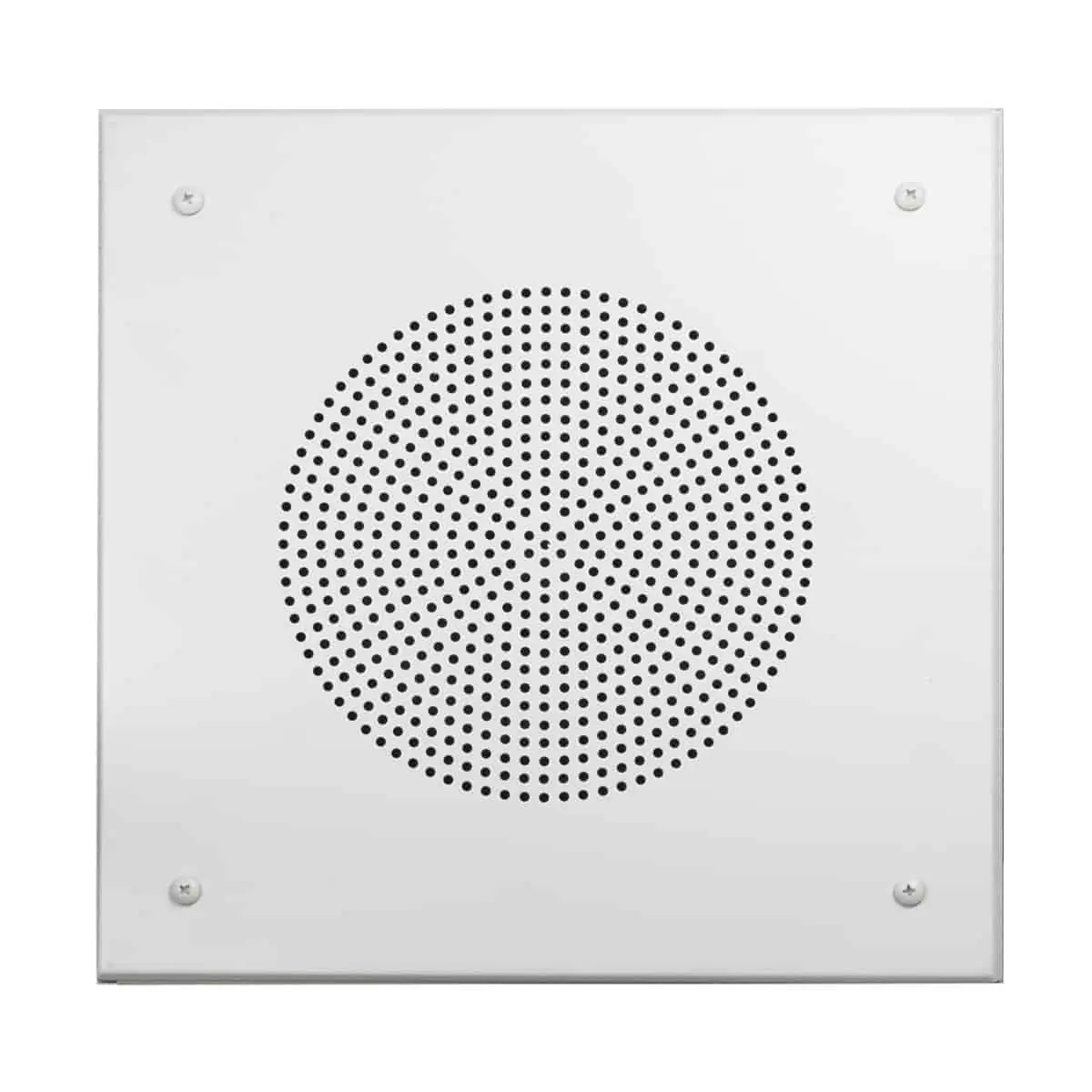

GrilleSteel with beveled edge and circular hole pattern. White
Mounting AidsUniversal mounting hole pattern. Top/bottom knockouts for 500 Series wiremold
SystemFrequency Response 122Hz-7.4kHz (+/-6dB) and 65Hz-20kHz (+/-12dB). Average Sensitivity 95.1dB (1W/1M). Dispersion 110 degrees conical
Sensitivity95.1dB
Dimensions11.5 in. x 11.5 in. x 4 in. and shall include wiremold knockouts on top/bottom and universal mounting hole pattern in rear
