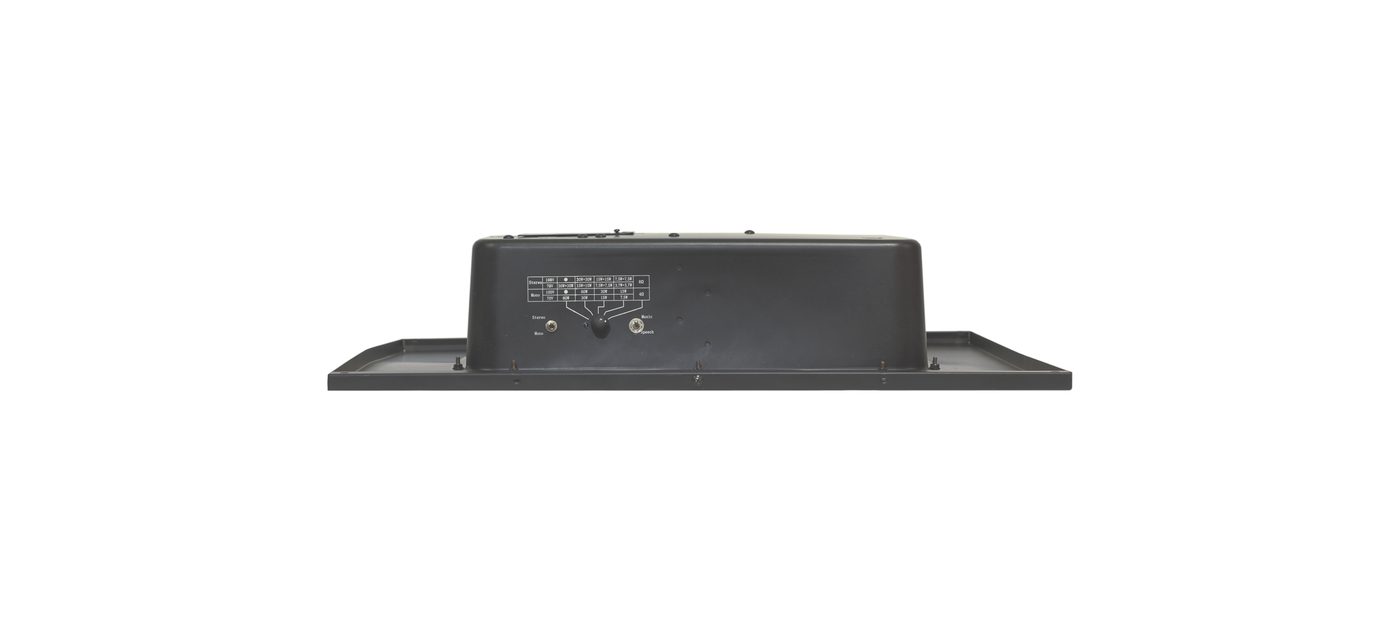

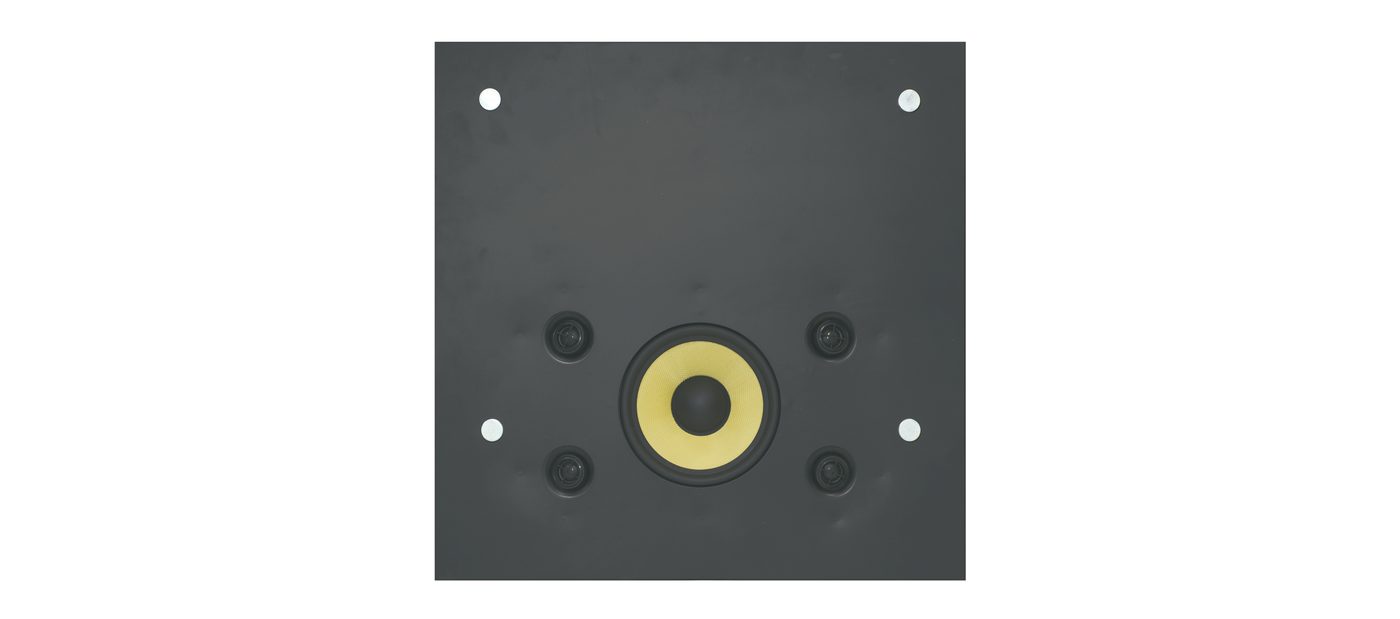

Kramer YARDEN 8-T 8-Inch, High-Performance, Ceiling Tile Stereo Speaker

The Kramer YARDEN 8-T is a 8-Inch, High-Performance, ceiling tile stereo speaker, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: Ceiling tile speaker (description); 65Hz to 20kHz @-10dB, 80Hz to 20kHz @+/-3dB (frequency response); 8" (200mm) Kevlar(R) with rubber surround (woofer). Also: Four 0.75" (20mm) pivoting titanium domes (tweeter); 8 ohm stereo, 4 ohm mono (transformer tap in off position) (impedance); Stereo: 70V - 3.75W/7.5W/15W/30W; 100V - 7.5W/15W/30W, Mono: 70V - 7.5W/15W/30W/60W; 100V - 15W/30W/60W (transformer taps); 87dB 1W @1m (sensitivity); Continuous: 102dB, peak: 105dB (max spl).

DESCRIPTION	Ceiling tile speaker
FREQUENCY RESPONSE	65Hz to 20kHz @-10dB, 80Hz to 20kHz @+/-3dB
WOOFER	8" (200mm) Kevlar(R) with rubber surround
TWEETER	Four 0.75" (20mm) pivoting titanium domes
IMPEDANCE	8 ohm stereo, 4 ohm mono (transformer tap in off position)
TRANSFORMER TAPS	Stereo: 70V - 3.75W/7.5W/15W/30W; 100V - 7.5W/15W/30W, Mono: 70V - 7.5W/15W/30W/60W; 100V - 15W/30W/60W
SENSITIVITY	87dB 1W @1m
MAX SPL	Continuous: 102dB, peak: 105dB
