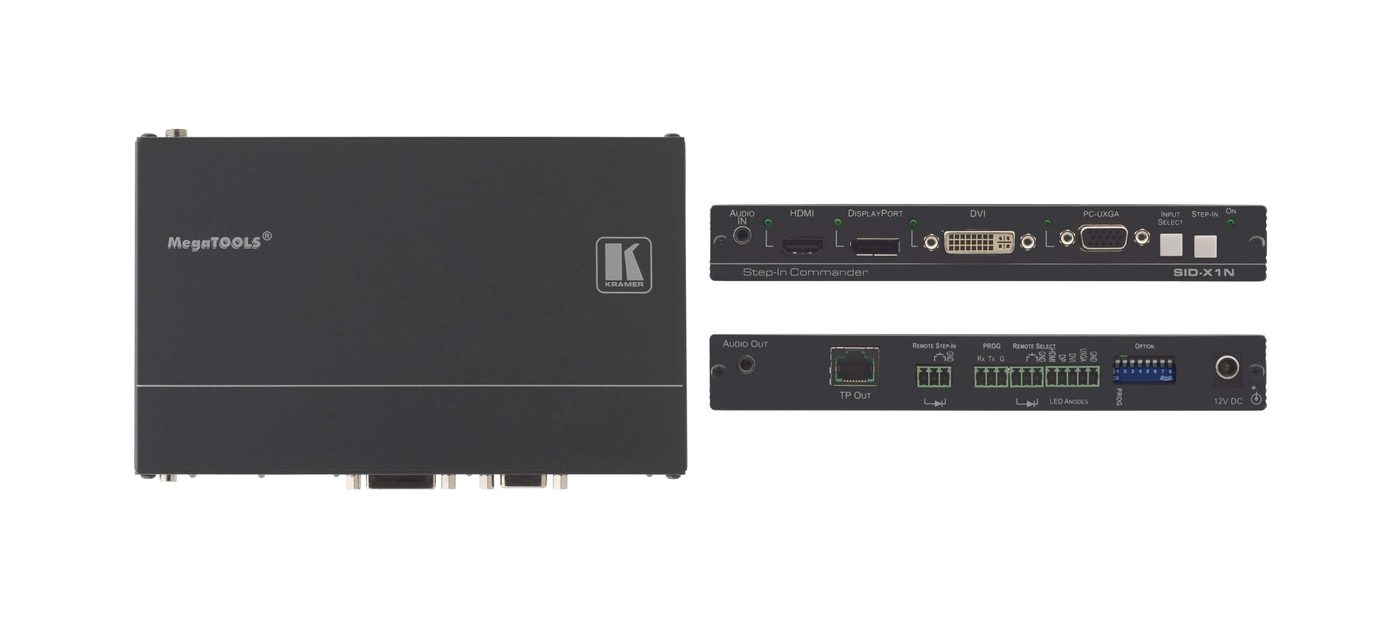

Kramer SID-X1N DisplayPort, HDMI, VGA and DVI Auto Switcher over DGKat

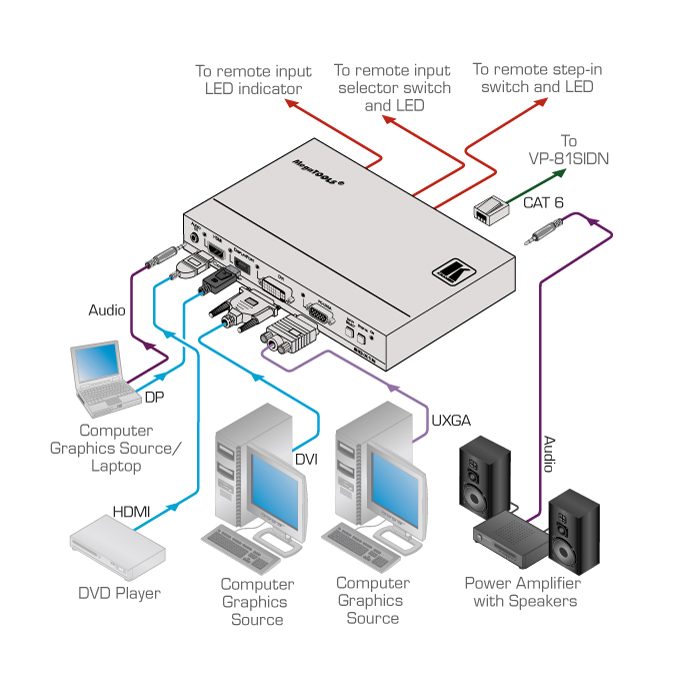

The SID-X1N sits at a table or lectern and auto-switches between HDMI, DVI, DisplayPort, and VGA (UXGA) inputs, so a presenter plugs in whatever laptop they brought without hunting for the right input button. Once selected, video and unbalanced stereo audio travel out over a single DGKat cable to a compatible switcher, simplifying the cable run compared to running each format back separately.

A local step-in button and contact closure give the presenter or an installer manual override when auto-switching is not enough, and it is designed to work with Kramer's VP-81SID step-in switcher on the receiving end. It requires an independent power supply and, with the optional RK-T2B universal rack adapter, two units mount side by side in a single 1U rack space.
