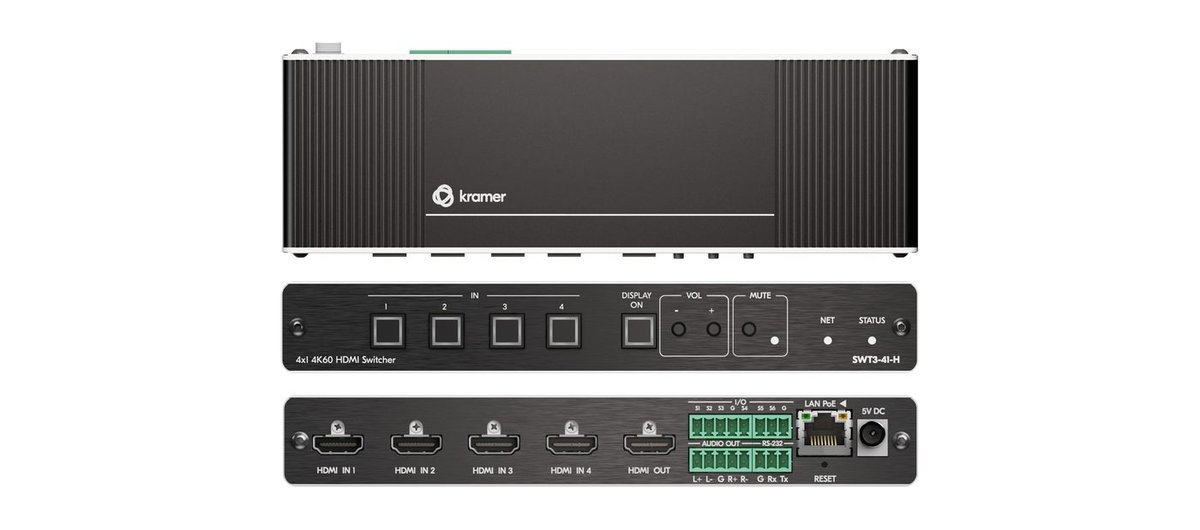

Name: Kramer SWT3-41-H 4x1 4K60 HDMI Switcher
Brand: Kramer
Price: 690.00 USD
Availability: InStock

The Kramer SWT3-41-H is an intelligent 4x1 automatic switcher for 4K60 4:4:4 HDMI video signals, with plug and play user experience such as priority or last-connected auto-switching based on active video signal detection, and easy remote IP-driven management and control.

Typical placements: Intelligent, high-quality auto switcher for any corporate or educational AV meeting solution; Controllable and manageable switching building-block for tailor-made meeting and training solutions. Automatically plays the switched source signal on the connected display according to user-configured preferences, such as priority or last-connected input. When the user manually switches, by pressing a button, the auto switching is overridden. HDCP 2.2 compliant, supporting deep color, x.v.Color™, CEC, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.

Inputs	4 HDMI: On a female HDMI connector
Outputs	1 HDMI: On a female HDMI connector; 1 Balanced Stereo Audio: On 5-pin terminal block connector
Ports	1 RS-232: On a 3-pin terminal block connector; 6 GPIO: On an 8-pin terminal block connector; 1 PoE-accepting Ethernet: On an RJ-45 connector
Video	Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel); Max Resolution: 4K@60Hz (4:4:4) resolution; Content Protection: HDCP 2.2; HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b
Power	Power Adapter: Source: 5V DC, 4A; Consumption: 0.82A; PoE Consumption: 120mA; Max. Power: 5.76W
Enclosure	Size: DemiTOOLS®; Type: Aluminum; Cooling: Convection ventilation
Environmental Conditions	Operating Temperature: 0° to +40°C (32° to 104°F); Storage Temperature: -40° to +70°C (-40° to 158°F); Humidity: 10% to 90%, RHL non-condensing
Product Dimensions	19.05cm x 5.96cm x 2.74cm (7.50" x 2.35" x 1.08" ) W, D, H
Product Weight	0.3kg (0.7lbs) approx.
