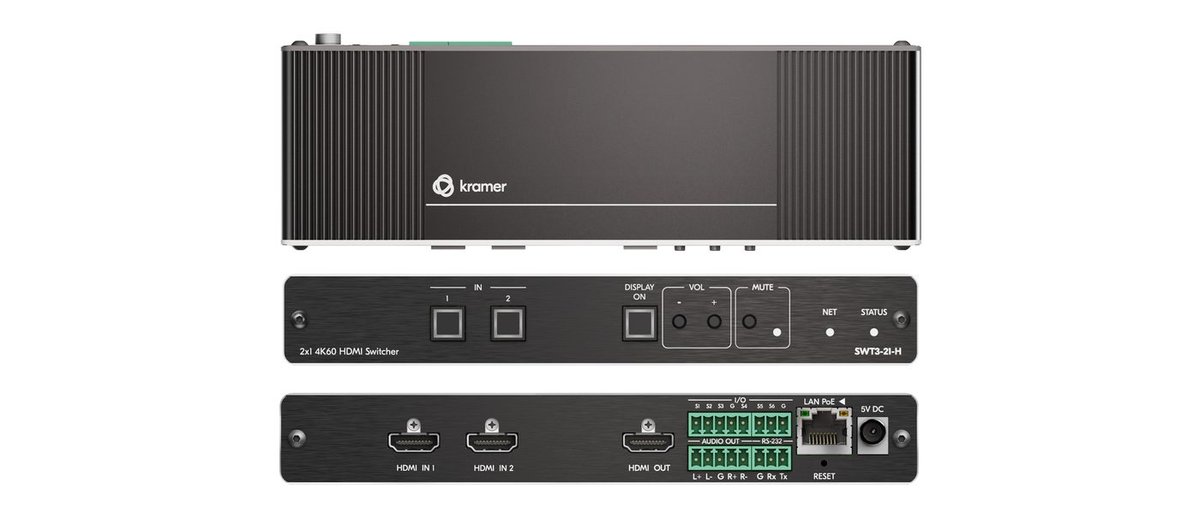

Kramer SWT3-21-H 2x1 4K60 HDMI Switcher
SWT3-21-H is an intelligent 2x1 automatic switcher for 4K60 4:4:4 HDMI video signals, with plug and play user experience such as priority or last-connected auto-switching based on active video signal detection, and easy remote IP-driven management and control.
Key features: Auto Switcher Ease of Use - Automatically plays the switched source signal on the connected display according to user-configured preferences, such as priority or last-connected input. When the user manually switches, by pressing a button, the auto switching is overridden; HDMI Signal Switching - HDCP 2.2 compliant, supporting deep color, x.v.Color™, CEC, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0; I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing, locking and pass-through algorithm ensures plug & play operation for HDMI source and display systems; Multi-channel Audio Switching - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound; Audio De-embedding - The digital audio signal passing-through to the HDMI output, is de-embedded, converted to an analog signal and sent to the stereo balanced analog audio output. This enables playing the audio on a locally connected professional audio system (such as DSP) and speakers, in parallel to playing it on the speakers connected to the AV acceptor device (such as TVs with speakers).

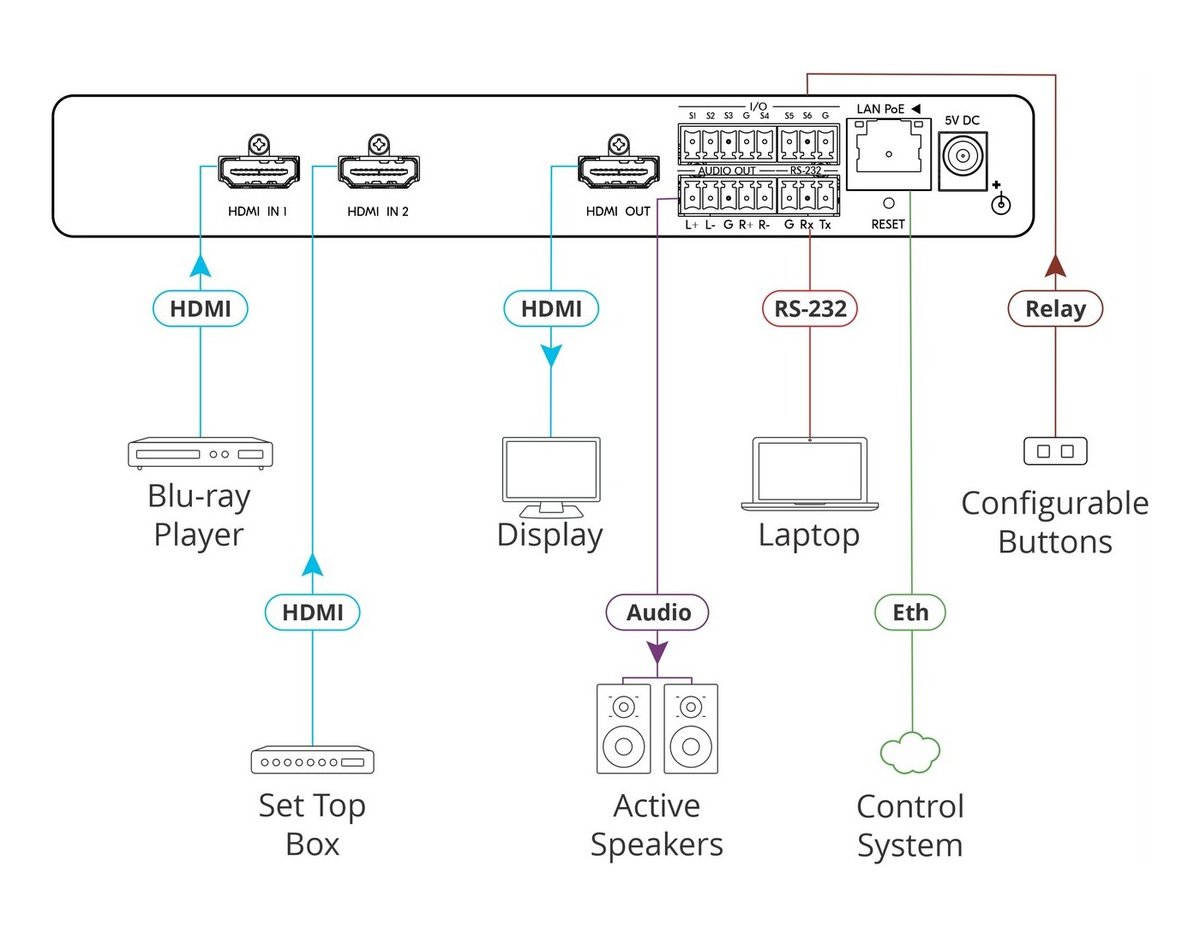

| Inputs | 2 HDMI: On a female HDMI connector |
|---|---|
| Outputs | 1 HDMI: On a female HDMI connector; 1 Balanced Stereo Audio: On 5-pin terminal block connector |
| Ports | 1 RS-232: On a 3-pin terminal block connector; 6 GPIO: On an 8-pin terminal block connector; 1 PoE-accepting Ethernet: On an RJ-45 connector |
| Line/Mic Level Input | test: Test |
| Video | Max Data Rate: 18Gbps bandwidth (6Gbps per graphic channel); Max Resolution: 4K@60Hz (4:4:4) resolution; Content Protection: HDCP 2.2; HDMI Support: Deep Color, 3D, HDR as specified in HDMI 2.0b |
| Power | Power Adapter: Source: 5V DC, 4A; Consumption: 0.53A; PoE Consumption: 90mA; PoE Max. Power: 4.32W |
| Enclosure | Size: DemiTOOLS®; Type: Aluminum; Cooling: Convection ventilation |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F); Storage Temperature: -40° to +70°C (-40° to 158°F); Humidity: 10% to 90%, RHL non-condensing |
| Regulatory Compliance (Standards Compliance) | Health, Safety, Environmental: RoHs, WEEE, CE |
| Product Dimensions | 19.05cm x 5.96cm x 2.74cm (7.50" x 2.35" x 1.08" ) W, D, H |
