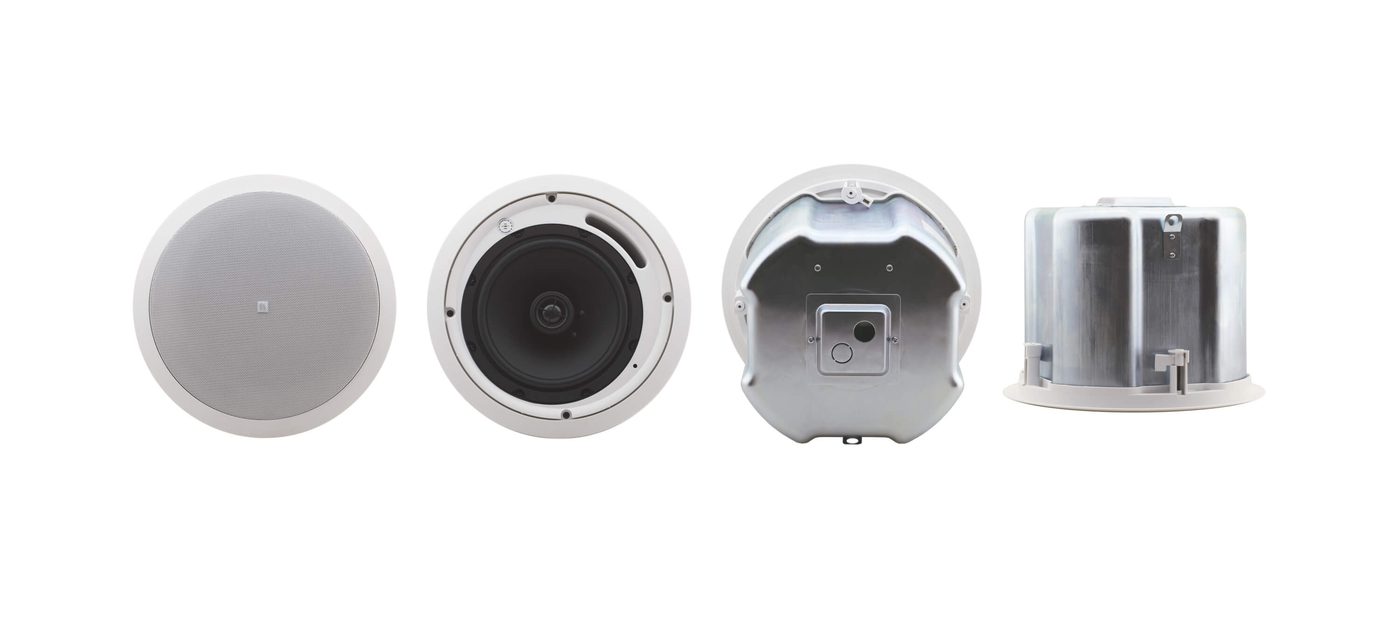

Kramer Galil 8-C 8-Inch Two-Way Closed-Back Ceiling Speakers (Pair)

The Galil 8-C is a closed-back ceiling speaker with an 8 inch polypropylene woofer and a 1 inch silk dome tweeter mounted coaxially, so the whole 110 degree pattern arrives from one point in the ceiling. The metal back can means it can go into a plenum without leaking sound into the space above, and it is UL 1480 and UL 2043 listed for that use.

A multi-tap transformer selects 70V taps at 64W down to 4W, 100V taps at 64W down to 8W, or bypasses the transformer entirely for an 8 ohm low-impedance run. That covers a paged distributed line in a restaurant and a short amplifier run in a boardroom with the same part number. It ships as a pair with the ceiling mounting kit, cutout template, and manual; cutout diameter is 27.3cm and it needs 22.6cm of mounting depth.

Type2-way closed-back ceiling speakers
Frequency Response65Hz to 20kHz @ -10dB, 85Hz to 20kHz @ +/-3dB
Woofer8" (200mm) polypropylene with rubber surround
Tweeter1" (25.4mm) silk dome
Impedance8 ohm (transformer tap in off position)
Transformer Taps70V: 64W/32W/16W/8W/4W/Off (Lo-Z); 100V: 64W/32W/16W/8W/Off (Lo-Z)
Sensitivity89dB SPL, 1W @1m
Max SPLContinuous 104dB, peak 107dB
Power Handling64W RMS, 180W continuous program
Crossover Frequency6.3kHz
Coverage Angle110 deg
Input ConnectorTerminal block
MaterialsABS bezel, aluminum grill, metal back can
Cutout Diameter27.3cm (10.75")
Mounting Depth22.6cm (8.9")
Weight4.9kg (10.8lbs) approx per speaker
ColorWhite
