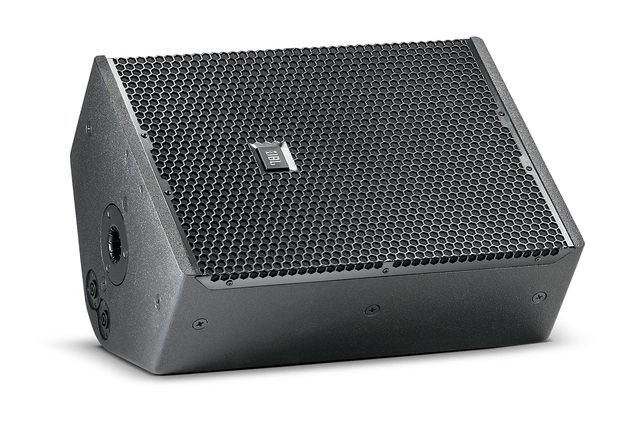

The VTX F12 is a 12-inch bi-amplified 2-Way system, from the VTX touring range. The low-frequency section uses 1 x 12" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive, Direct Cooled Transducer. High frequencies come from 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver. Transducers are 1 x 2262H 12" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive, Direct Cooled Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver. Nominal coverage is 90 x 50 degrees. Frequency range is 51 Hz - 21.5 kHz (short throw mode, free field) 44 Hz - 21.5 kHz (monitor mode, half-space).

The enclosure is Symmetrical stage monitor (53 degree angle); 18 mm, 11-ply Baltic birch plywood; black DuraFlex finish; integral recessed handle. It measures 548.6mm x 396.2mm x 304.8mm (21.6in x 15.6in x 12in). Net weight is 19.1 kg (42 lbs). Ordering covers Standard and Standard; pick the one you need above and the SKU and price follow your choice.

Type	12-inch Bi-Amplified 2-Way System
System Type	2-Way Multi-Purpose Loudspeaker with 12" Differential Drive Woofer and D2 Dual Driver
Components	1 x 2262H 12" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive, Direct Cooled Transducer 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Coverage Pattern	90 x 50 degrees
Frequency Range (-10dB)	51 Hz - 21.5 kHz (short throw mode, free field) 44 Hz - 21.5 kHz (monitor mode, half-space)
Frequency Response (+/-3 dB)	69 Hz - 20 kHz (short throw mode, free field) 58 Hz - 20 kHz (monitor mode, half-space)
Sensitivity	96 dB LF, 108 dB HF
Nominal Section Impedances	8 ohms LF, 20 ohms HF
Transducer Power Rating (AES 2 hour)	1000W LF, 200W HF cont 4000W LF, 800W HF peak
