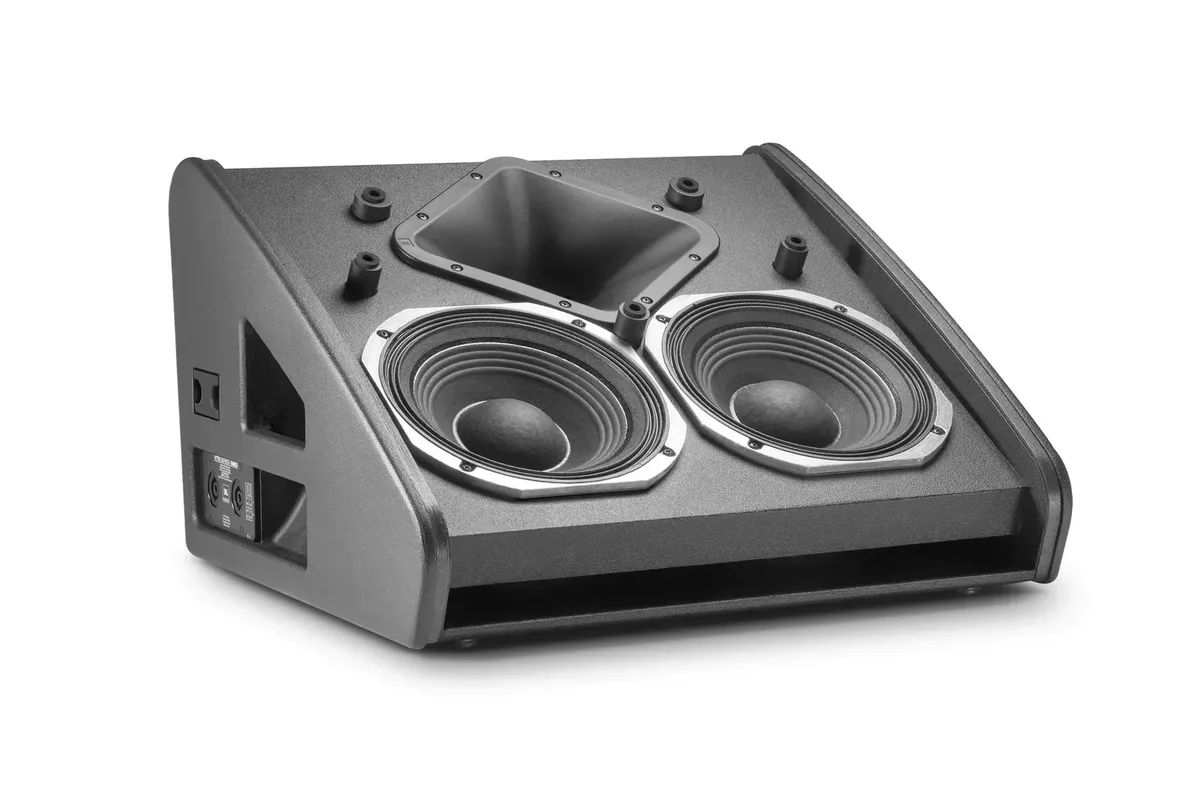

JBL VTX M20 Dual 10-inch Professional Stage Monitor

The VTX M20 is a dual 10-inch professional stage monitor, from the VTX touring range. The low-frequency section uses 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD, Direct Cooled. High frequencies come from 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil. Frequency range is 55 Hz - 19.5 kHz. Maximum SPL at 1 m is 136dB (Preset: VTX M20 FR). Nominal impedance is Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms.

The enclosure is 18 mm, 11-ply Finnish birch plywood. The grille is Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing. Connections are Passive: Neutrik Speakon NL-4 (4x): Selectable: Pins 1 +/- or Pins 2 +/- Active: Neutrik Speakon NL-4 (4x): Pins 1 +/- (LF) | Pins 2 +/- (HF). It measures 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in). Net weight is 23 kg (51 lbs).
