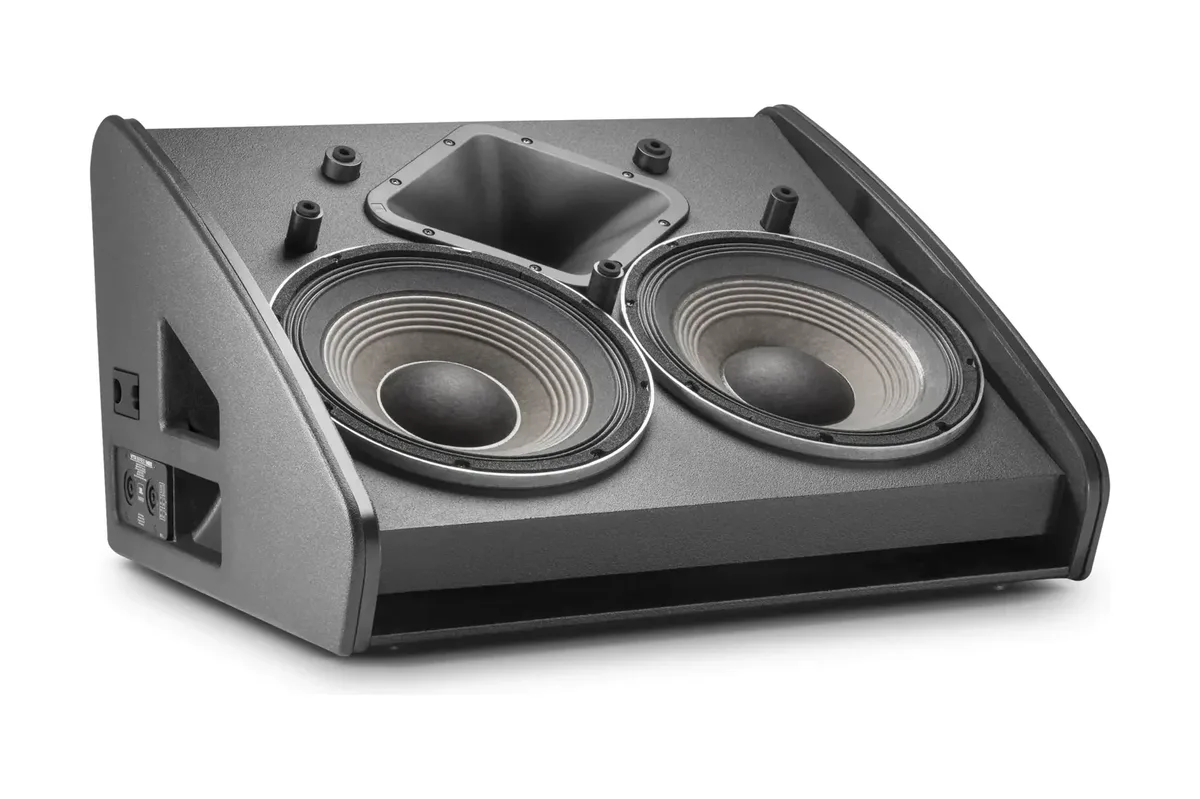

JBL VTX M22 Dual 12-inch Professional Stage Monitor

The VTX M22 is a dual 12-inch professional stage monitor, from the VTX touring range. The low-frequency section uses 2 x 2262H, 304 mm (12 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD, Direct Cooled. High frequencies come from 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil. Frequency range is 45 Hz - 19.5 kHz. Maximum SPL at 1 m is 138 dB (Preset: VTX M22 FR). Nominal impedance is Passive: 4 ohms Active LF: 4 ohms Active HF: 8 ohms.

The enclosure is mm, 11-ply Finnish birch plywood. The grille is Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing. Connections are Passive: Neutrik Speakon NL-4 (4x): Selectable: Pins 1 +/- or Pins 2 +/- Active: Neutrik Speakon NL-4 (4x): Pins 1 +/- (LF) | Pins 2 +/- (HF). It measures 380 mm x 671 mm x 555 mm (15 in x 26.4 in x 21.8 in. Net weight is 27 kg (60 lbs).
